Siemens ED63A100 Motor Circuit Protector
- 100A
- 3 Pole
- Bolt-On
Siemens
ED63A100
Motor Circuit Protector
Brand
Siemens
SKU
ED63A100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

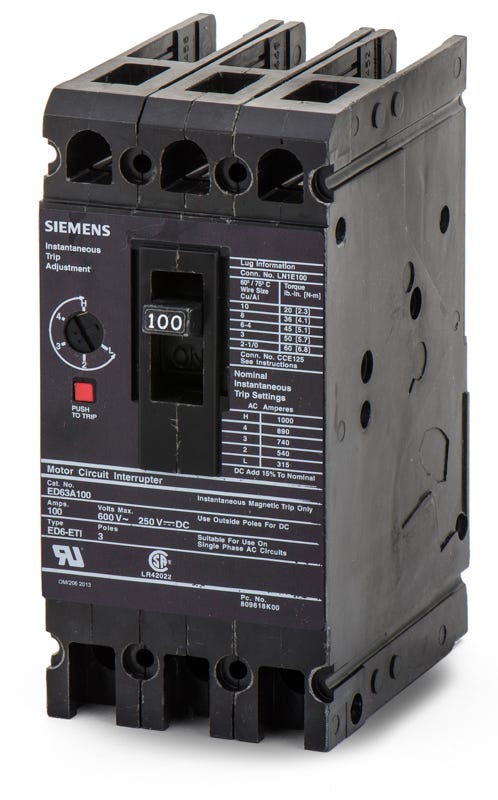

Siemens ED63A100 - 100A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens ED63A100 - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63A100 |
| Series | ED6 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 315-1000A |
|---|
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Combination Motor Starters |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
