Siemens EH2B100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
EH2B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
EH2B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

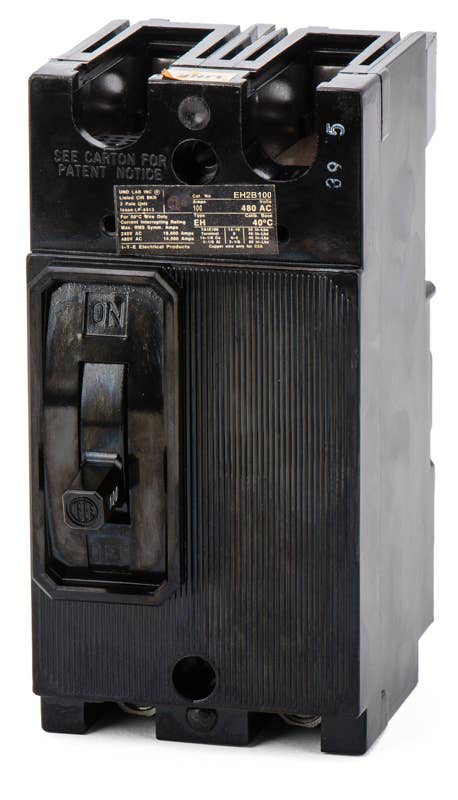

Siemens EH2B100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens EH2B100 provides robust overcurrent and short-circuit protection. This 2-pole, 100A molded case circuit breaker features a bolt-on mounting style for secure connections. It mounts into Siemens P1, P2, P3, and legacy ITE panelboards, making it an essential component for maintaining older infrastructure. Rated at 14 kAIC at 480VAC, it utilizes fixed thermal and magnetic trip functions. It is replaced by the newer ED42B100 model.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EH2B100 |
| Series | EH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the EH2B100 circuit breaker?
This bolt-on breaker is compatible with Siemens P1, P2, and P3 panelboards. It is also backward compatible with legacy ITE panelboard enclosures.
What is the modern replacement for the legacy EH2B100?
The EH2B100 is a legacy E-frame breaker. For new installations or direct replacements, it has been superseded by the Siemens ED42B100 molded case circuit breaker.
What are the conductor requirements for the EH2B100 lugs?
The factory-installed load lugs accept wire sizes from 14 AWG to 1/0 AWG. They are dual-rated for terminating either copper or aluminum conductors.
Is the EH2B100 suitable for direct current (DC) systems?
Yes, the breaker is rated for DC applications up to 250VDC, where it delivers a 10 kAIC interrupting rating.
How does the trip unit operate on the EH2B100?
The breaker utilizes a non-interchangeable thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. This provides standard Long-Time and Instantaneous (LI) protection against overloads and short circuits.
