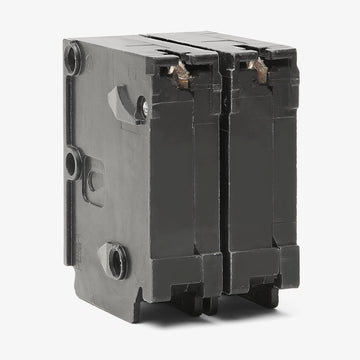

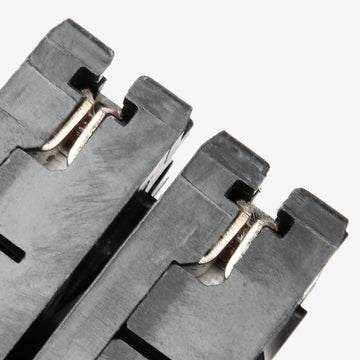

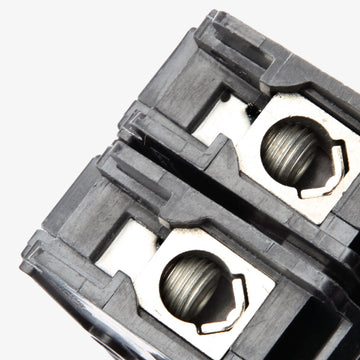

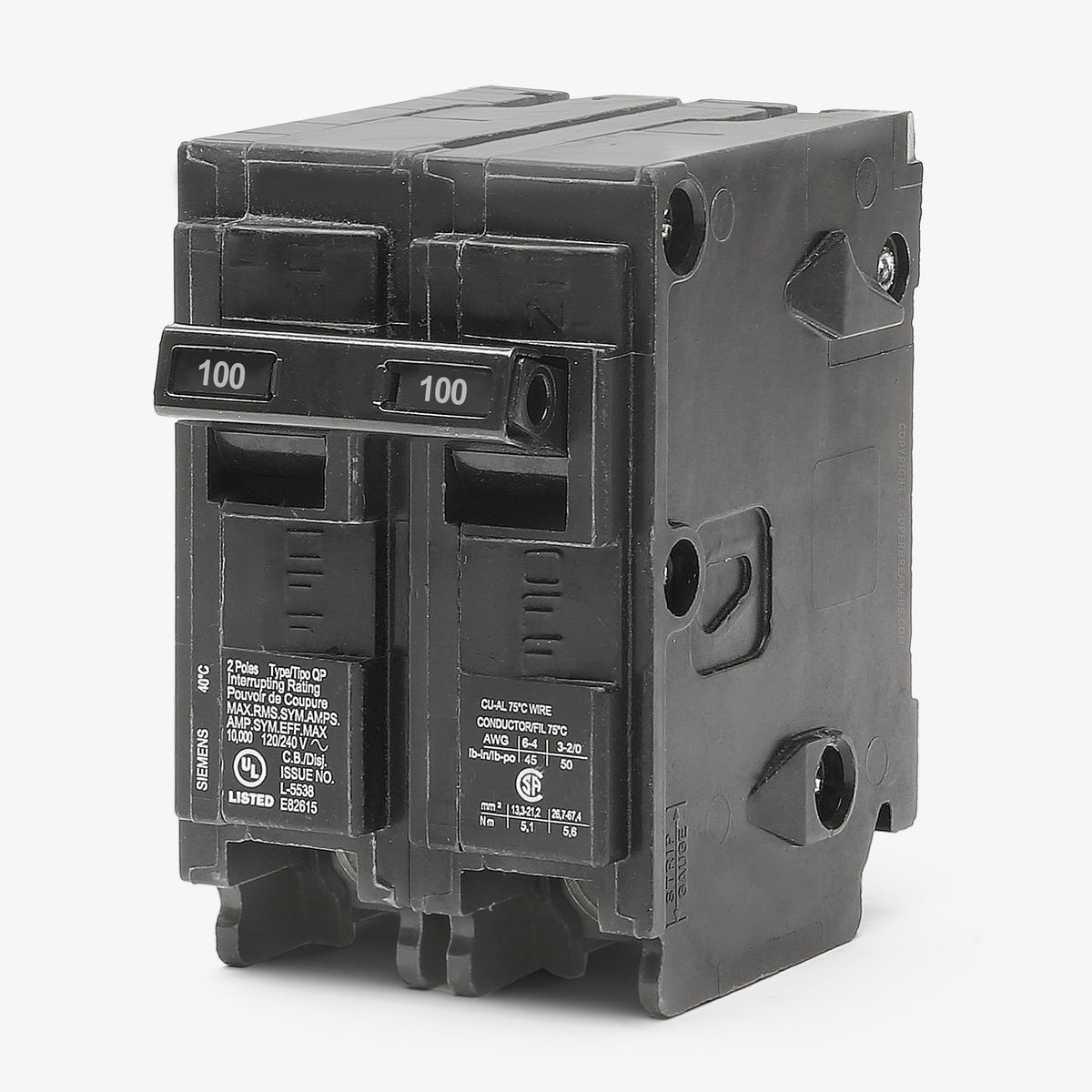

Siemens Q2100H Miniature Circuit Breaker
- 100A
- 2 Pole
- Plug-On
Siemens
Q2100H
Miniature Circuit Breaker
Brand
Siemens
SKU
Q2100H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q2100H - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Providing enhanced short-circuit defense, this 100-amp Type QPH component serves applications requiring higher fault tolerances. The thermal-magnetic mechanism delivers reliable overload protection. Designed for broad compatibility, the unit installs into Siemens EQ, PL, ES, and Ultimate load centers. It also serves as a verified substitute for legacy Murray MP2100H components. With a 22kAIC rating at 120/240V, the device features common trip functionality and HACR certification.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q2100H |
| Series | QPH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers, EQ Load Centers, PL Load Centers, ES Load Centers, Ultimate Load Centers |
| Wire Gauge | 8-2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
6 answersWhat panels accept the Q2100H?
The Q2100H is compatible with Siemens EQ, PL, ES, and Ultimate load centers. It is also a verified replacement for use in legacy Murray load centers.
Can I use the Q2100H to replace a Murray MP2100H?
Yes. Siemens acquired Murray and phased out the Murray brand. The Siemens Q2100H is the exact, manufacturer-approved replacement for the legacy Murray MP2100H.
What is the difference between the Siemens Q2100 and Q2100H?
The primary difference is the short-circuit interrupting rating. The standard Q2100 is rated for 10kAIC, while the Q2100H is rated for 22kAIC to handle higher fault currents.
Do I need a hold-down kit to use the Q2100H as a back-fed main breaker?
Yes. If you are installing the Q2100H as a back-fed main breaker in a compatible Siemens or Murray load center, the National Electrical Code requires a hold-down kit, such as the Siemens ECMBR2.
Does the Q2100H feature Insta-Wire?
Yes, this breaker features Siemens Insta-Wire technology. The terminal screws come pre-backed out from the factory, allowing for immediate wire insertion and faster installation.
Is the Q2100H HACR rated?
Yes, the Q2100H is HACR certified, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific protection rating.
