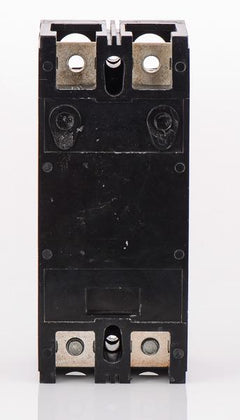

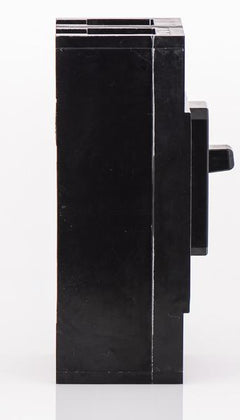

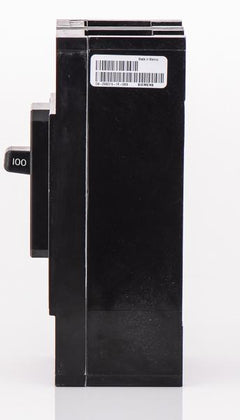

Siemens QJ22B100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
QJ22B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens QJ22B100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B100 |
| Series | QJ |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens QJ22B100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B100-R |
| Series | QJ |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
110A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the Siemens QJ22B100 is a 2-pole, 100-amp molded case circuit breaker. It provides standard thermal-magnetic protection for industrial electrical systems. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards, switchboards, and enclosures. Note that this QJ-frame model has been replaced by the QR22B100, which requires a specific mounting kit for installation in older panels. Rated at 10kAIC at 240VAC, it features fixed LI trip functions.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B100-R |
| Series | QJ |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards, Enclosures |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich Siemens panelboards are compatible with the QJ22B100 circuit breaker?
This bolt-on molded case circuit breaker is designed for installation in Siemens P1, P2, and P3 commercial panelboards, as well as compatible switchboards and enclosures. It is not intended for standard residential plug-on load centers.
What is the direct replacement for the discontinued QJ22B100?
The Siemens QR22B100 is the modern direct replacement for this breaker. The QR frame shares the same form and fit but may require a specific mounting kit or deadfront plate adjustment when retrofitting into older P4, P5, or switchboard applications.
Does Siemens offer this 100A breaker with a higher interrupting rating?
Yes. The standard QJ22B100 provides a 10kAIC rating at 240VAC. If your fault current calculations require a higher rating, you can use the QJH22B100 for 22kAIC or the QJ22B100H for 42kAIC.
Can I field-install internal accessories like auxiliary switches or shunt trips on the QJ22B100?
No. Internal accessories for the legacy QJ frame are factory-installed only and cannot be added in the field. If you require field-installable internal accessories, you must upgrade to the newer QR frame equivalent.
Is the QJ22B100 suitable for use on 480V or 277V systems?
No. This breaker is strictly rated for a maximum of 240VAC. Applying it to 480V or 277/480V systems violates its UL listing and creates a severe safety hazard.
What type of protection is provided by the LI trip function?
The LI designation indicates Long-Time and Instantaneous trip functions. This provides standard fixed thermal-magnetic protection, where the thermal element handles gradual overloads and the magnetic element responds immediately to high-level short circuits.
Can the QJ22B100 be reverse fed?
Yes. This breaker is reverse feed capable, meaning it can be safely backfed in applications where power enters through the load side terminals.
