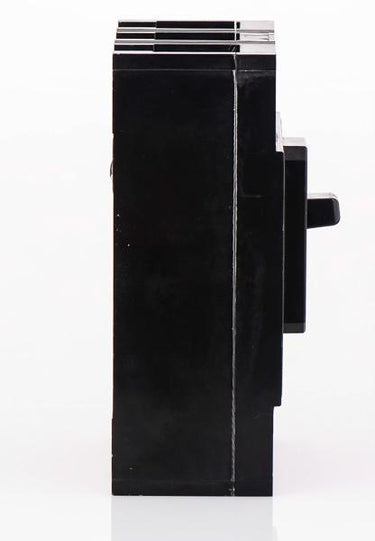

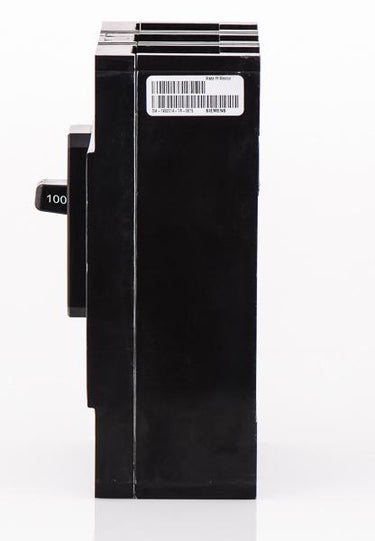

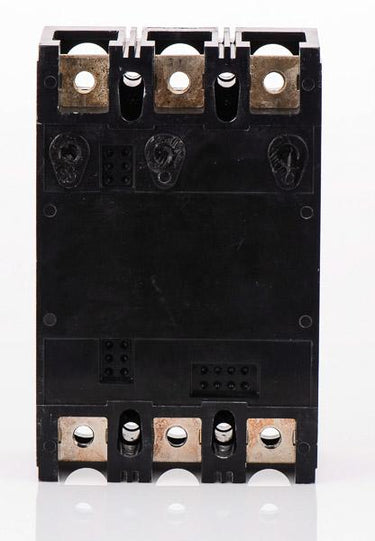

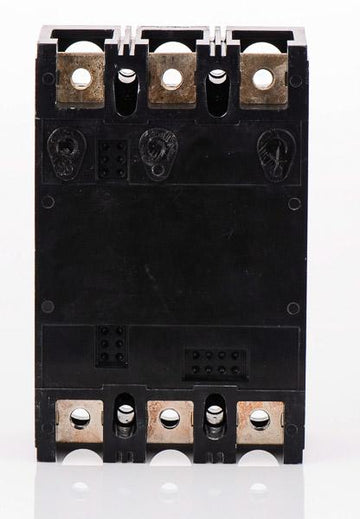

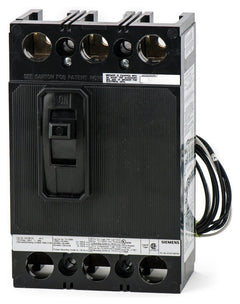

Siemens QJ23B100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Siemens
QJ23B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ23B100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B100 |
| Series | QJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens QJ23B100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B100-R |
| Series | QJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
110A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Designed to safeguard commercial systems, the Siemens QJ23B100 is a 100A, 3-pole MCCB. It features a non-interchangeable LI trip unit for precise overload and short-circuit response. Equipped with a bolt-on connection, it integrates into Siemens P1, P2, and P3 panelboards. As part of the legacy QJ family, this model is replaced by the QR23B100 for modern retrofits. This 240VAC breaker provides a 10kAIC rating, includes load lugs, and is HACR certified.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B100 |
| Series | QJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan I replace a legacy ITE QJ23B100 with this Siemens model?
Yes. Siemens acquired the ITE product line, making this breaker a direct form and fit replacement for older ITE or Gould QJ23B100 models in existing switchboards and panelboards.
What is the modern equivalent if I am upgrading from the QJ series?
The Siemens QR23B100 is the current replacement for the legacy QJ frame. When retrofitting, you will likely need a cover plate kit from Siemens to properly adapt the panelboard deadfront from the QJ to the new QR series.
Is the QJ23B100 suitable for reverse feed applications?
Yes. Standard Siemens QJ breakers feature a fixed, non-interchangeable thermal-magnetic trip unit, making them safely suitable for reverse feeding in compliance with UL 489 standards.
Does this breaker require a separate lug kit?
No, the mechanical load lugs are factory installed and ready for terminating properly sized copper or aluminum conductors. Always apply the specific tightening torque printed on the breaker faceplate.
Is this circuit breaker approved for HVAC equipment?
Yes, it is HACR rated. This certifies the breaker can safely handle the unique inrush currents of heating, air conditioning, and refrigeration compressors without nuisance tripping.
What is the standard ambient temperature rating for this breaker?
The QJ23B100 is calibrated for operation at 40 degrees Celsius (104 degrees Fahrenheit). Any installation in an environment exceeding this temperature limit requires proper ampacity derating.
