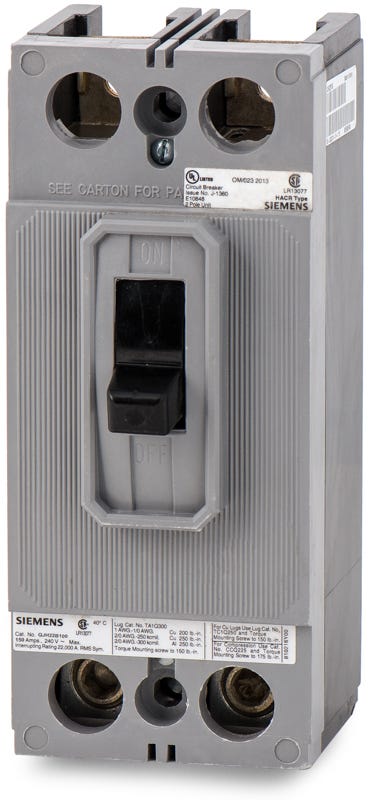

Siemens QJH22B100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Siemens
QJH22B100
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJH22B100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJH22B100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QJH22B100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B100 |
| Series | QJH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Siemens QJH22B100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJH22B100-R |
| Series | QJH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Operating at 100 amps, the Siemens QJH22B100 is a 2-pole molded case circuit breaker for commercial distribution. It features a QJ frame with fixed thermal-magnetic trip units for dependable protection. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards and SB switchboards. This legacy model is superseded by the QRH22B100 for newer installations. It provides a 22kAIC rating at 240VAC, is HACR rated, and supports reverse feed applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJH22B100 |
| Series | QJH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers, Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TA1Q300) |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the H in the QJH22B100 catalog number indicate?
The H designates this as a high interrupting QJH2 type breaker with a 22kAIC rating at 240V. Standard QJ2 breakers without the H have a lower 10kAIC rating.
Which Siemens panelboards are compatible with the QJH22B100 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as SB switchboards, motor control centers, and meter centers.
What wire sizes and materials are accepted by the lugs on the QJH22B100?
The factory lugs accept copper wire from 6 AWG up to 300 kcmil, and aluminum wire from 4 AWG up to 300 kcmil.
Can the Siemens QJH22B100 replace older ITE brand breakers with the same catalog number?
Yes. Siemens acquired ITE and continued manufacturing the QJ frame. The Siemens QJH22B100 is a direct replacement for older ITE QJH22B100 breakers.
Are the thermal and magnetic trip settings adjustable on this breaker?
No. The QJH22B100 features fixed thermal and fixed magnetic trip functions. The long time and instantaneous trip points cannot be adjusted in the field.
Is this 2-pole breaker suitable for single-phase applications?
Yes. The QJH22B100 is a 2-pole, 240VAC breaker specifically designed for single-phase electrical systems.
