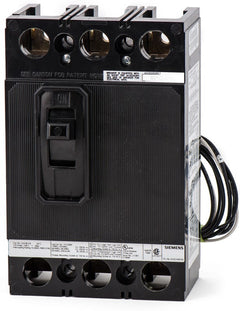

Siemens E1SQJ23B20000S01 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Siemens
E1SQJ23B20000S01
Molded Case Circuit Breaker
Brand
Siemens
SKU
E1SQJ23B20000S01
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens E1SQJ23B20000S01 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Siemens E1SQJ23B20000S01 is a complete, factory-assembled enclosed circuit breaker. It features a NEMA 1 surface-mount enclosure housing a 200A, 3-pole QJ frame molded case breaker. This unit includes a factory-installed 120/240VAC shunt trip and load-side lugs, streamlining installation for service entrance protection. It replaces legacy QR2N1 and QR23B200 configurations. Rated 10 kAIC at 240VAC, it delivers reliable thermal-magnetic (LI) protection.Specifications
| Brand | Siemens |
|---|---|
| Series | QJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Service Entrance, Individual Circuits |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Line and Load Lugs |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
| Special Features | Factory Enclosed |
Product FAQs
7 answersWhat types of panelboards are compatible with the E1SQJ23B20000S01 breaker?
This QJ frame breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and meter centers.
Is this breaker a direct replacement for the standard QJ23B200?
Yes, the E1SQJ23B20000S01 shares the exact same QJ frame footprint, 200A rating, and bolt-on mounting as the standard QJ23B200, making it a direct replacement for commercial distribution equipment.
Can I use a QR frame breaker to replace this QJ frame model?
Yes, the newer Siemens QR frame (such as the QR23B200) was designed as the direct replacement for the legacy QJ frame. Both frames share the same form factor and mounting dimensions for easy retrofitting.
Does this breaker require a specific mounting kit for panelboard installation?
Yes, when installing in Siemens P1, P2, or P3 panelboards, QJ frame breakers require specific strap kits or mounting hardware. The exact kit depends on whether the breaker is single-mounted or twin-mounted in the panel.
Are the trip settings adjustable on this circuit breaker?
No, the E1SQJ23B20000S01 features a fixed thermal-magnetic trip unit with non-interchangeable long-time and instantaneous trip functions.
Is the E1SQJ23B20000S01 suitable for reverse feed applications?
Yes, Siemens QJ frame breakers support reverse feed applications and are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can I install this QJ frame breaker in a panelboard from a different manufacturer?
No. To maintain the UL listing and ensure safe operation, Siemens QJ frame breakers must only be installed in Siemens or legacy ITE panelboards that are specifically labeled to accept them.
