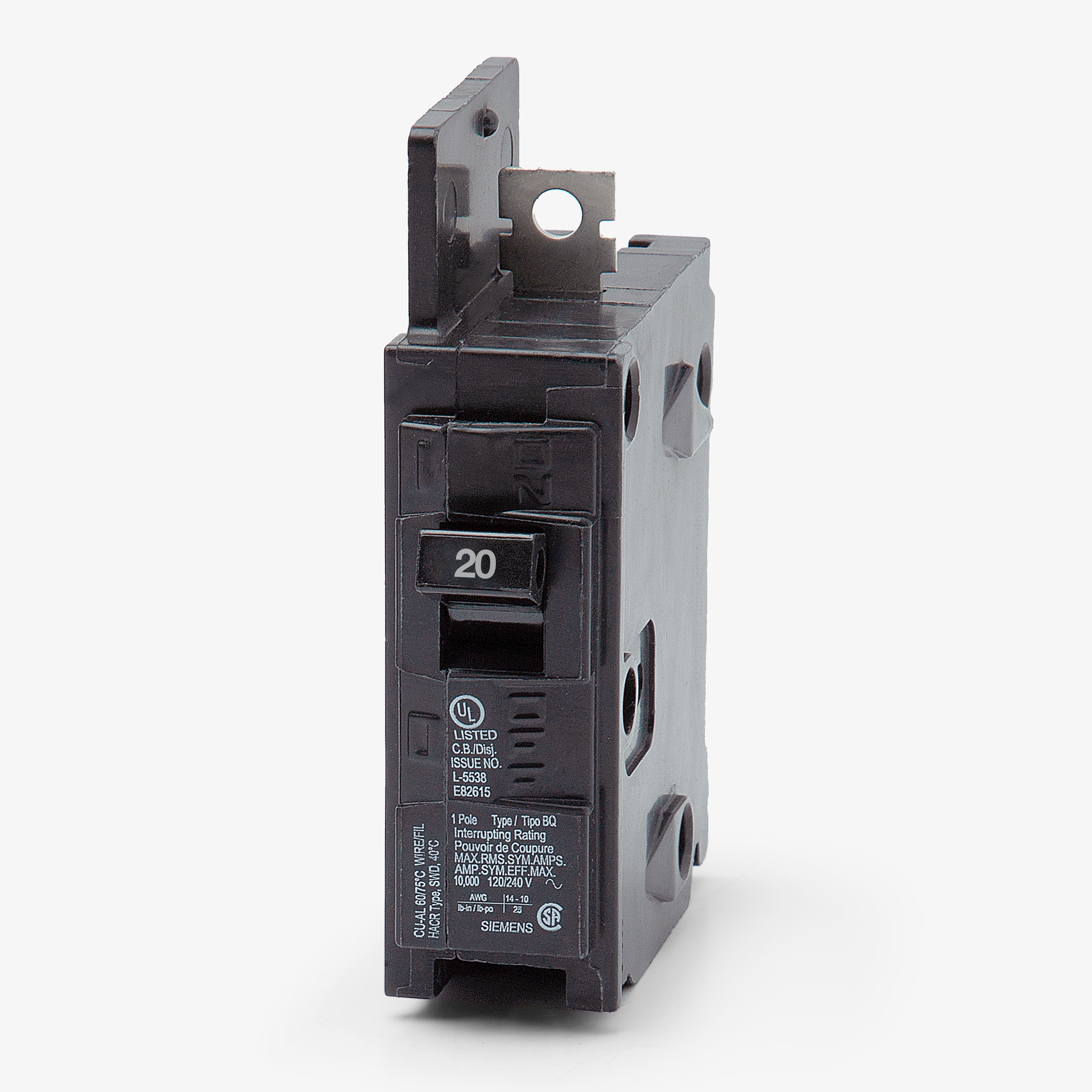

Siemens BQ1B020 - 20A 1 Pole Molded Case Circuit Breaker

New

$14.64 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
The BQ1B020 is a 1-pole, 20A molded case circuit breaker engineered for commercial power distribution. It delivers reliable thermal-magnetic trip protection with a 10kAIC rating at 120/240VAC. This bolt-on breaker installs securely into Siemens P1, P2, and P3 panelboards. It comes equipped with load side lugs and accepts 14-6 AWG copper or 12-6 AWG aluminum wiring for flexible installation. This BQ frame breaker is SWD, HID, and HACR rated, making it suitable for lighting and HVAC loads.

Specifications

Brand Siemens
Series BQ
Part Number BQ1B020
Amperage 20A
Voltage 120/240VAC
Poles 1
Phase 1
AIC Rating 10kA @ 120/240VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-6 AWG (Cu), 12-6 AWG (Al)
Max Wire 6 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie
Accessories Load Side Lugs
Standards CSA C22.2 No. 5, HACR Rated, HID Rated, SWD Rated, UL 489
Approval CSA, HACR, HID, SWD, UL
Temp Rating 40C
