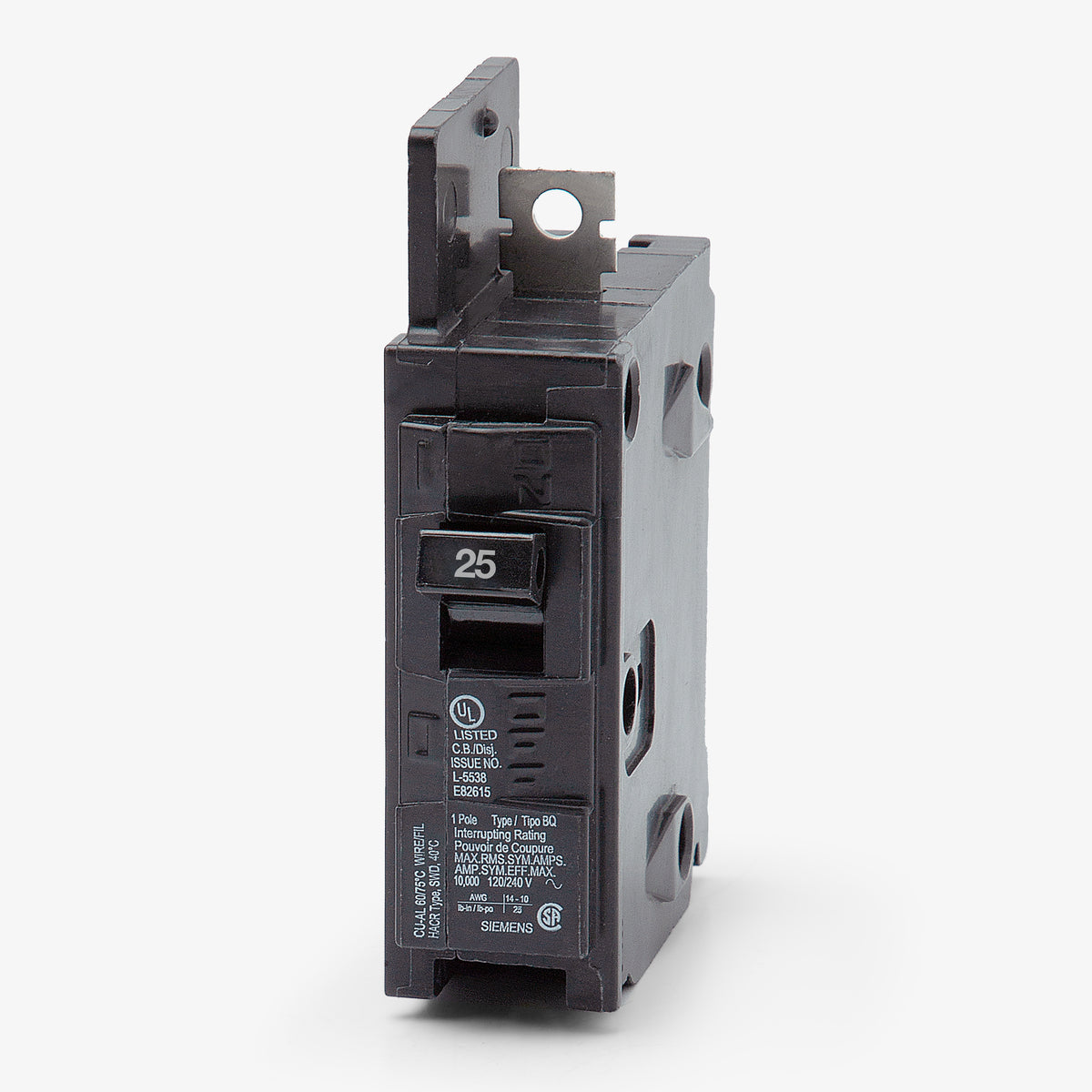

Siemens BQ1B025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Siemens
BQ1B025
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQ1B025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BQ1B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens BQ1B025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B025 |
| Series | BQ |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens BQ1B025 - 25A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | BQ1B025-R |
| Series | BQ |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Serving as a reliable overcurrent safeguard, this 25-amp single-pole unit is engineered for commercial and industrial applications. It bolts seamlessly into standard Siemens distribution panels to maintain a rigid, vibration-resistant electrical connection. Carrying a 10kAIC rating at 120/240VAC, the device is fully HACR and HID rated to accommodate specialized lighting and HVAC equipment. The fixed thermal-magnetic trip mechanism ensures precise fault response.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQ1B025 |
| Series | BQ |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BQ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhat type of panelboards accept the Siemens BQ1B025?
This bolt-on circuit breaker is designed for use in compatible Siemens electrical distribution panels and load centers that accept BQ-frame breakers.
Is there a plug-in equivalent to the BQ1B025?
Yes. The BQ series features a bolt-on connection. If your panel requires a plug-in connection, the Siemens QP series, such as the Q125, is the standard plug-in equivalent for 1-pole, 25-amp applications.
Is the Siemens BQ1B025 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection.
Can this breaker be used for High Intensity Discharge (HID) lighting?
Yes, the BQ1B025 is HID rated, allowing it to safely switch and protect circuits feeding high-intensity discharge lighting systems.
