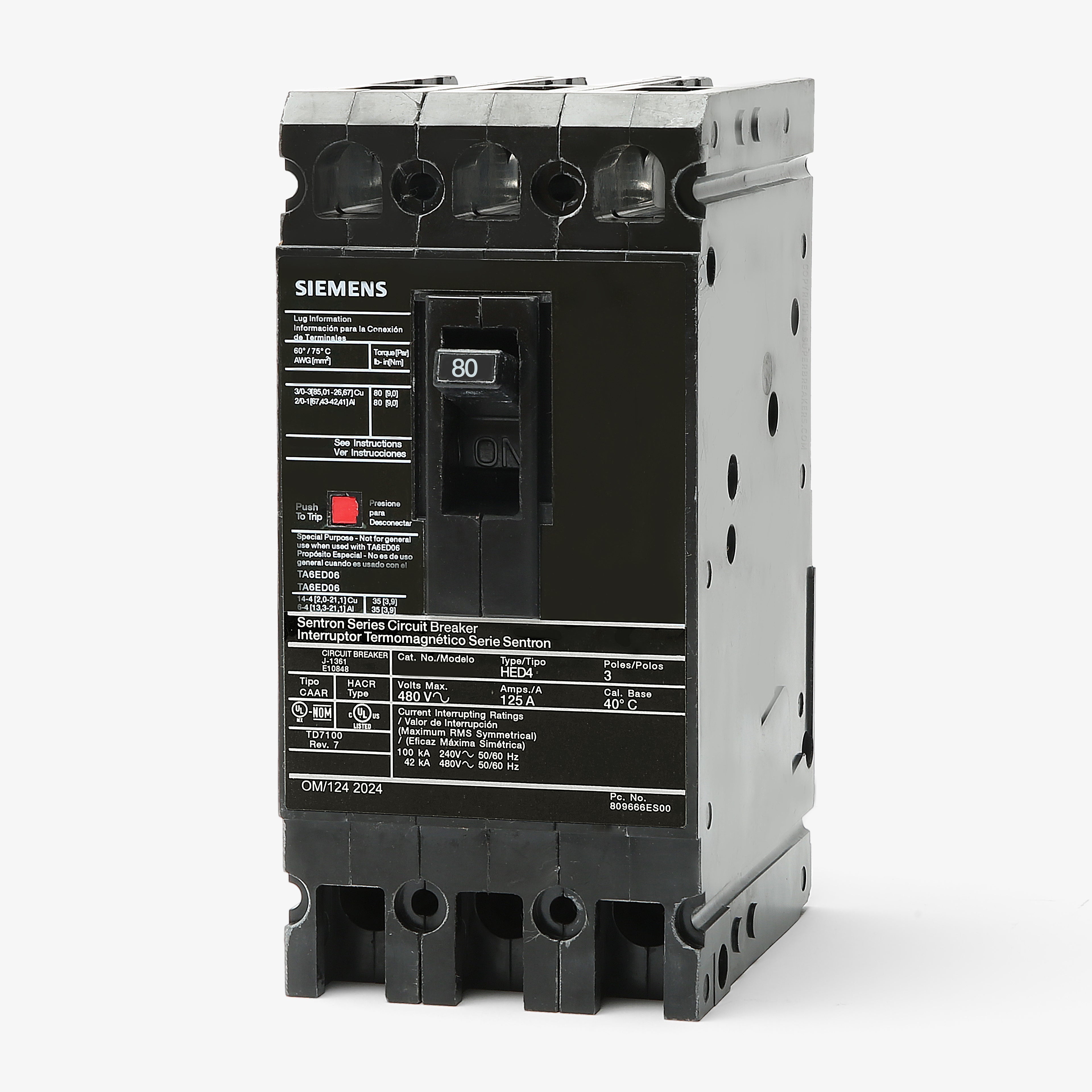

Siemens HHED63B080 - 80A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HHED63B080
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Siemens HHED63B080 - 80A 3 Pole Molded Case Circuit Breaker

Brand Siemens
SKU HHED63B080
Select Item Condition
Earn 979 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Siemens HHED63B080 - 80A 3 Pole Molded Case Circuit Breaker

Re-Certified

$979.98 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for industrial environments, this 80A molded case breaker delivers extra-high interrupting capacity and reliable thermal-magnetic trip functions. The bolt-on configuration integrates seamlessly into Siemens Sentron panelboards, switchboards, and motor control centers. Featuring a 65kAIC rating at 480VAC, the HACR-rated ED-frame device includes load-side lugs. For future upgrades, this model crosses over to the 3VA5180-6ED31-0AA0 when paired with the appropriate retrofit hardware.

Specifications

Brand Siemens
Series HHED6
Part Number HHED63B080-R
Amperage 80A
Voltage 600VAC, 250VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 250VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Siemens Sentron Panelboards, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 10-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 10 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields
Accessories Load Side Lugs Included (LN1E100)
Standards CSA C22.2 No. 5, NEMA AB-1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, Extra High Interrupting Capacity, Non-Interchangeable Trip
