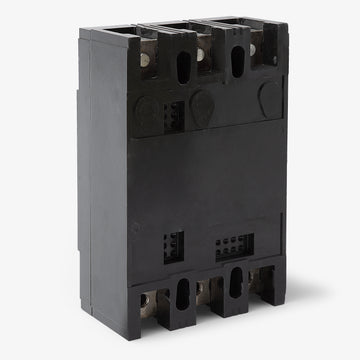

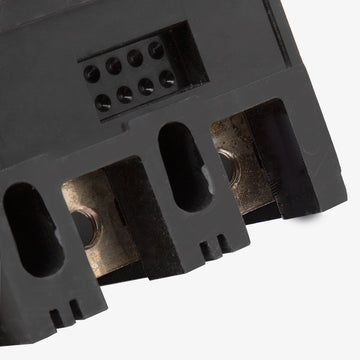

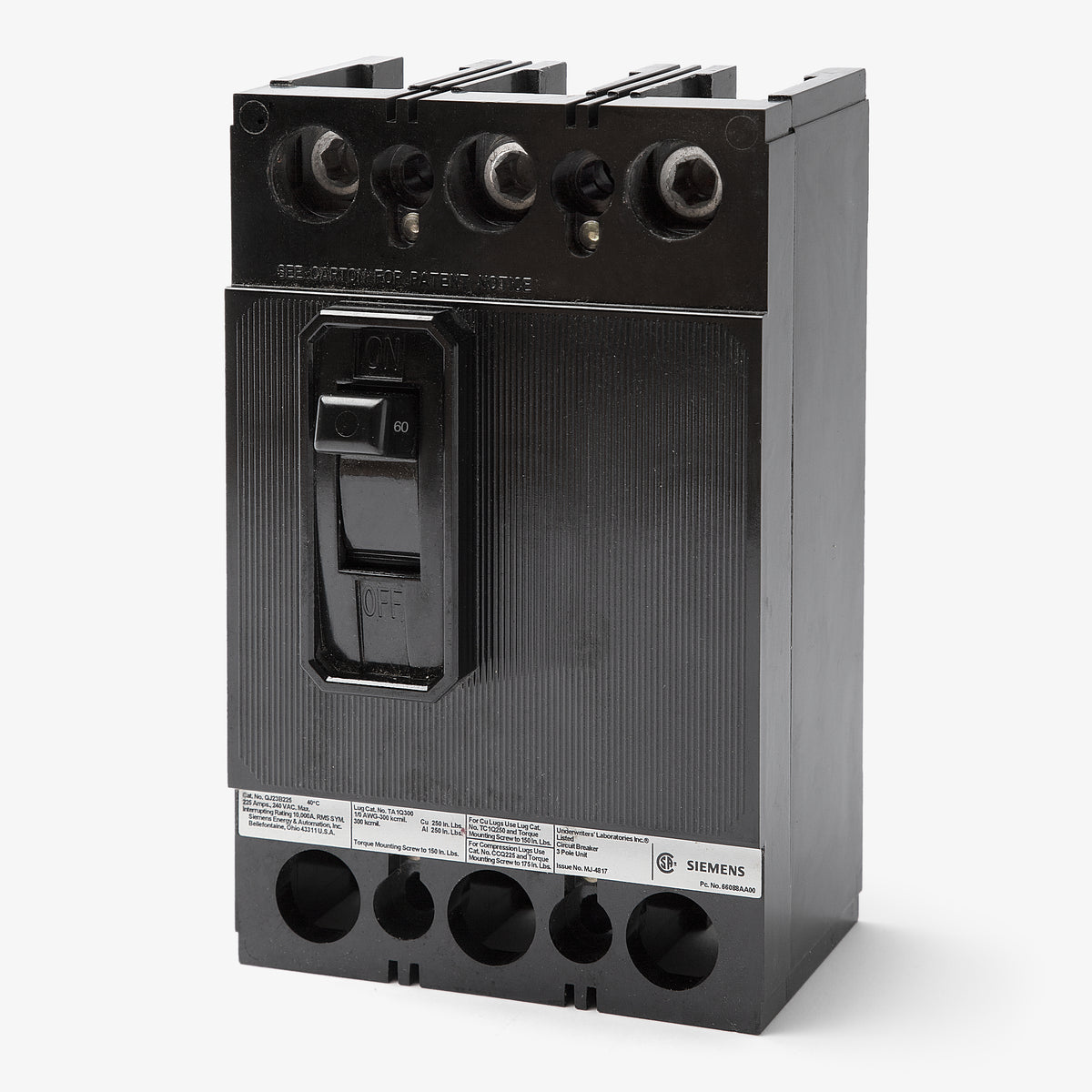

Siemens QJ23B060L Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Siemens
QJ23B060L
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B060L - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens QJ23B060L is a 3-pole, 60A molded case circuit breaker from the SENTRON family. It provides dependable overcurrent protection for demanding electrical distribution systems. This unit-mount MCCB installs into Siemens P1, P2, and P3 panelboards, as well as compatible meter centers. It features included line and load lugs for straightforward wiring. Rated for 10kAIC at 240VAC, it utilizes fixed thermal-magnetic LI trip technology.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B060L |
| Series | QJ |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Meter Centers |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Siemens panelboards accept the QJ23B060L breaker?
This unit mount breaker is compatible with Siemens P1, P2, and P3 panelboards, as well as select Siemens meter centers.
How is the QJ23B060L installed in a panel?
It is a unit mount, feed-thru breaker. Instead of plugging or bolting directly onto a busbar, it mounts to the backpan or enclosure and connects to the circuit via cables landed on its line and load lugs.

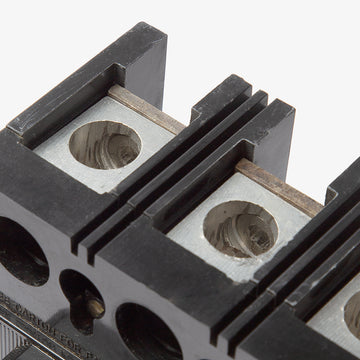

What wire sizes are compatible with the factory lugs on this breaker?
The standard lugs accommodate 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
Are the trip settings on the QJ23B060L adjustable?
No. This thermal-magnetic breaker features fixed long-time and fixed instantaneous trip functions. The trip settings cannot be adjusted in the field.
Is the Siemens QJ23B060L a direct replacement for legacy ITE breakers?
Yes. Siemens acquired ITE and retained the QJ frame design. This breaker directly replaces older ITE 3-pole, 60A, 240V QJ frame breakers with matching trip characteristics.
Is the QJ23B060L rated for 480V applications?
No. The maximum voltage rating for the QJ23B060L is 240V AC. It cannot be safely used on 480V or 600V distribution systems.
