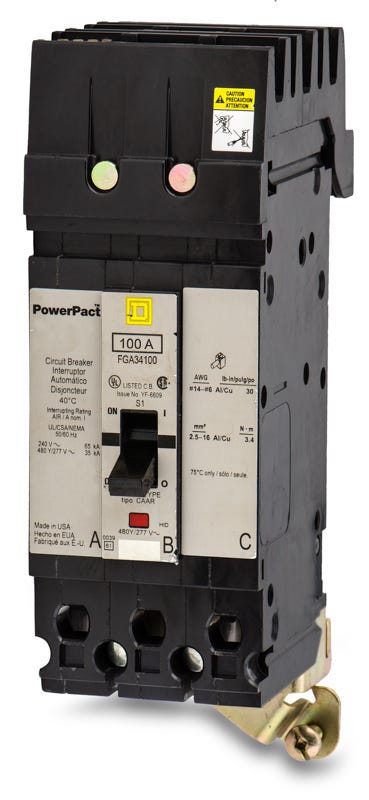

Square D FGA34100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
FGA34100
Molded Case Circuit Breaker
Brand
Square D
SKU
FGA34100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FGA34100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FGA34100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FGA34100 |
| Series | FGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | FGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FGA34100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | FGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the 100A FGA breaker utilizes a proven thermal-magnetic mechanism for reliable LI protection. It integrates seamlessly into Square D I-Line panelboards and switchgear assemblies. Maintaining a narrow 3-inch footprint, this F-Frame unit is frequently sought to replace older components without requiring the 4.5-inch space of the newer HGA36100 model. It delivers a solid 35kA interrupting capacity at 480Y/277V and includes the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | FGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | FGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the Square D FGA34100 circuit breaker?
The FGA34100 is designed for use in legacy Square D I-Line power distribution panelboards and switchboards. It features an I-Line style plug-in connection on the line side for direct bus mounting.
How much mounting space does the FGA34100 require in an I-Line panelboard?
This 3-pole F-frame circuit breaker requires 3 inches of mounting space, which equates to 1 inch per pole. This narrow footprint makes it a preferred replacement over newer H-frame models like the HGA36100, which require a wider 4.5-inch slot.
What wire sizes are accepted by the load lugs on the FGA34100?
The standard load-side lugs accept copper or aluminum wire ranging from 14 AWG to 1/0 AWG. The line side utilizes an I-Line plug-in connection, so mechanical lugs are only present on the load side.
What does the LI trip function code indicate on the FGA34100?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) and Instantaneous (I) protection. Both the thermal overload and magnetic short-circuit trip settings are fixed on this specific model.
Can I replace the FGA34100 with a newer PowerPact H-frame breaker?
While newer PowerPact H-frame breakers, such as the HGA36100, are electrically compatible with I-Line panelboards, they require 4.5 inches of mounting space. The legacy FGA34100 only requires 3 inches. Upgrading to an H-frame will require rearranging adjacent breakers to accommodate the wider footprint.
How is the FGA34100 secured inside the panelboard?
The breaker utilizes an I-Line plug-in connection that engages directly with the panelboard bus. It is then mechanically secured to the panel backpan using a mounting screw, ensuring a stable and reliable connection without the need for line-side wiring.
