Square D HGF36100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
HGF36100
Molded Case Circuit Breaker
Brand
Square D
SKU
HGF36100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

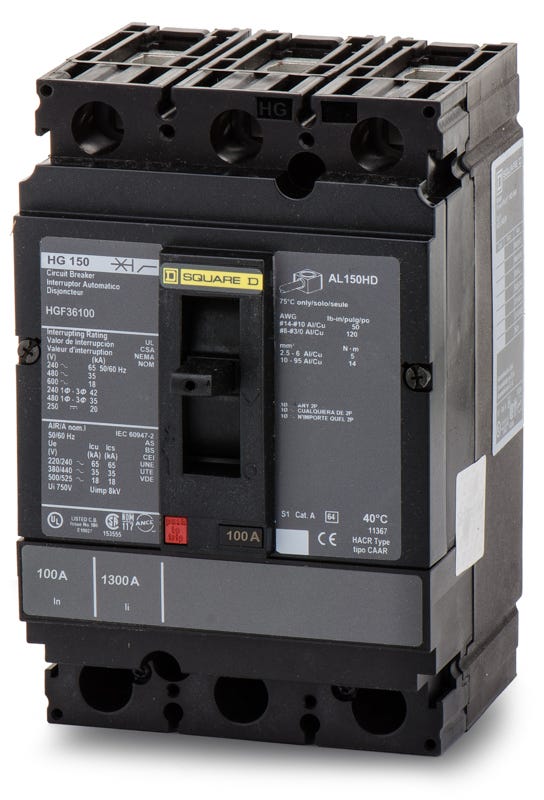

Square D HGF36100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust overcurrent protection, the Square D HGF36100 is a 3-pole, 100A molded case circuit breaker. This PowerPacT H-Frame unit utilizes thermal-magnetic trip technology to safeguard commercial and industrial electrical distribution networks. Designed for unit mount applications, it bolts into Square D H-Frame panelboards and motor control centers. It also replaces legacy FAF36100 breakers. This 600VAC-rated breaker features a 35kAIC rating at 480V and a busbar connection.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGF36100 |
| Series | HGF |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Busbar Connection |
|---|---|
| For Use With | Square D PowerPacT H-Frame Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, Phase Barriers, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489, NOM-003-SCFI-2000 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, Visual Trip Indicator, 80% Rated |
Product FAQs
6 answersWhat legacy circuit breaker does the HGF36100 replace?
The HGF36100 is a direct replacement for legacy Square D FAF36100 circuit breakers.
What does the F in the HGF36100 catalog number indicate about its connections?
The F indicates that this breaker is configured for busbar connections on both the line and load sides. It does not include mechanical wire lugs.
Which lug kit is required to use wire connections instead of busbars?
You can install the AL150HD mechanical lug kit. This kit is compatible with PowerPacT H-Frame breakers and accepts 14 AWG to 3/0 AWG aluminum or copper wire.
What is the magnetic trip range for the HGF36100?
The magnetic trip has a hold current of 900A and a trip current of 1700A.
Can the HGF36100 be reverse fed?
Yes, this circuit breaker is suitable for reverse fed applications.
What equipment is compatible with the HGF36100 breaker?
This unit mount breaker is designed for installation in Square D PowerPacT H-Frame panelboards, switchboards, and motor control centers.
