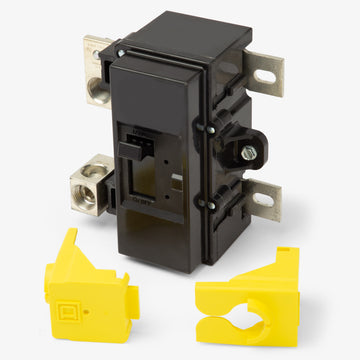

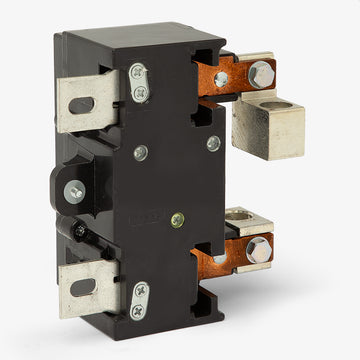

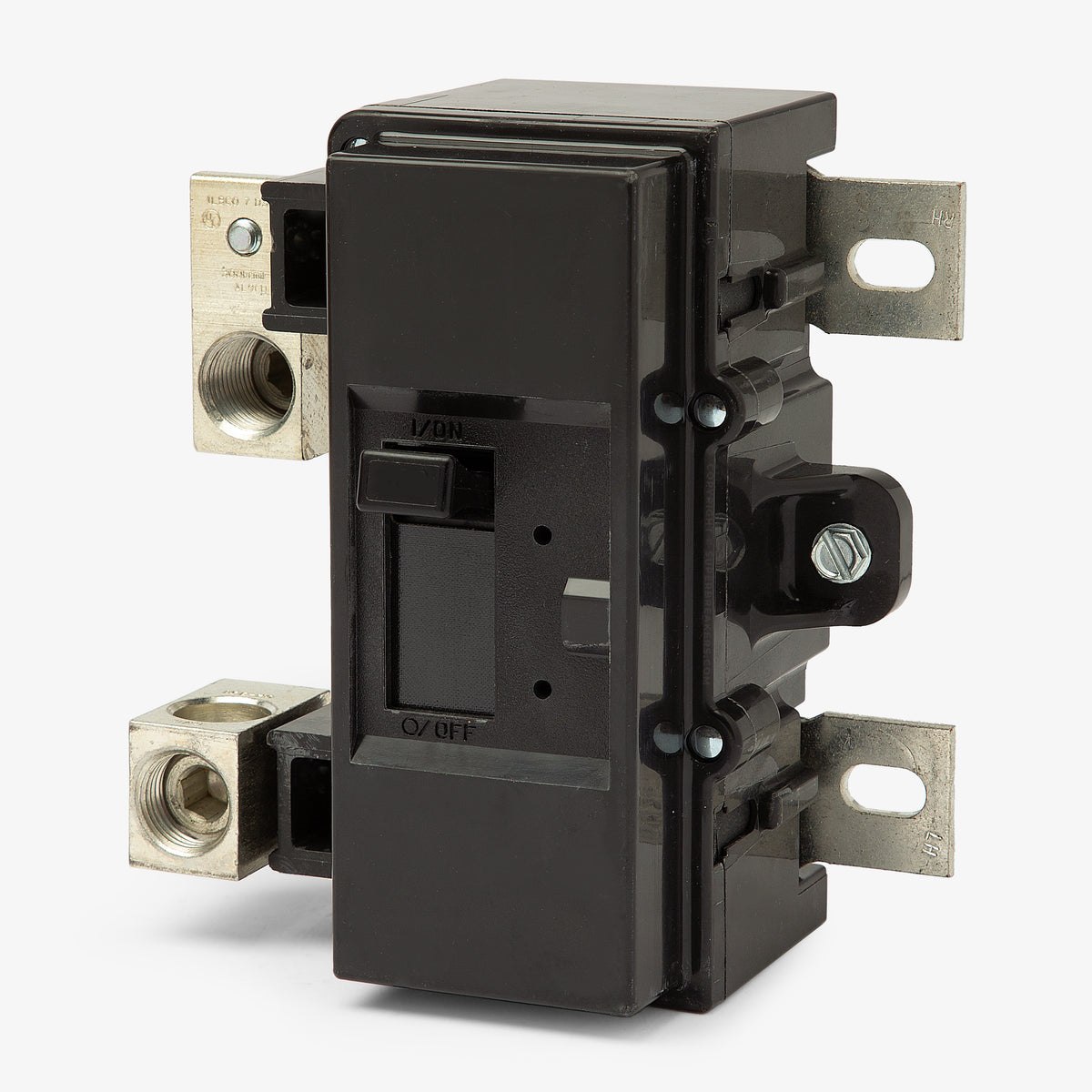

Square D QOM2100MM Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QOM2100MM
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2100MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2100MM - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built specifically for multi-tenant environments, the QOM2100MM functions as a primary 100-amp disconnect for individual utility meters. This thermal-magnetic unit ensures safe power distribution to separate apartments or commercial suites. Designed to fit Square D MP Meter-Pak meter centers, the breaker utilizes a secure bolt-on mounting configuration. The box lugs accommodate a wide wire range from 4 AWG up to 300 kcmil. Delivering a 10kAIC rating, it includes the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2100MM |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOM |
|---|---|

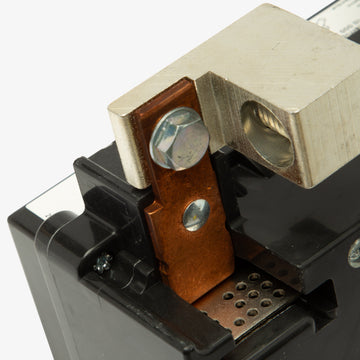

| Terminal Type | Box Lugs |
| For Use With | MP Meter-Pak Meter Centers, QO Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Tenant Main |
Product FAQs
5 answersWhat enclosures are compatible with the QOM2100MM main breaker?
This breaker is designed exclusively for Square D MP Meter-Pak meter centers and QO load centers that are configured to accept QOM2 frame main breakers.
What is the difference between the QOM2100MM and the QOM2100VH?
Both are 100A, 2-pole main breakers built on the QOM2 frame. The QOM2100MM has a standard 10kAIC interrupting rating, while the QOM2100VH offers a higher 22kAIC rating for systems with higher available fault current.
Can I use the QOM2100MM to replace a QOM100VH main breaker?
No. Although both are 100A main breakers, the QOM2100MM uses the larger QOM2 frame. The QOM100VH uses the smaller QOM1 frame. They have different physical dimensions and mounting footprints, making them incompatible with each other.
Does the QOM2100MM provide GFCI or AFCI protection?
No. This unit is a standard thermal-magnetic main breaker. It provides long-time and instantaneous trip functions for overload and short-circuit protection, but does not include ground fault or arc fault detection circuitry.
Does this breaker require a separate hold-down kit for installation?
No. Because the QOM2100MM is a dedicated main breaker with a bolt-on frame, it secures directly to the panel bus studs using its integrated mounting points. A separate hold-down kit, which is typically required for back-fed plug-on breakers, is not needed.
