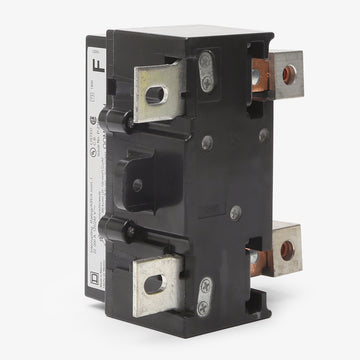

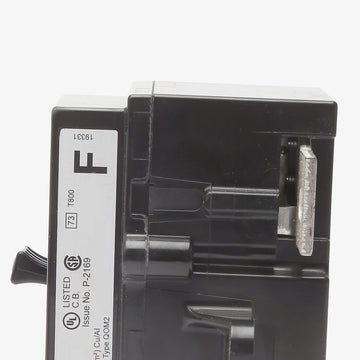

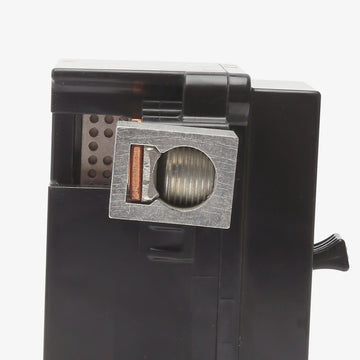

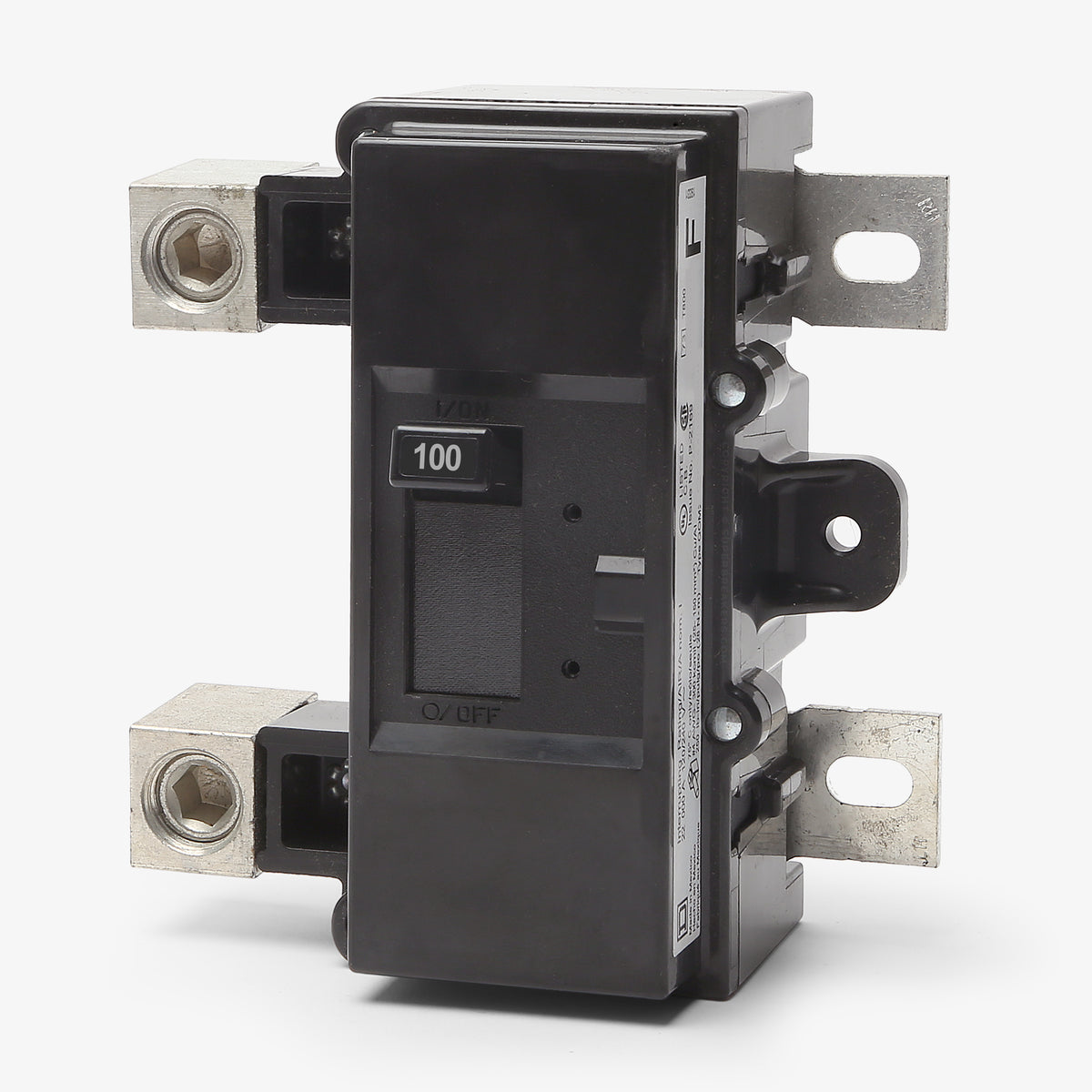

Square D QOM2100VH Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QOM2100VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2100VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2100VH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM2100VH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2100VH |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Sold out
Quantity
Square D QOM2100VH - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2100VH-R |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Similar Items
90A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, the QOM2100VH provides reliable main service protection. This 100A, 2-pole thermal-magnetic breaker delivers essential overcurrent defense for your electrical system. It mounts into Square D QO and Homeline load centers using a secure bolt-on connection. The unit accepts 4 AWG to 300 kcmil aluminum or copper wiring via standard box lugs. Rated at 22kAIC at 120/240VAC, it features an exclusive Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2100VH |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Product FAQs
6 answersWhich load centers are compatible with the QOM2100VH?
This breaker fits Square D QO and Homeline load centers designed for QOM2 frame main breakers. It is typically used to downsize the main service to 100A in a 150A, 200A, or 225A convertible main panel.
Will the QOM2100VH fit a standard 100A QO or Homeline load center?
In most cases, no. Standard 100A and 125A QO or Homeline panels typically require the smaller QOM1 frame main breaker, such as the QOM100VH. The QOM2100VH is a larger QOM2 frame breaker designed for 150A to 225A convertible panels.
What is the difference between the QOM2100 and the QOM2100VH?
The QOM2100VH features a higher interrupting rating of 22kAIC at 120/240VAC. The standard QOM2100 is rated for 10kAIC.
Can the QOM2100VH be used as a branch breaker?
No. The QOM2 frame is exclusively designed to be bolted in as a main breaker in compatible QO and Homeline convertible load centers. It cannot be installed on the branch bus.
What is the tightening torque for the lugs on the QOM2100VH?
The factory specification for the 4 AWG to 300 kcmil lugs is 247.8 lb-in (28 N.m). Always verify with the label on the breaker prior to installation.
Does this main breaker require a separate hold-down kit?
No separate hold-down kit is required. The QOM2100VH bolts directly to the load center bus structure, which inherently secures it in place as a main breaker.
