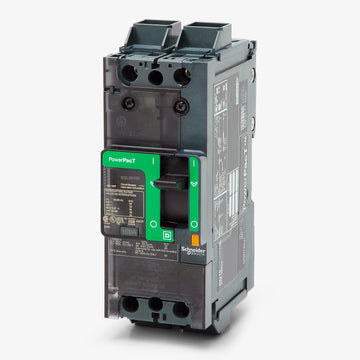

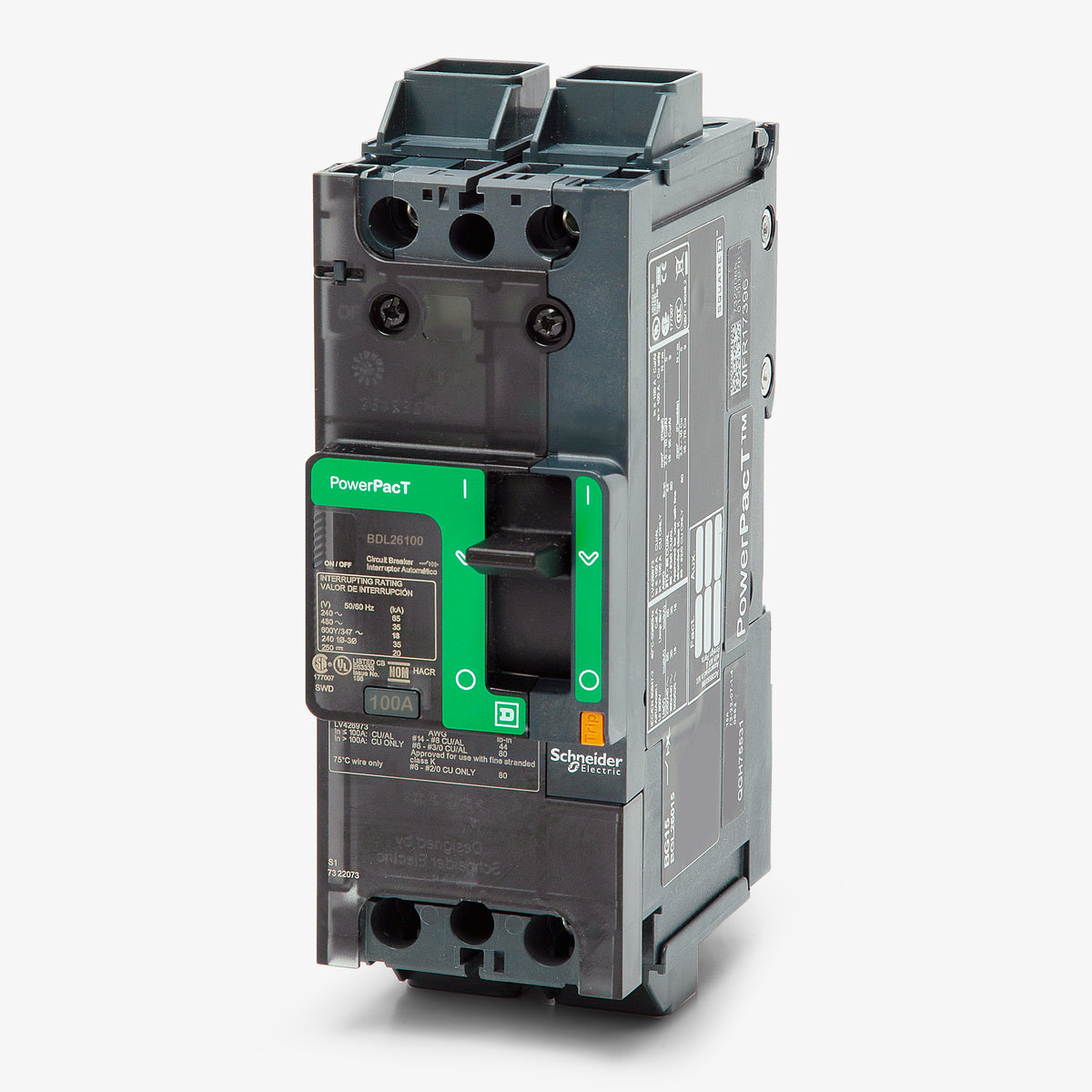

Square D BDL26100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
BDL26100
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDL26100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D BDL26100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, 80% Rated, RoHS Compliant |
Quantity
Square D BDL26100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, 80% Rated, RoHS Compliant |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Providing robust circuit protection, the Square D BDL26100 is a 100-amp, 2-pole PowerPacT B-Frame MCCB. It features a non-interchangeable thermal-magnetic trip unit with long-time and instantaneous functions to safeguard industrial equipment. This unit-mount breaker is compatible with standard switchboards and control panels. It effectively replaces legacy FAL26100 models and substitutes for BGL26100 or BJL26100 breakers. It features a 25kAIC rating at 240V and includes EverLink lugs.Specifications
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Double-Break Rotary Contact Structure, Non-Interchangeable Trip, 80% Rated, RoHS Compliant |
Product FAQs

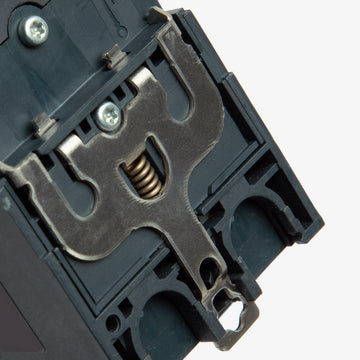

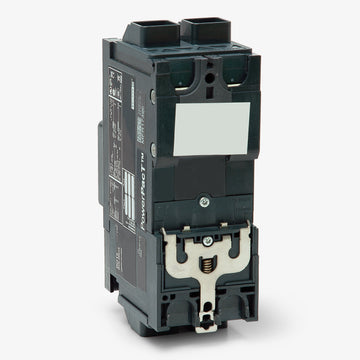

7 answersCan the BDL26100 be mounted on a DIN rail?
Yes, unit-mount PowerPacT B-frame circuit breakers are designed to be mounted directly onto a standard 35 mm DIN rail out of the box, or they can be back-pan mounted using screws.
What are the torque specifications for the lugs on the BDL26100?
The EverLink lugs require 44.3 lb-in of torque for 14 AWG to 4 AWG wire, and 79.7 lb-in for 3 AWG to 3/0 AWG wire.
Is the BDL26100 suitable for reverse feeding?
Yes, standard unit-mount PowerPacT B-frame circuit breakers have sealed trip units and are suitable for reverse feeding applications.
What does the 'D' in the BDL26100 part number signify?
The 'D' indicates the interrupting rating of the breaker. For the PowerPacT B-frame, the D rating provides 18 kA at 480 VAC. Other common ratings in this family include G (35 kA) and J (65 kA).
Can I install this breaker in a standard Square D QO or Homeline load center?
No, the BDL26100 is a molded case circuit breaker designed for industrial control panels, switchboards, and PowerPacT B enclosures. It is not compatible with residential QO or Homeline load centers.

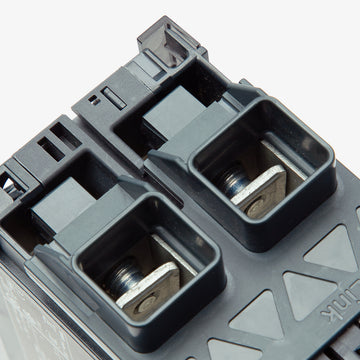

What type of lugs does the BDL26100 use?
This breaker is equipped with EverLink lugs on both the line and load ends. EverLink is a patented lug technology designed to maintain constant pressure on the wire, reducing the risk of loosening over time due to thermal cycling.
What field-installable accessories are compatible with this breaker?
The PowerPacT B-frame supports a variety of field-installable accessories, including auxiliary switches (OF), shunt trips (MX), and undervoltage releases (MN).
