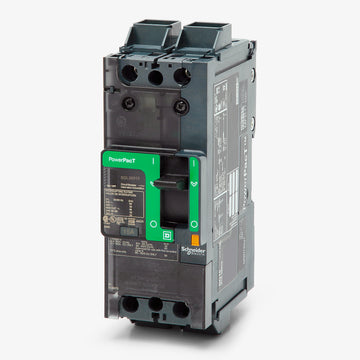

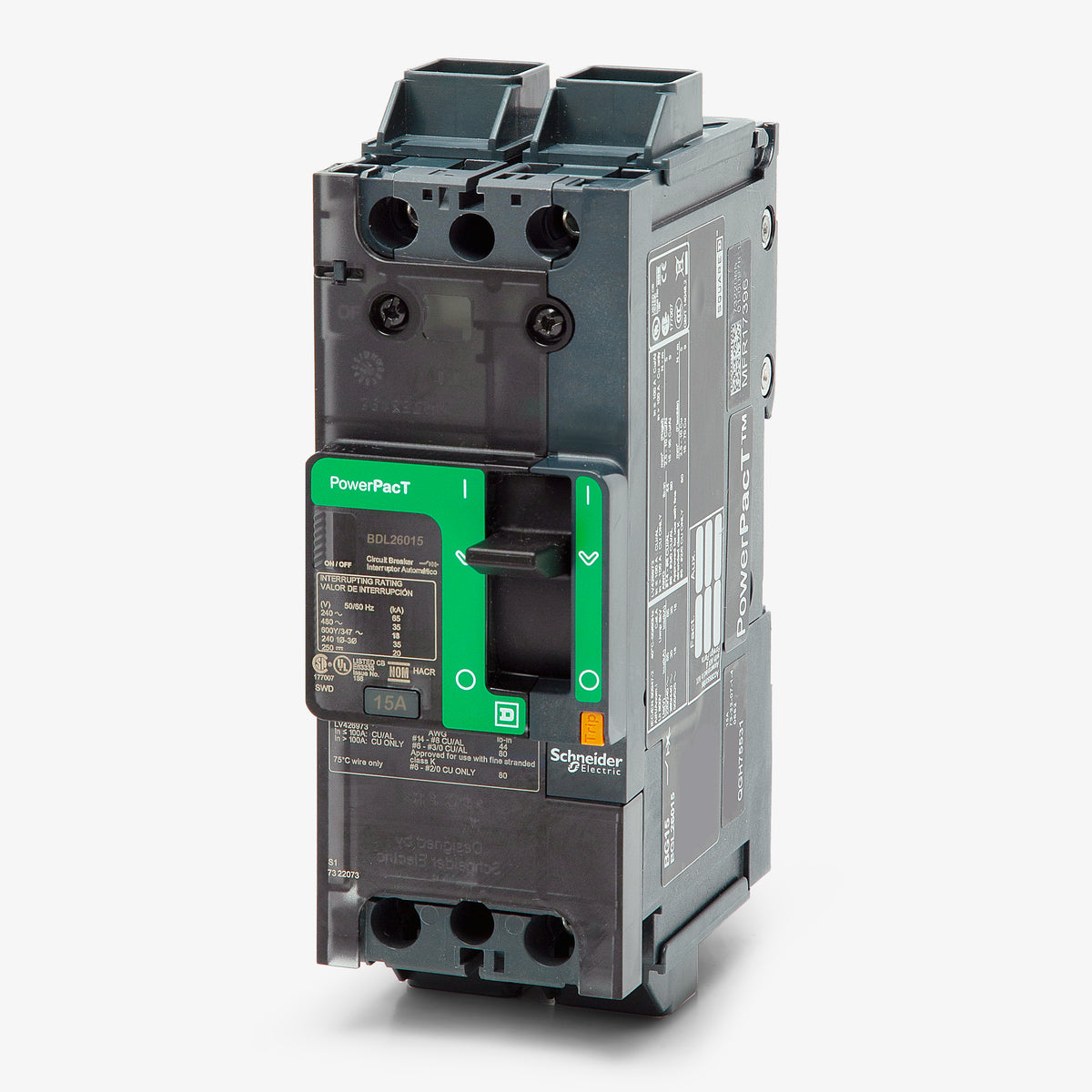

Square D BDL26015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
BDL26015
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDL26015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, this 15A, two-pole PowerPacT B-Frame MCCB offers fixed thermal-magnetic trip functionality. The breaker utilizes a unit-mount configuration, allowing it to integrate into industrial control panels and switchboards. Maintenance teams can deploy this model to replace discontinued FAL26015 units, minimizing downtime. A built-in Visi-Trip indicator provides immediate visual confirmation of a tripped status, while EverLink lugs ensure a secure connection.Specifications
| Brand | Square D |
|---|---|
| Series | BDL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator, Terminal Shields |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, NEMA AB 1, UL 489, GB 14048.2, NMX J-266 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersHow is the BDL26015 mounted?

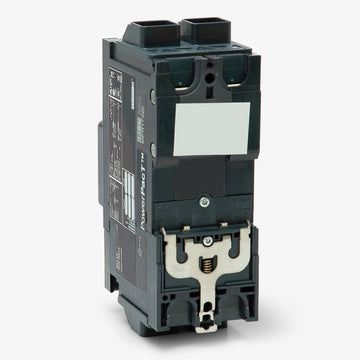

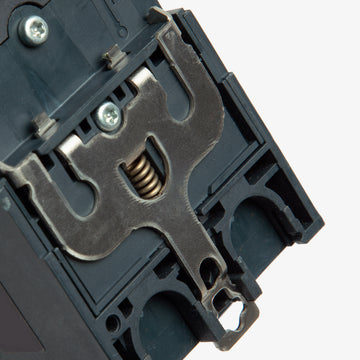

This unit-mount circuit breaker can be installed using traditional back-pan mounting with screws or clipped directly onto a standard 35mm DIN rail.
Are terminal lugs included with this breaker?

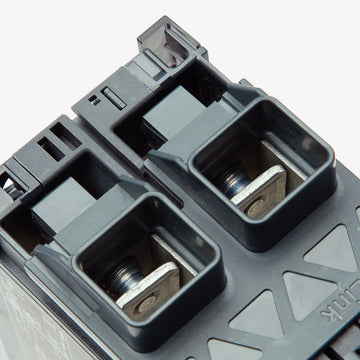

Yes, the L in the catalog number indicates it comes factory-equipped with EverLink lugs on both the line and load ends.
Are the trip settings on the BDL26015 adjustable?
No, it features a factory-sealed, fixed thermal-magnetic trip unit with pre-calibrated long-time and instantaneous protection.
Is this circuit breaker suitable for reverse-feed applications?
Yes, PowerPacT B-frame thermal-magnetic breakers are suitable for reverse connection.
Can the BDL26015 be used in DC systems?
Yes, it supports direct current applications up to 250VDC with an interrupting capacity of 10kA.
What do the letters in the BDL26015 catalog number signify?
The B designates the compact PowerPacT B-Frame, D indicates the standard interrupting rating tier, and L specifies that the breaker includes lugs on both termination ends.
