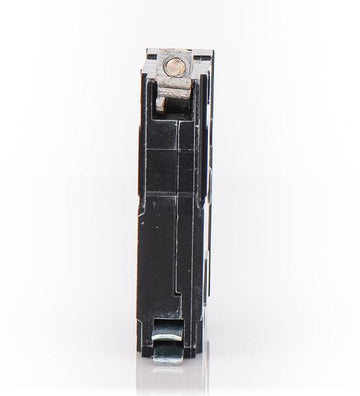

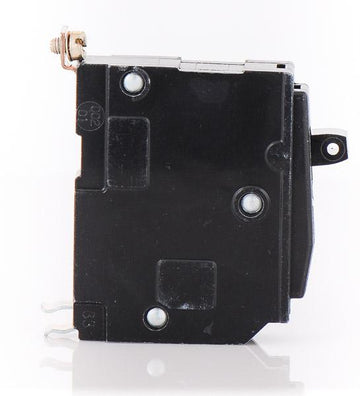

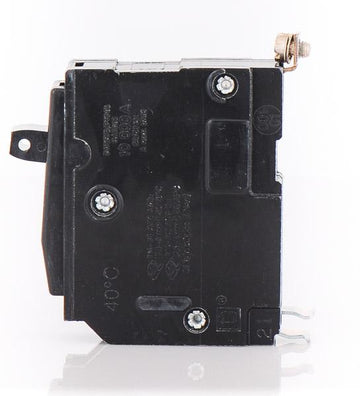

Square D QOB115-1022 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
QOB115-1022
Miniature Circuit Breaker
Brand
Square D
SKU
QOB115-1022
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB115-1022 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB1201021 - 20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial power distribution, the Square D QOB115-1022 delivers robust overcurrent protection. This 15A single-pole breaker utilizes a bolt-on design to ensure a secure connection in demanding environments. It installs into Square D NQ and NQOD panelboards. The bolt-on configuration is preferred in facilities where reliability is critical. Rated 10kAIC at 120/240VAC, it includes a factory-installed shunt trip for remote tripping and features the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB115 |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated |
Product FAQs
6 answersWhat panelboards are compatible with the QOB115-1022 circuit breaker?
This breaker is designed for Square D NQ and NQOD panelboards. Because it utilizes a bolt-on connection, it cannot be installed in standard QO load centers, which require plug-on breakers.
What does the -1022 suffix indicate on the QOB115-1022 catalog number?
The -1022 suffix designates that the breaker includes a factory-installed shunt trip accessory. This allows the breaker to be opened remotely when a control voltage signal is applied to the shunt trip coil.
Can the QOB115-1022 be applied in DC voltage systems?
Yes, this breaker is dual-rated for both AC and DC applications. It carries a 10kAIC interrupting rating at 120/240VAC and a 5kAIC interrupting rating at 48VDC.
What are the wire size requirements for the QOB115-1022 terminals?
The pressure plate terminals accept 14 AWG to 8 AWG aluminum or copper conductors. Always verify the specific torque requirements printed on the breaker label during installation.
How does the thermal-magnetic trip mechanism operate on this breaker?
The breaker features fixed long-time and instantaneous (LI) trip functions. The thermal element provides delayed tripping for sustained overloads, while the magnetic element trips instantaneously to clear short-circuit faults.
How is the QOB115-1022 secured within the panelboard?
It uses a bolt-on mounting style that fastens directly to the panelboard busbar with a mounting screw. This provides a highly secure, vibration-resistant mechanical and electrical connection compared to plug-on designs.
