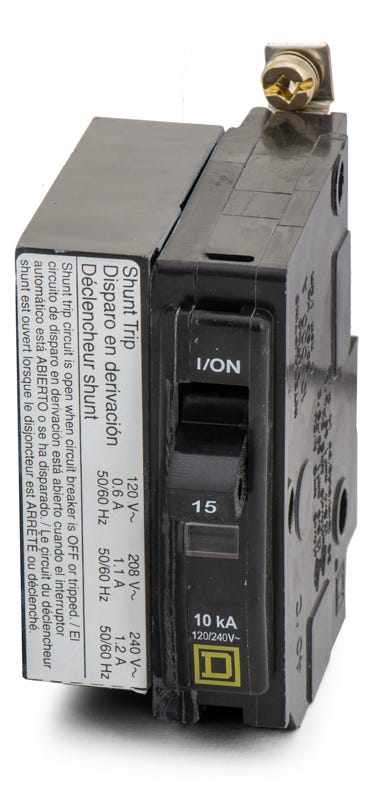

Square D QOB115-1021 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Square D
QOB115-1021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB115-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB115-1021 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB115-1021 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB115-1021 |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, SWD Rated |
Sold out
Quantity
Square D QOB115-1021 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB1151021-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, SWD Rated |
Similar Items
20A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
Description
Part of the QO family, this 15-amp single-pole breaker provides thermal-magnetic protection alongside remote tripping capabilities. It is engineered for commercial systems requiring a 120/240VAC rating. This bolt-on unit installs into Square D NQ and NQOD panelboards. The secure mounting style ensures a stable connection to the busbar. A factory-installed shunt trip distinguishes this model, allowing the breaker to be opened remotely.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB115-1021 |
| Series | QOB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, SWD Rated |
Product FAQs
8 answersWhat does the "-1021" suffix indicate on the Square D QOB115-1021?
The "-1021" suffix designates that this breaker includes a factory-installed 120/240VAC shunt trip accessory, which allows the breaker to be opened remotely via a control signal.
Which panelboards are compatible with the QOB115-1021 circuit breaker?
This bolt-on miniature circuit breaker is designed specifically for use in Square D NQ and NQOD commercial panelboards.
Can the bolt-on QOB115-1021 be installed in a standard QO load center?
No. The QOB115-1021 features a bolt-on connection designed for commercial NQ and NQOD panelboards. Standard residential QO load centers require plug-on breakers, such as the QO115-1021.
How does the QOB115-1021 connect to the panelboard busbar?
It features a bolt-on connection type, which securely fastens the breaker directly to the panelboard busbar using a screw, ensuring a reliable connection in commercial environments.
What type of conductors can be landed on the QOB115-1021 terminals?
The pressure plate terminals are rated for both aluminum and copper (Al/Cu) conductors, accepting wire sizes from 14 AWG up to 8 AWG for flexible installation.
Is the QOB115-1021 suitable for low-voltage DC control circuits?
Yes, this breaker is dual-rated for both AC and DC systems. It can safely interrupt up to 5kA in 48VDC applications, making it suitable for specific low-voltage DC control or battery circuits.
Does the QOB115-1021 provide adequate interrupting capacity for standard commercial panels?
Yes, it provides a 10kAIC interrupting rating at 120/240VAC, which meets the standard fault current requirements for most light commercial NQ and NQOD panelboard installations.
How does the thermal-magnetic trip unit in the QOB115-1021 protect the circuit?
The thermal component provides a long-time delay to prevent nuisance tripping from temporary overloads, while the magnetic component delivers an instantaneous trip to quickly clear severe short circuits.
