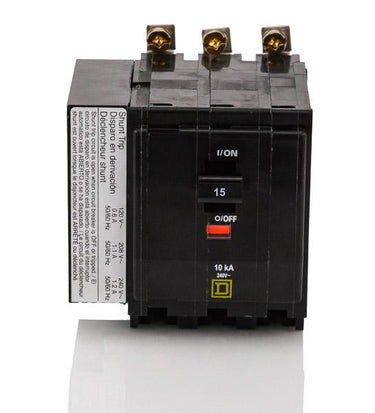

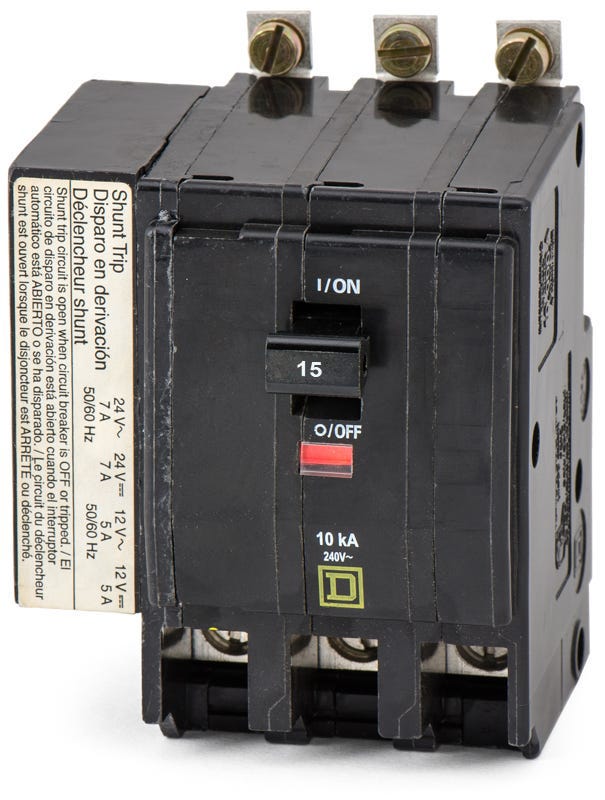

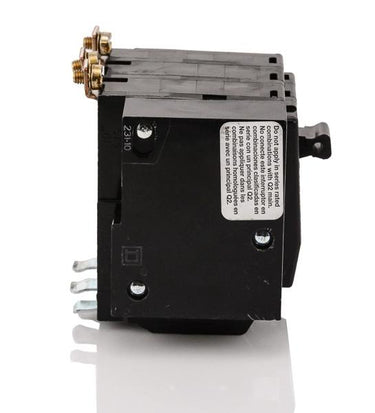

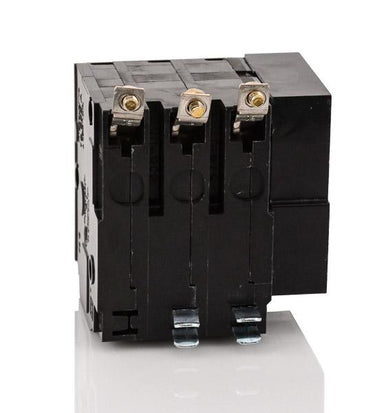

Square D QOB315-1021 QOB3151021 - 15A 3 Pole Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
QOB315-1021
QOB3151021 - 15A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB315-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3151021 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
25A 3 Pole Miniature Circuit Breaker
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial environments, this three-pole miniature circuit breaker provides reliable thermal-magnetic protection. The inclusion of a factory-installed shunt trip allows for remote tripping capabilities. It mounts securely into Square D NQ and legacy NQOD panelboards using a standard bolt-on connection. Rated for 10kA interrupting capacity at 240VAC, the unit features the signature Visi-Trip indicator for rapid fault identification and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB315-1021 |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
7 answersWhat does the -1021 suffix indicate on the QOB315-1021 circuit breaker?
The -1021 suffix denotes that this breaker includes a factory-installed shunt trip accessory rated for 120, 208, or 240 VAC. This allows the breaker to be tripped remotely using a control circuit or emergency stop button.
How many panel spaces are required to install the QOB315-1021?
Because it includes a factory-installed shunt trip accessory, this 3-pole breaker requires four pole spaces in the panelboard. The accessory occupies one additional space alongside the three poles used for the breaker itself.
Which panelboards are compatible with the QOB315-1021 circuit breaker?
This bolt-on breaker is designed for use in Square D NQ and NQOD series panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.
What wire sizes are accepted by the terminals on the QOB315-1021?
The pressure plate terminals on this breaker accept 14 AWG to 8 AWG copper or aluminum wire.
Can the QOB315-1021 be used in systems with a 22kA available fault current?
This breaker has a maximum interrupting rating of 10kA at 120/240VAC. If your system has a higher available fault current, it can only be installed if it is part of a tested series rating with an upstream main breaker that permits its application.
How is the shunt trip wired on the QOB315-1021?
The factory-installed shunt trip features pigtail leads that must be connected to a separate control circuit. When the control circuit energizes the coil with 120V to 240V AC, it mechanically trips the breaker to open the contacts.
What type of protection does the thermal magnetic trip unit provide?
The thermal magnetic mechanism provides fixed long time and instantaneous trip functions. The thermal element protects against sustained overloads, while the magnetic element provides instantaneous tripping during short circuit events.
