Square D QOU215VH Miniature Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
QOU215VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOU215VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

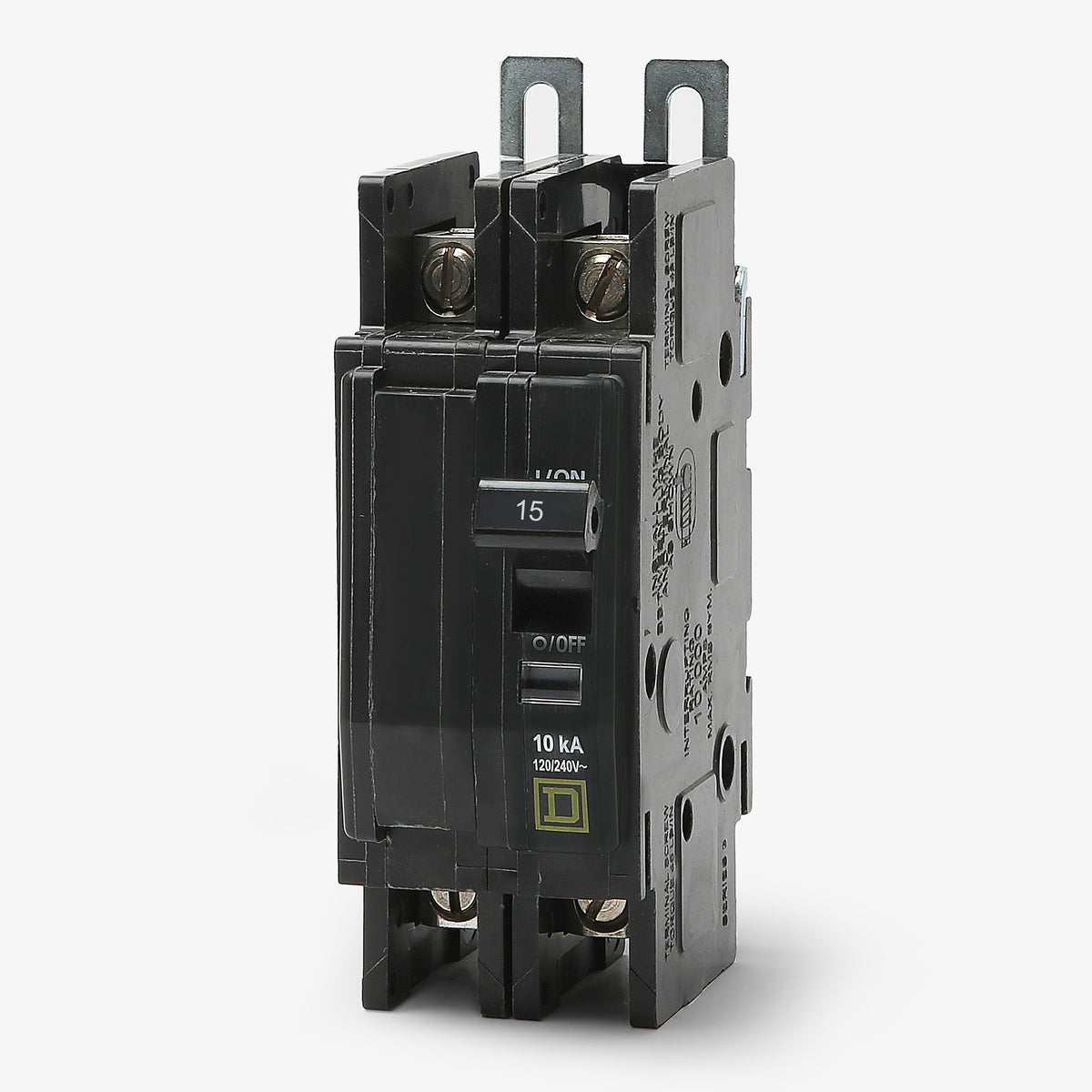

Square D QOU215VH - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description

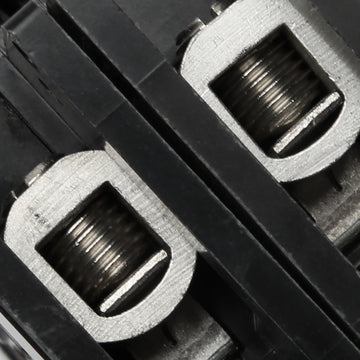

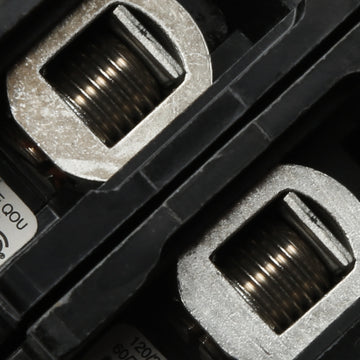

Built for commercial and industrial applications, the Square D QOU215VH is a 2-pole, 15A miniature circuit breaker. It features a high-interrupting capacity of 22 kAIC at 120/240VAC for systems requiring enhanced fault-clearing capabilities. This unit-mount breaker installs into OEM panels, enclosures, and DIN rail setups. It includes reversible line and load box lugs for flexible wiring. Equipped with a Visi-Trip indicator, it provides clear visual confirmation when a fault occurs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU215VH |
| Series | QOU |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator, Reverse Feed, Common Trip |
Product FAQs
7 answersWhat is the difference between the QOU215 and the QOU215VH?
The QOU215VH features a very high interrupting rating of 22kAIC at 120/240VAC. The standard QOU215 has a standard interrupting rating of 10kAIC at the same voltage. Both share the same physical dimensions and mounting style.
What does the VH suffix indicate in the QOU215VH catalog number?
The VH suffix designates a very high interrupting capacity. This model is rated to safely interrupt up to 22,000 amps of fault current at 240V, which is required in commercial or industrial systems with higher available fault currents.
Will this breaker fit in a standard Square D QO load center?
No. The QOU215VH is a unit mount breaker designed for OEM panels, control enclosures, and DIN rail systems. It does not have the plug-on jaw required for standard QO residential or commercial load centers.
Can the QOU215VH be reverse fed?
Yes. QOU series circuit breakers feature reversible line and load box lugs, making them suitable for reverse feed applications in control panels and OEM enclosures.
How do I mount this breaker onto a DIN rail?
The QOU215VH can be mounted to a standard 35mm DIN rail using a compatible Square D DIN rail mounting bracket. It can also be surface or flush mounted using separate mounting feet.
Is the QOU215VH rated for use with heating and air conditioning equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a breaker with this specific safety designation.
Does the QOU215VH include a tripped circuit indicator?
Yes, this model features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red indicator appears to help you quickly identify the faulted circuit.
