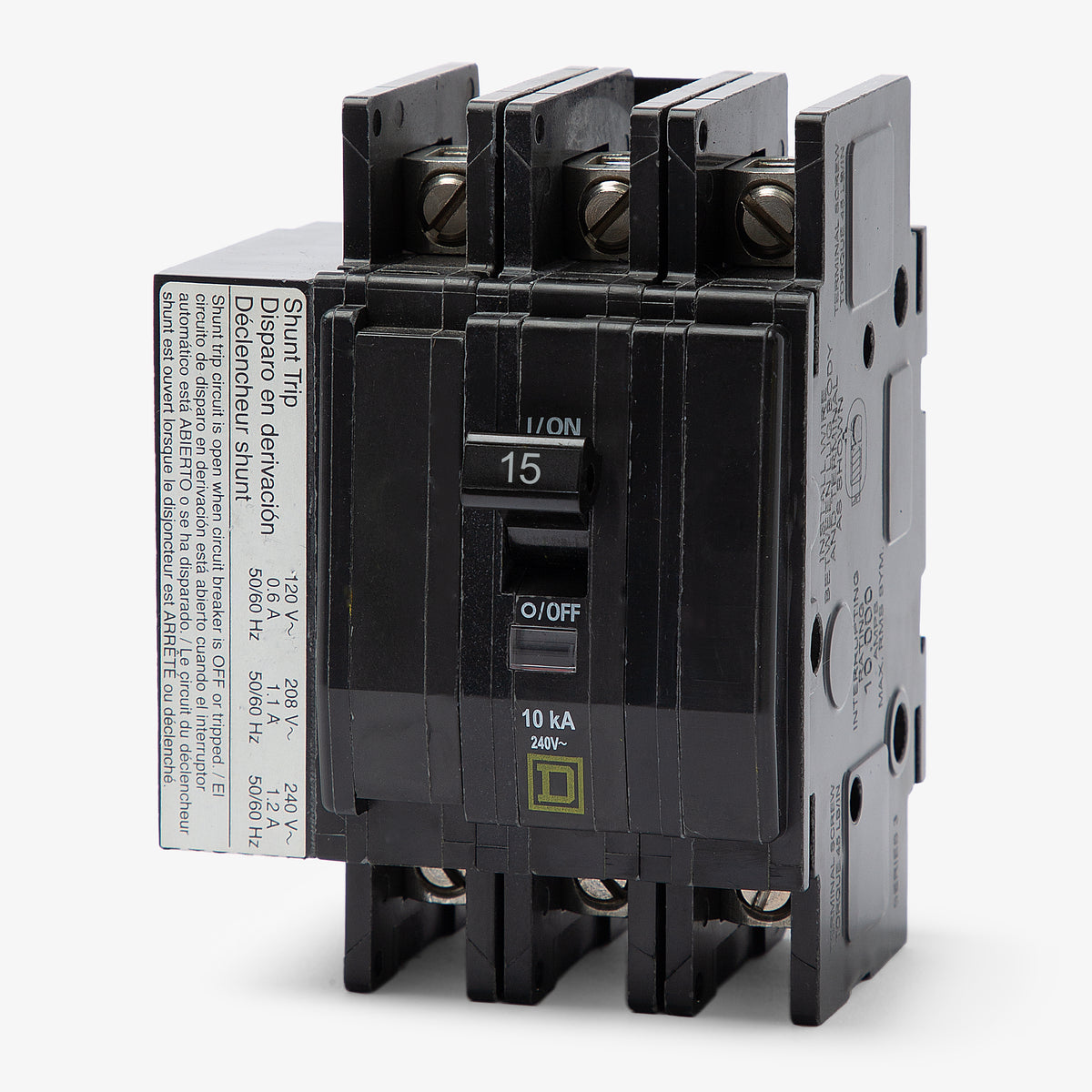

Square D QOU315-1021 QOU3151021 - 15A 3 Pole Miniature Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Square D
QOU315-1021
QOU3151021 - 15A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOU315-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU3151021 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the Square D QOU315-1021 delivers robust overcurrent protection for AC and DC systems. This 15-amp miniature breaker ensures reliable performance in demanding environments. Its versatile unit-mount design allows for seamless integration into DIN rail systems, OEM enclosures, and control panels. A factory-installed shunt trip enables remote tripping capabilities. It also features a Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | QOU |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment, Quick Connectors |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
8 answersWhat does the -1021 suffix indicate on the QOU3151021 circuit breaker?
The -1021 suffix designates a factory-installed 120, 208, or 240 VAC shunt trip. This accessory allows for remote tripping of the circuit breaker via an external control signal.
How does the factory-installed shunt trip affect the physical footprint of the QOU3151021?
The shunt trip accessory occupies one additional pole space. Because this is a 3-pole breaker, the total width will be equivalent to a 4-pole device, requiring extra space on the DIN rail or inside the OEM enclosure.
Can I add an auxiliary switch or bell alarm to the QOU3151021 in the field?
No. Square D QOU miniature circuit breakers accept only one accessory per breaker. Since the 120/240 VAC shunt trip is factory-installed, no additional electrical accessories can be added to this unit.
What wire sizes are accepted by the shunt trip terminals on this breaker?
The terminals for the factory-installed shunt trip accept up to two 14-12 AWG copper (Cu) wires. The hot and neutral control wires can be connected to either terminal on the accessory.
Is the QOU3151021 compatible with standard QO or NQ load centers?
No. QOU series breakers are unit-mount devices designed for DIN rail systems, OEM control panels, and standalone enclosures. They do not plug into or bolt onto standard QO or QOB panelboard busbars.
How is the QOU3151021 mounted in a control panel?
This unit-mount breaker can be installed on a standard 35mm DIN rail, flush-mounted, or surface-mounted using the appropriate mounting feet. It features reversible box lugs for flexible line and load wiring.
Does the QOU3151021 feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent, short circuit, or is tripped remotely via the shunt trip, a red indicator appears to help quickly identify the faulted circuit.
Can the QOU3151021 be reverse fed?
Yes, QOU miniature circuit breakers are suitable for reverse feeding. The box lugs are reversible, allowing line connections to be made at either the top or bottom terminals without affecting the trip mechanism.
