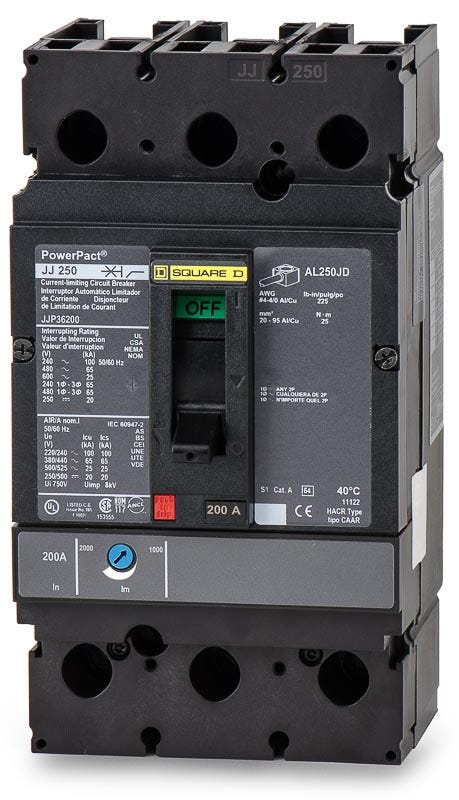

Square D JJP36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
JJP36200
Molded Case Circuit Breaker
Brand
Square D
SKU
JJP36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JJP36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D JJP36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJP36200 |
| Series | JJP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | J |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels, J-Frame Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Handle Lock, Phase Barriers |
|---|---|
| Accessories | Terminal Nut (Line Side), Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free |
