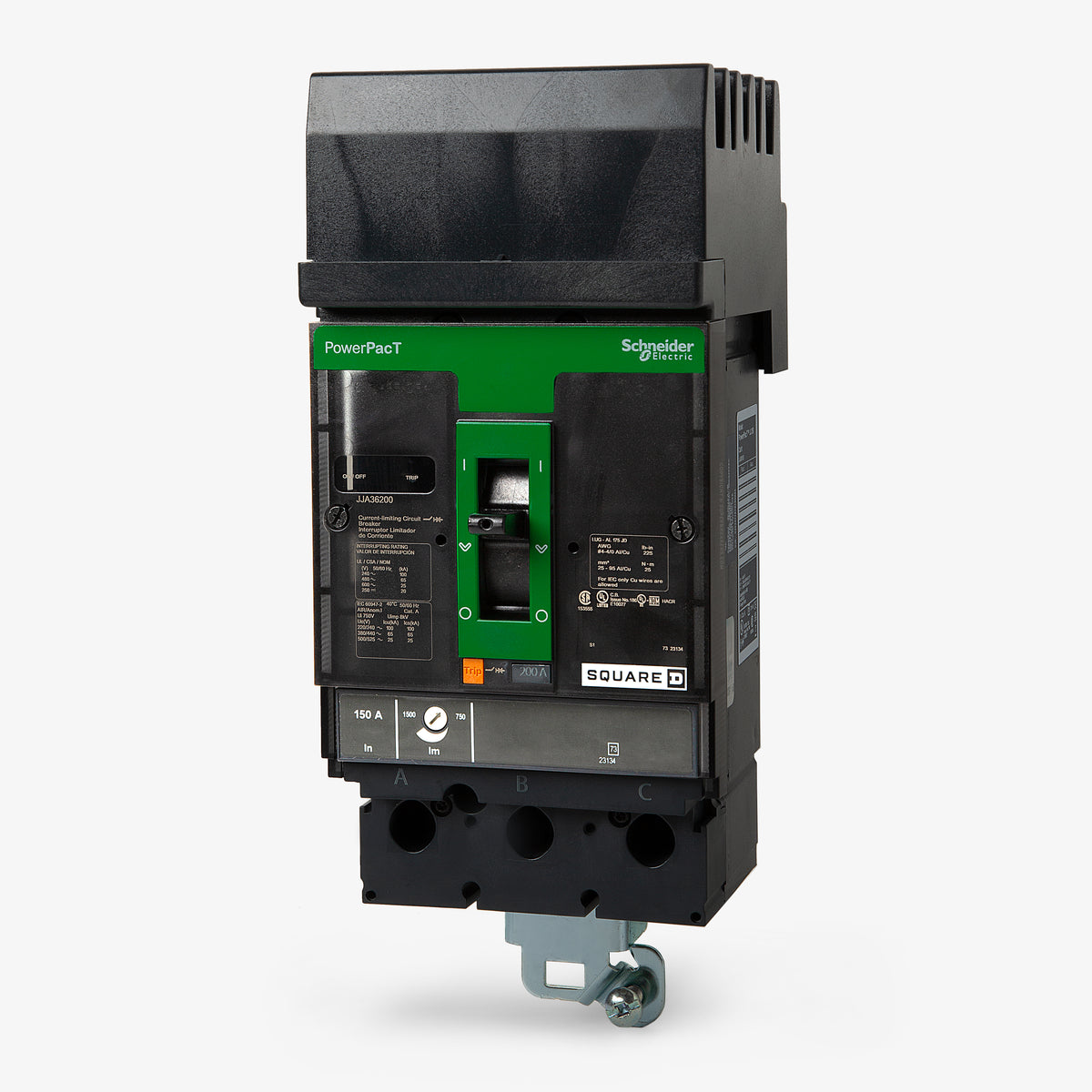

Square D JJA36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
JJA36200
Molded Case Circuit Breaker
Brand
Square D
SKU
JJA36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JJA36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JJA36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36200 |
| Series | JJA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Quantity
Square D JJA36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JJA36200-R |
| Series | JJA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D JJA36200 is a 200A, 3-pole thermal-magnetic circuit breaker. It features long-time and instantaneous (LI) protection functions to safeguard commercial electrical systems. Designed for seamless integration, it mounts into Square D I-Line panelboards. This model effectively replaces older KC36200 and KH36200 units. Delivering a 100kAIC rating at 240VAC, it includes current-limiting capabilities and a Visi-Trip visual indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JJA36200 |
| Series | JJA |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NEMA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
6 answersCan I install this breaker in a standard Square D QO or NQ panelboard?
No. The JJA36200 is specifically designed with an I-Line style plug-in connection. It is only compatible with Square D I-Line panelboards and switchboards, and cannot be used in QO, NQ, or NF enclosures.

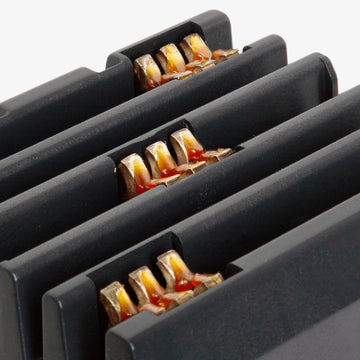

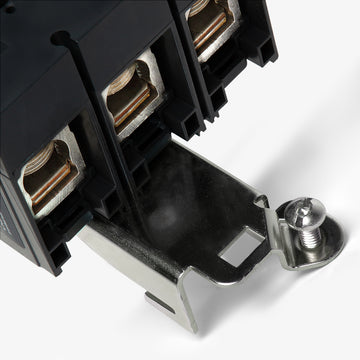

How are the line and load connections configured on this JJA frame breaker?
The line side features a plug-in I-Line connection that mounts directly to the panelboard bus stack. The load side includes factory-installed mechanical lugs that accept 3/0 AWG to 350 kcmil aluminum or copper wire.
What do the letters in the JJA36200 catalog number signify?
In the PowerPacT nomenclature, the first "J" indicates the J-Frame size. The second "J" denotes the interrupting rating tier, providing up to 65kA at 480VAC. The "A" signifies an I-Line plug-in connection on the line side with mechanical lugs on the load side.
Does the "LI" trip function allow for adjustability on this 200A breaker?
Yes. The thermal magnetic trip unit features fixed thermal protection (Long-Time) for overloads, while providing an adjustable magnetic dial (Instantaneous) allowing you to fine-tune the short-circuit trip threshold.

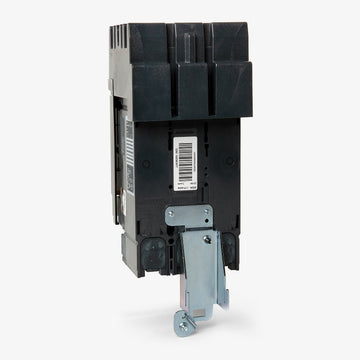

Are mounting screws or brackets required to attach this breaker to an I-Line panel?
No additional mounting hardware is required. I-Line breakers plug directly onto the bus stack and feature a built-in mounting foot on the back of the case that secures the breaker to the panel mounting pan.
Does this breaker feature a manual testing mechanism?
Yes. This PowerPacT J-frame circuit breaker includes an integral push-to-trip button on the front cover. This allows you to manually trip the breaker to verify the mechanical linkage is operating safely.
