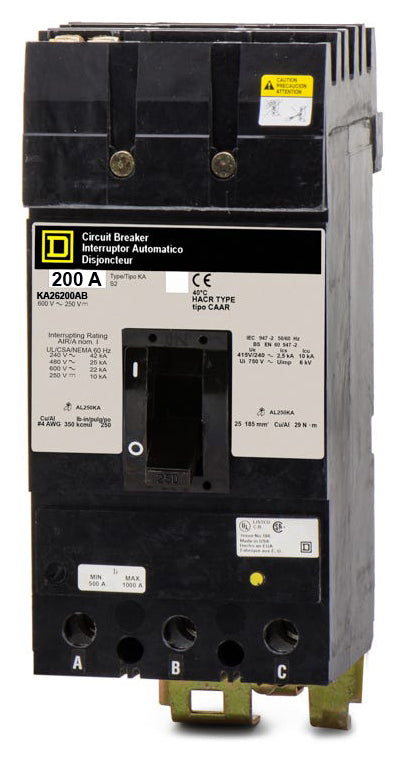

Square D KA26200AB Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
KA26200AB
Molded Case Circuit Breaker
Brand
Square D
SKU
KA26200AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA26200AB - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D KA26200AB - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200AB-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D KA26200AB - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200AB-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial distribution, the Square D KA26200AB is a 2-pole, 200A molded case circuit breaker from the legacy K-Frame family. It provides reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards and switchboards. It features a factory-configured AB phase connection. For modern system upgrades, this breaker is replaced by the PowerPact JGA262001. Rated 25 kAIC at 480VAC, it includes Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26200AB-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the KA26200AB?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side and cannot be used in standard residential load centers.
What does the "AB" suffix indicate on this circuit breaker?
The "AB" suffix designates the factory-configured phase connection. It indicates that the breaker connects specifically to the A and B phases on the I-Line bus stack.
What wire sizes are accepted by the load-side lugs on this breaker?
The standard AL250KA load-side lugs accept copper or aluminum conductors ranging from 4 AWG to 350 kcmil.
Is the KA26200AB still actively manufactured, or is there a modern replacement?
The KA26200AB is part of the legacy Square D K-Frame family. For modern system upgrades, it is typically replaced by 200A breakers in the PowerPact J-Frame series, such as the JGA262001.
How does the I-Line connection work on the KA26200AB?
The breaker features a plug-on design for the line side that snaps directly onto the I-Line bus stack. The load side utilizes traditional mechanical lugs for wire termination.
How do I adjust the trip settings on the KA26200AB?
The thermal protection for long-time overcurrents is fixed at 200A. However, the instantaneous magnetic trip is adjustable via a dial on the front of the breaker to coordinate with specific load inrush currents.
