Square D KA26250AB Molded Case Circuit Breaker
- 250A
- 2 Pole
- I-Line
Square D
KA26250AB
Molded Case Circuit Breaker
Brand
Square D
SKU
KA26250AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

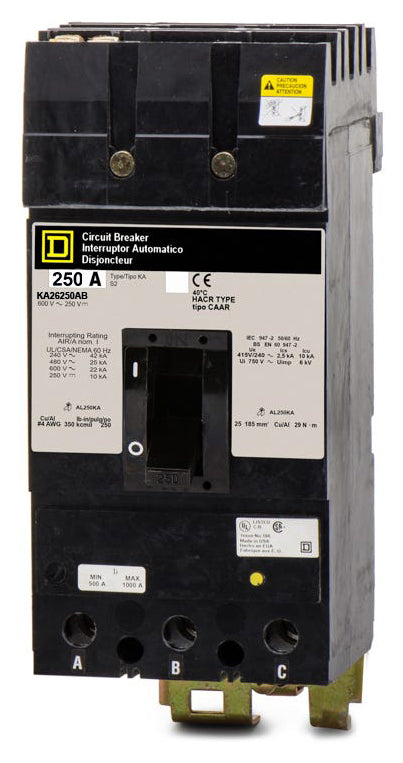

Square D KA26250AB - 250A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power systems, the Square D KA26250AB is a 2-pole, 250A MCCB delivering robust long-time and instantaneous protection. Designed for Square D I-Line panelboards, it features a factory-configured A-B phase connection. It is replaced by the PowerPact JGA262501. Rated for 600VAC with a 25kAIC capacity at 480V, it ensures dependable fault clearing. It also incorporates an adjustable magnetic trip and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26250AB-R |
| Series | KA |
| Amperage | 250A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection A-B (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the "AB" suffix mean on the KA26250AB circuit breaker?
The "AB" suffix indicates the factory-configured phase connection. When installed in a Square D I-Line panelboard or switchboard, this 2-pole breaker will specifically draw power from the A and B phases of the busbar system.
What is the modern replacement for the legacy KA26250AB?
The K-Frame series is a legacy product. For new installations or modern panel upgrades, Square D has replaced this model with the PowerPact J-Frame series, specifically catalog number JGA262501 for a 250A, 2-pole A-B phase I-Line configuration.
How does the KA26250AB mount into a panelboard?
It utilizes an I-Line style plug-in connection. This design allows the breaker's jaws to push directly onto the busbar of compatible Square D I-Line panelboards, eliminating the need for bolted bus connections and speeding up installation.
Does the KA26250AB feature adjustable trip settings?
Yes, while the thermal overload protection is fixed at 250 amps, the magnetic short-circuit trip setting is adjustable. This allows electricians to fine-tune the instantaneous response to coordinate with other protective devices in the electrical system.
What does the "LI" trip function code mean on this breaker?
"LI" stands for Long-Time and Instantaneous trip functions. The Long-Time function provides delayed tripping for sustained overloads, while the Instantaneous function immediately clears severe short circuits, ensuring comprehensive thermal-magnetic protection.
