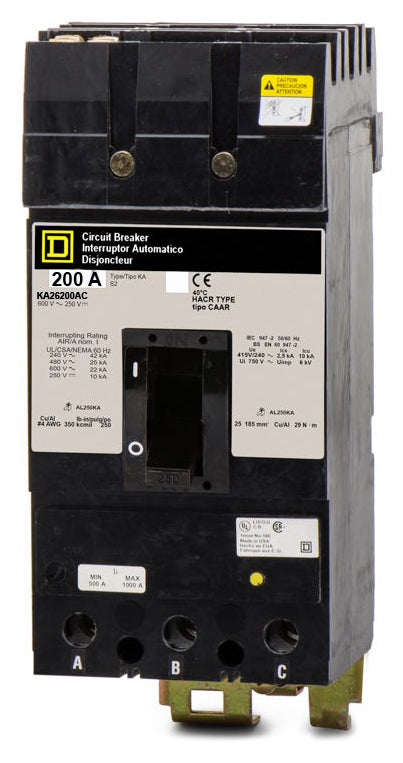

Square D KA26200AC Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
KA26200AC
Molded Case Circuit Breaker
Brand
Square D
SKU
KA26200AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KA26200AC - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D KA26200AC - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200AC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection A-C |
Sold out
Quantity
Square D KA26200AC - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200AC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection A-C |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
Description
Providing robust overcurrent protection, the Square D KA26200AC is a 2-pole, 200A molded case circuit breaker. Part of the legacy K-Frame family, it utilizes thermal-magnetic trip technology with long-time and instantaneous (LI) functions for industrial environments. This unit mounts into Square D I-Line panelboards and features an A-C phase connection. For modern applications, it is replaced by the JGA262002. It delivers 25 kAIC at 480VAC and includes the signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26200AC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection A-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection A-C |
Product FAQs
6 answersWhat equipment is the KA26200AC compatible with?
This breaker mounts exclusively in Square D I-Line panelboards and switchboards. The proprietary plug-on design is not compatible with standard NQ, NF, or QO load centers.
How does the I-Line mounting system work on this breaker?
The line side features a plug-on jaw mechanism that snaps directly onto the I-Line bus stack, eliminating the need for line-side cables or mounting hardware. The load side utilizes standard mechanical lugs.
What type of wire connections are required for the load side?
The breaker uses mechanical lugs on the load side that accept either aluminum or copper conductors from 4 AWG up to 350 kcmil. Ensure proper torque specifications are followed during installation.
What does the adjustable magnetic trip allow the user to do?
While the thermal overload protection is fixed, the adjustable magnetic trip allows electricians to dial in the instantaneous short-circuit response threshold. This helps achieve proper selective coordination with downstream breakers in the distribution system.
Can the KA26200AC be used in DC applications?
Yes, in addition to its AC ratings, it is certified for use on direct current systems up to 250VDC, providing 10kAIC of fault protection.
What is the modern replacement for the legacy KA26200AC?
The KA26200AC is part of the legacy K-Frame series. In modern Square D systems, it is typically replaced by a PowerPact J-Frame breaker, such as the JGA262002, depending on your specific fault current and panel requirements.
