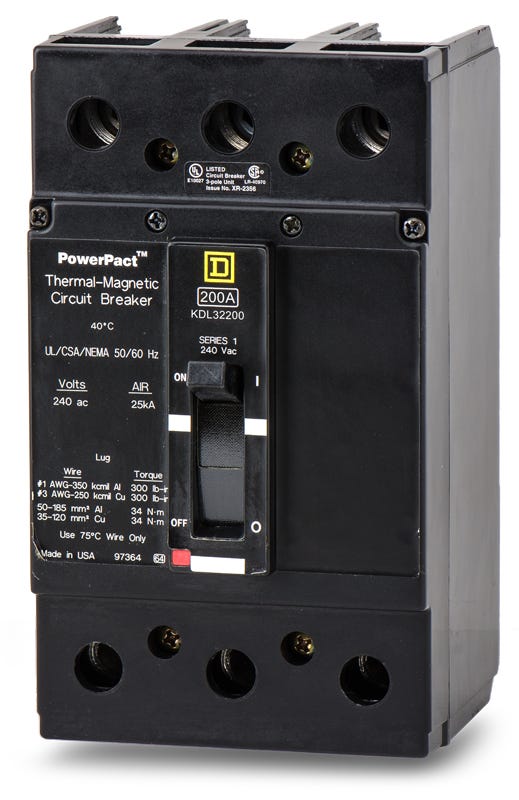

Square D KDL32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
KDL32200
Molded Case Circuit Breaker
Brand
Square D
SKU
KDL32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KDL32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D KDL32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32200 |
| Series | KDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Feed-Thru Connection, Non-Interchangeable Trip |
Quantity
Square D KDL32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32200 |
| Series | KDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Feed-Thru Connection, Non-Interchangeable Trip |
Similar Items
250A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, the Square D KDL32200 is a 3-pole, 200A molded case circuit breaker. It delivers a 25kAIC interrupting rating at 240VAC for commercial and industrial facilities. This unit mount breaker features feed-thru lug connections and installs into Square D switchboards, enclosures, and 3-phase QO load centers. It can be used as a replacement for QDL32200. The breaker utilizes a thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings.Specifications
| Brand | Square D |
|---|---|
| Part Number | KDL32200 |
| Series | KDL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Feed-Thru Connection, Non-Interchangeable Trip |
Product FAQs
5 answersIs the Square D KDL32200 still manufactured, or is there a direct replacement?
The KDL32200 is a legacy K-frame circuit breaker that is no longer in active production. The Square D QDL32200 is commonly used as a modern replacement for 240V applications, but you must verify mounting compatibility in your specific panelboard or switchboard.
What wire sizes are accepted by the lugs on the KDL32200?
The factory-installed feed-thru lugs accept either copper or aluminum conductors ranging from 6 AWG up to 350 kcmil. Ensure proper torque specifications are followed during installation.
Which panelboards and enclosures accept the KDL32200 breaker?
This unit-mount breaker is compatible with Square D QO 3-phase load centers, standard Square D enclosures, and commercial switchboards designed for K-frame or Q-frame unit-mount breakers.
How does the trip unit operate on the KDL32200?
It features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) functions. The thermal element provides fixed overload protection, while the magnetic element is adjustable to allow fine-tuning for specific motor or equipment inrush currents.
Can the KDL32200 be used on 480V or 600V electrical systems?
No. This breaker is strictly rated for a maximum of 240VAC with an interrupting capacity of 25kA. For 480V or 600V applications, a different frame class, such as a PowerPact J-frame or H-frame, is required.
