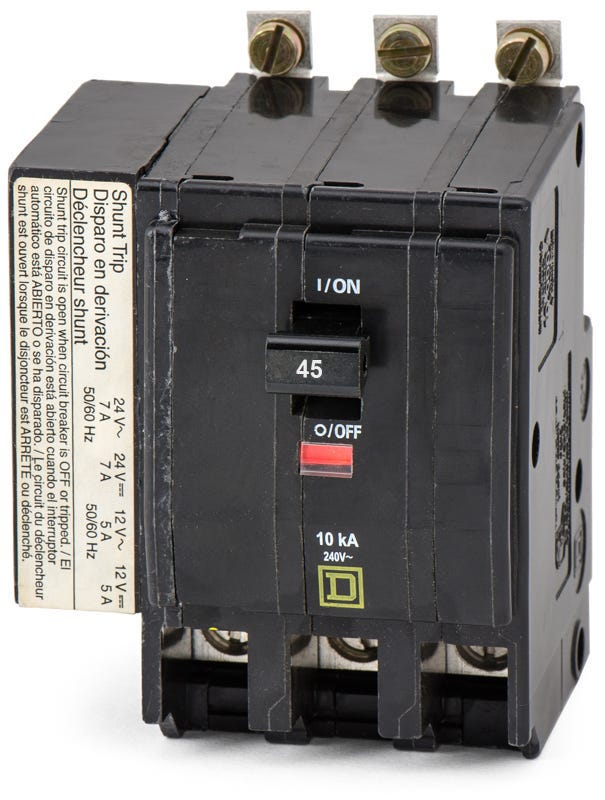

Square D QOB345-1021 QOB3451021 - 45A 3 Pole Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Square D
QOB345-1021
QOB3451021 - 45A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB345-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3451021 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
35A 3 Pole Miniature Circuit Breaker
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Featuring remote tripping capabilities, the QOB345-1021 includes a factory-installed shunt trip mechanism. This 45-amp, three-pole device is designed for commercial environments requiring automated control. The unit utilizes a robust bolt-on connection for maximum stability. It is fully compatible with Square D NQ and NQOD panelboards. Alongside the shunt trip, it retains the standard Visi-Trip indicator for quick fault identification, providing a 10kAIC rating at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB345-1021 |
| Series | QOB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat does the -1021 suffix indicate on the QOB345-1021?
The -1021 suffix signifies that the breaker comes with a factory-installed 120/208/240V AC shunt trip. This accessory allows the breaker to be tripped remotely, which is often required for emergency shutdown or automated control systems.
Which panelboards accept the QOB345-1021 circuit breaker?
This breaker is specifically designed for bolt-on installation in Square D NQ and NQOD panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.
How is the QOB345-1021 secured to the panelboard?
It uses a bolt-on mounting style. This bolted connection fastens directly to the panelboard bus, providing a secure and reliable contact that is ideal for commercial or industrial environments prone to vibration.
How can I tell if the QOB345-1021 has tripped?
This breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears in the window, allowing for quick identification of the faulted circuit.
How does the thermal-magnetic trip mechanism operate on this breaker?
The thermal-magnetic system provides two types of protection. The thermal component provides a long-time delay to handle mild, temporary overloads, while the magnetic component provides an instantaneous trip to quickly clear severe short circuits.
Is the QOB345-1021 interchangeable with a standard QO345?
No. While both are 45A, 3-pole breakers, the QOB345-1021 is a bolt-on breaker for NQ and NQOD panelboards and includes a shunt trip accessory. A standard QO345 is a plug-on breaker without a shunt trip and is intended for QO load centers.
Is the QOB345-1021 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with compatible heating, air conditioning, and refrigeration equipment.
