Square D BDL26030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Square D
BDL26030
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDL26030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description

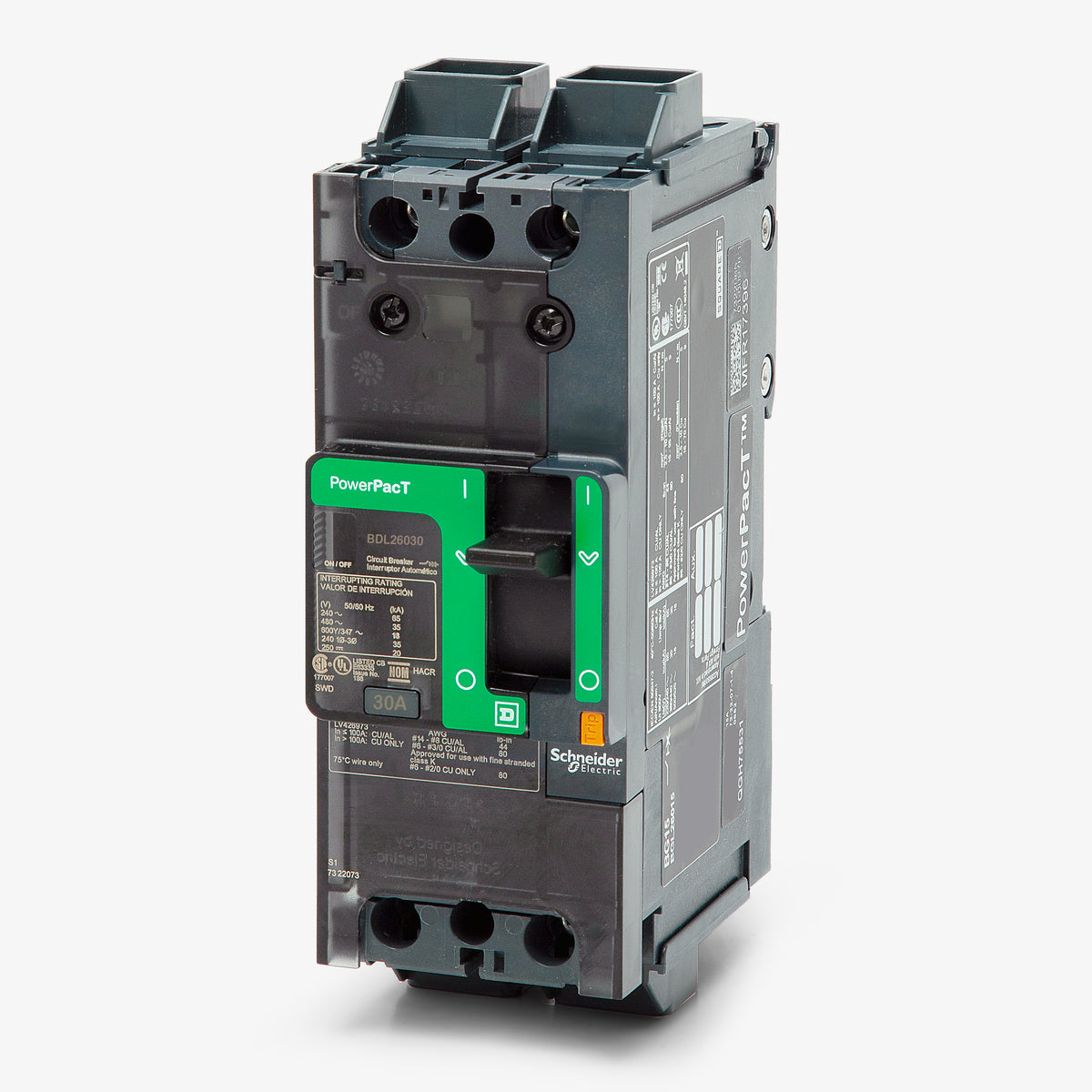

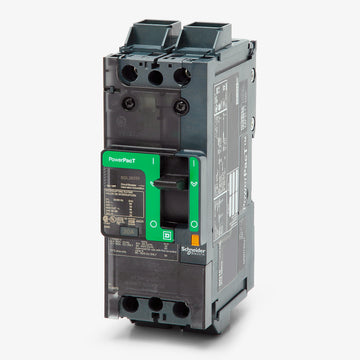

Built for demanding commercial applications, the BDL26030 is a 2-pole, 30A molded case circuit breaker. As part of the PowerPact B-frame series, it provides fixed thermal-magnetic protection against overloads and short circuits. The breaker is equipped with innovative EverLink lugs, which combat cable creep to maintain a secure connection. Designed for flexible unit mounting, it easily installs onto DIN rails within switchboards. It serves as a modern replacement for legacy FAL26030 breakers.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL26030 |
| Series | BDL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Electrical Distribution Equipment, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, NEMA AB 1, UL 489, GB 14048.2, NMX J-266 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
6 answersCan the BDL26030 be used to replace older Square D F-frame circuit breakers?
Yes, the PowerPacT B-frame series is the designated replacement for legacy FAL and FHL circuit breakers. While it offers increased capacity and upgraded features, the B-frame maintains a compact footprint for retrofit applications.
What type of lugs are included on the BDL26030?

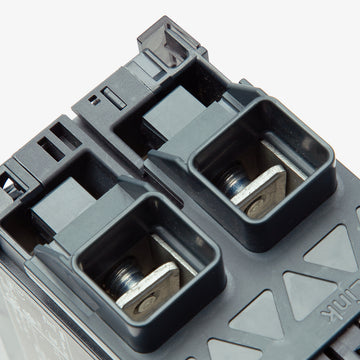

This breaker comes standard with patented EverLink creep-compensating lugs on both the line and load sides. These lugs maintain constant contact pressure on the conductors to prevent loosening over time.
How is the BDL26030 circuit breaker mounted?

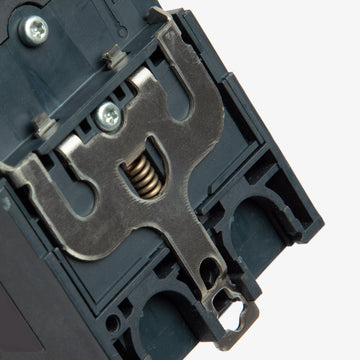

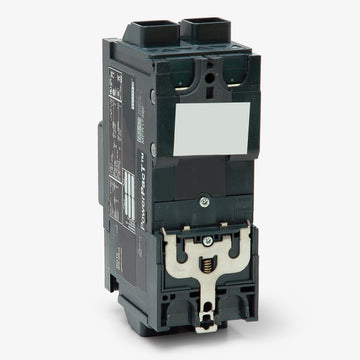

The BDL26030 is a unit-mount breaker. It can be installed on a standard 35mm DIN rail using the integrated clip or surface-mounted to a back-pan or plate using screws.
Can I install the BDL26030 in a Square D I-Line panelboard?
No, the BDL26030 is a unit-mount breaker designed for control panels and DIN rail applications. For an I-Line panelboard, you must use an I-Line specific B-frame breaker, such as the BDA or BGA series.
What does the "D" interrupting class indicate for this PowerPacT B-frame breaker?
The "D" indicates the breaker's specific short-circuit current ratings. For this model, it provides 25 kA at 240V, 18 kA at 480V, and 14 kA at 600Y/347V.
Does the BDL26030 provide ground fault protection?
No, this is a standard thermal-magnetic circuit breaker with Long-Time and Instantaneous (LI) trip functions. It does not include GFCI or equipment ground fault protection.
