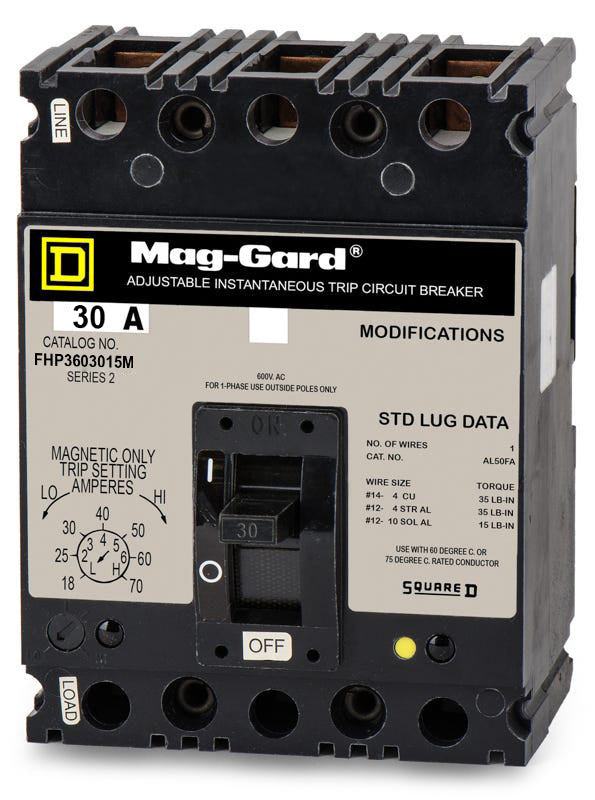

Square D FHP3603015M Motor Circuit Protector
- 30A
- 3 Pole
- Bolt-On
Square D
FHP3603015M
Motor Circuit Protector
Brand
Square D
SKU
FHP3603015M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHP3603015M - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D FHP3603015M - 30A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP3603015M-R |
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 100-350A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
Sold out
Quantity
Square D FHP3603015M - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP3603015M-R |
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 100-350A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
Similar Items
15A 3 Pole Motor Circuit Protector
50A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Engineered for precise motor control, this 30A instantaneous-only device provides robust short-circuit protection. The adjustable magnetic trip dial allows settings from 100 to 350A, ensuring optimal coordination with external overload relays. This bolt-on Mag-Gard unit installs into Square D motor control centers and combination starters. When upgrading legacy systems, it is replaced by the HJL36030M71. Rated 25kA at 480VAC, it delivers reliable current-limiting performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHP3603015M-R |
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 100-350A |
|---|
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Combination Starters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
