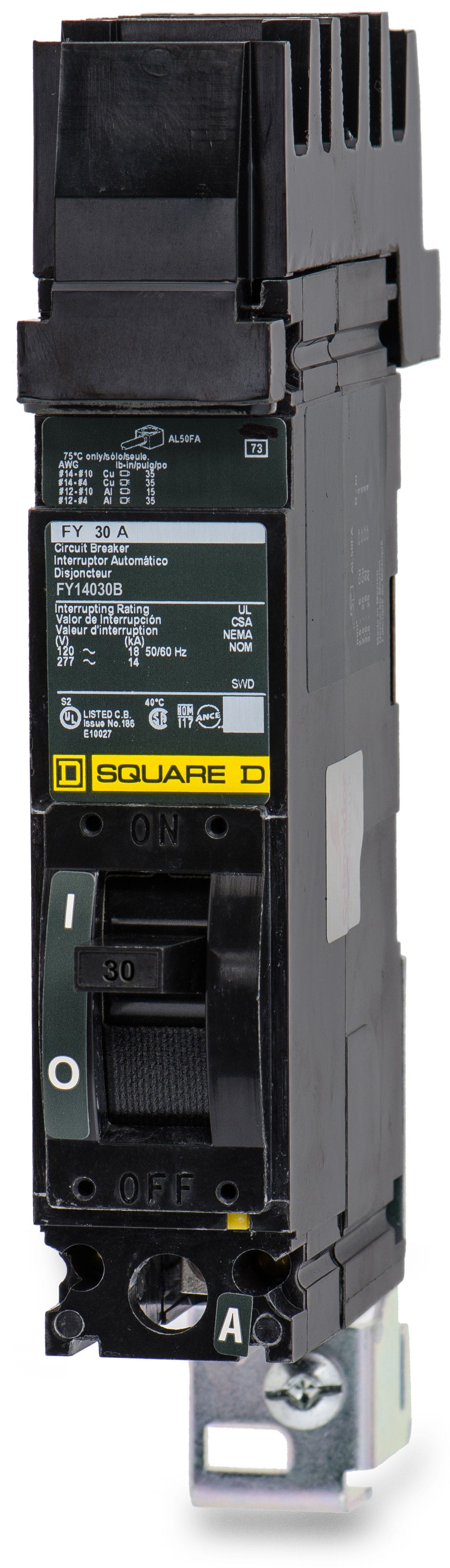

Square D FY14030B Molded Case Circuit Breaker
- 30A
- 1 Pole
- I-Line
Square D
FY14030B
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14030B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14030B - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FY14030B - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14030B |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FY14030B - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14030B-R |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging systems, the Square D FY14030B is a 1-pole, 30A molded case circuit breaker providing robust thermal-magnetic protection. Designed for Square D I-Line panelboards, this legacy F-frame unit is a direct fit for existing setups. It is the predecessor to the modern PowerPact BDA140303. This model features a factory-configured Phase B connection and Visi-Trip indicator. It carries a 14 kAIC rating at 277VAC and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14030B |
| Series | FY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment |
|---|---|
| Accessories | Phase B Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan I install the FY14030B in a standard QO or Homeline load center?
No, the FY14030B is an I-Line style plug-in breaker. It is strictly compatible with Square D I-Line panelboards and switchboards and will not fit in residential QO or Homeline load centers.
What does the 'B' in the FY14030B catalog number mean?
In Square D I-Line nomenclature, the 'B' suffix indicates that this 1-pole breaker is factory-configured to connect specifically to the B-phase bus bar in the panelboard. If you need to connect to the A-phase or C-phase, you would need the FY14030A or FY14030C, respectively.
How does the I-Line connection work on the FY14030B?
The breaker features a plug-on line-side connection that engages directly with the I-Line bus stack in the panelboard. The load side utilizes a standard mechanical lug for wire termination.
Is the FY14030B a current production model?
The FY series is a legacy F-frame molded case circuit breaker. It remains a popular drop-in replacement for maintaining existing I-Line panelboards, though Square D has transitioned to the PowerPact B-frame series for newer installations.
Does the FY14030B provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic breaker with fixed long-time and instantaneous (LI) trip functions. It does not provide ground fault or arc fault circuit interruption.
Is the FY14030B HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
