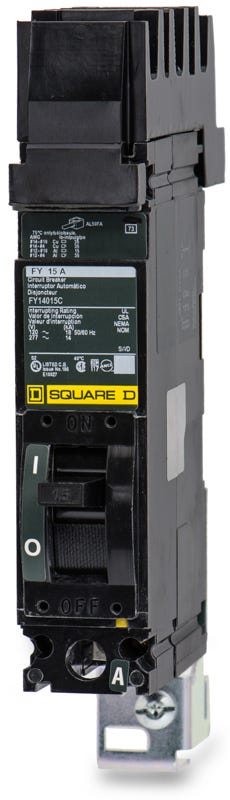

Square D FY14015C Molded Case Circuit Breaker
- 15A
- 1 Pole
- I-Line
Square D
FY14015C
Molded Case Circuit Breaker
Brand
Square D
SKU
FY14015C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FY14015C - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FY14015C - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14015C |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase C Connection, Visual Trip Indicator |
Quantity
Square D FY14015C - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FY14015C-R |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase C Connection, Visual Trip Indicator |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Serving as a reliable branch protector, the Square D FY14015C is a 1-pole, 15A molded case circuit breaker. It offers essential LI protection for 277VAC electrical circuits. Featuring a plug-on I-Line mounting style and a phase C connection, it integrates into Square D panelboards. This discontinued F-Frame component is replaced by the BDA140155. Rated for 18 kAIC, it handles moderate fault currents safely. A built-in Visi-Trip indicator ensures rapid identification of tripped status.Specifications
| Brand | Square D |
|---|---|
| Part Number | FY14015C |
| Series | FY |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FY |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Phase C Connection, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards accept the FY14015C circuit breaker?
This F-Frame breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a factory-configured Phase C connection and will not fit in standard QO, NQ, or NF load centers.
What is the modern replacement for the discontinued FY14015C?
The FY14015C is a legacy F-Frame breaker that has been superseded by the Square D PowerPact B-Frame series. The direct modern replacement for this 15A, Phase C I-Line breaker is catalog number BDA140155.
How does the I-Line connection on the FY14015C work?
The I-Line plug-in design allows the breaker to engage directly with the panelboard bus stack without requiring bolt-on hardware. The breaker snaps securely into place, which speeds up installation and simplifies phase balancing.
What type of protection does the FY14015C provide?
It utilizes a fixed thermal-magnetic trip unit to deliver standard LI (Long-Time and Instantaneous) protection. The thermal element responds to sustained overloads, while the magnetic element trips instantaneously during short circuits.
How can I tell if the FY14015C has tripped?
This breaker includes a built-in Visi-Trip indicator. When a fault occurs, the handle moves to a center position and a red indicator becomes visible, allowing electricians to quickly identify the tripped circuit inside a crowded panel.
Is the FY14015C suitable for switching fluorescent lighting or HVAC equipment?
Yes, this breaker is both SWD (Switching Duty) and HACR (Heating, Air Conditioning, and Refrigeration) rated. This means it can be safely used to manually switch 277V fluorescent lighting circuits and is approved for use with compatible HVAC motor loads.
