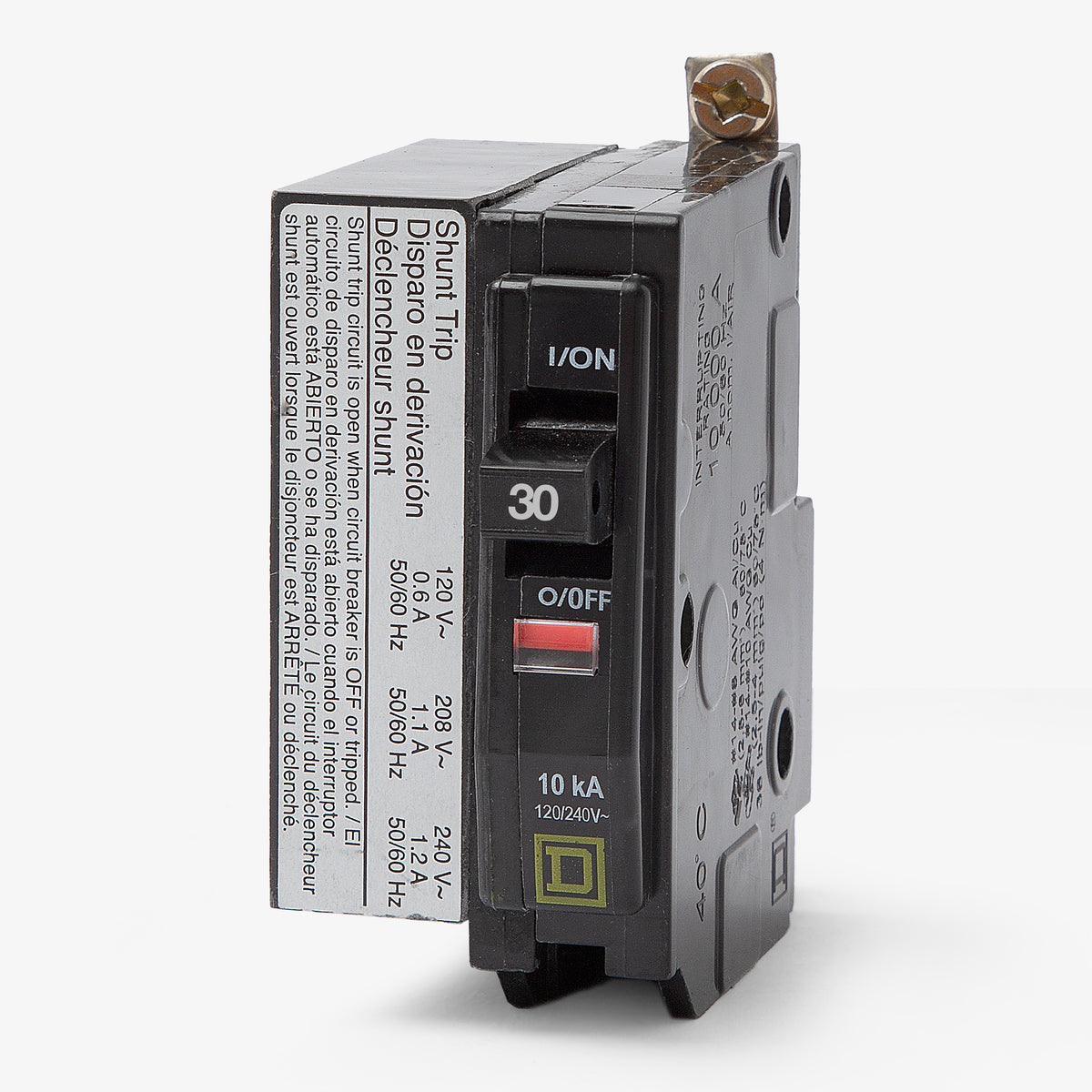

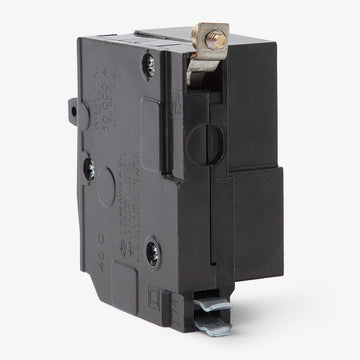

Square D QOB130-1021 QOB1301021 - 30A 1 Pole Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Square D
QOB130-1021
QOB1301021 - 30A 1 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB130-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB1301021 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Square D QOB1301021 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB1301021 |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB1301021 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB1301021-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
QOB1201021 - 20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 30A bolt-on breaker includes a factory-installed shunt trip for remote disconnects. It installs securely into Square D NQ and NQOD panelboards, providing reliable thermal-magnetic protection. Featuring the signature Visi-Trip indicator for quick fault identification, it delivers a 10kA interrupting rating at 120/240VAC. This specific configuration is frequently replaced by the updated QOB1301021 model in modern installations.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB1301021 |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards accept the QOB1301021 circuit breaker?
This bolt-on breaker is specifically designed for Square D NQ and NQOD series panelboards. It cannot be used in standard QO residential load centers, which require plug-on mounting.
What function does the 1021 suffix provide on this breaker?
The 1021 suffix indicates a factory-installed shunt trip accessory. This allows the breaker to be opened remotely via a 120V to 240V AC control signal, which is commonly used for emergency stops or remote disconnect applications.
Is the QOB1301021 rated for direct current (DC) applications?
Yes, in addition to its 120/240V AC rating, this breaker is rated for 48V DC systems, providing a 5kA interrupting capacity for DC power applications.
How can I visually identify if the QOB1301021 has tripped?
This breaker features the Square D Visi-Trip indicator. When a fault occurs and the breaker trips, a bright red flag appears in the indicator window, making it easy to locate the tripped circuit inside a crowded panelboard.

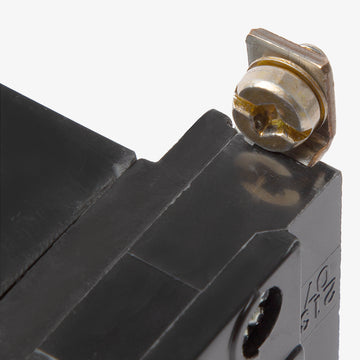

What type of wire connections does this breaker support?
The breaker uses pressure plate terminals that accommodate 14 AWG to 8 AWG wire. The terminals are rated for both aluminum and copper conductors.

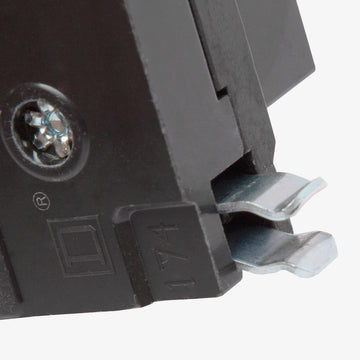

How is the QOB1301021 secured inside the panelboard?
It utilizes a bolt-on mounting style. The breaker physically bolts directly to the panelboard busbar, ensuring a secure and reliable connection that resists vibration in commercial and industrial environments.
