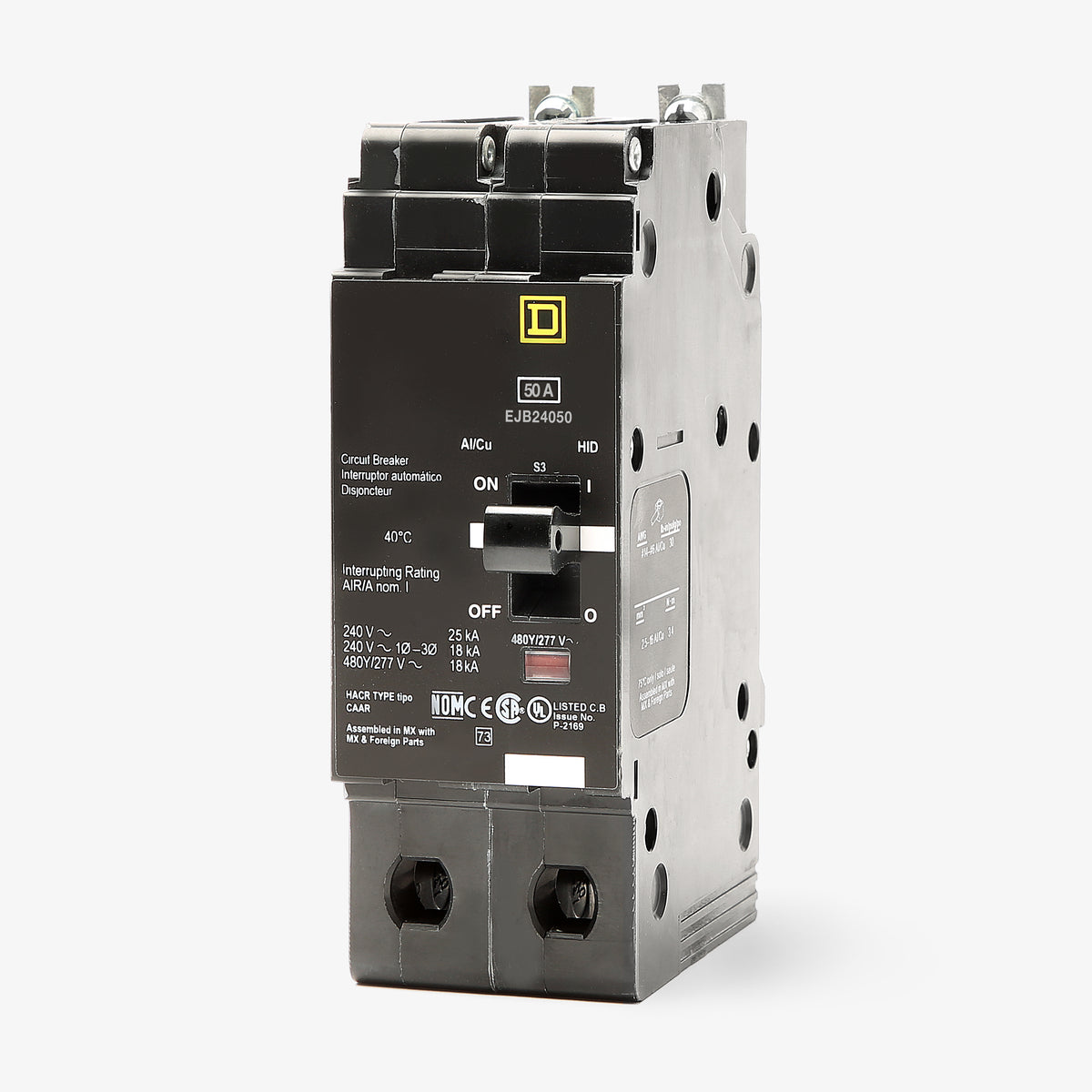

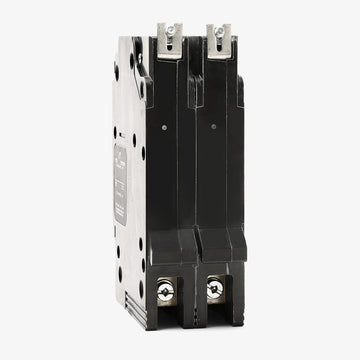

Square D EJB24050 Miniature Circuit Breaker
- 50A
- 2 Pole

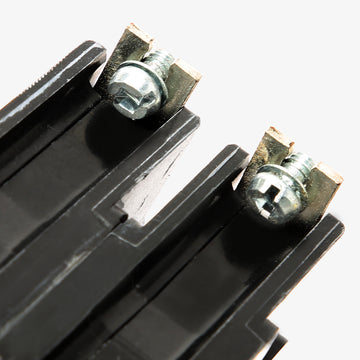

- Bolt-On
Square D
EJB24050
Miniature Circuit Breaker
Brand
Square D
SKU
EJB24050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB24050 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EJB24050 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB24050 |
| Series | EJB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | EJB24050-R |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, Common Trip |
Sold out
Quantity
Square D EJB24050 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EJB24050-R |
| Series | EJB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | EJB24050-R |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, Common Trip |
Similar Items
60A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description
Designed for heavy-duty branch circuit protection, the Square D EJB24050 is a 50A, two-pole miniature breaker. It utilizes fixed thermal-magnetic trip technology to safeguard electrical systems operating at up to 480Y/277VAC. This unit mounts into Square D NF panelboards, providing a solid bolt-on connection for reliable performance. It accepts 14-2/0 AWG copper or 12-2/0 AWG aluminum wiring. Boasting a 65kAIC rating at 480Y/277V, this E-Frame breaker includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB24050 |
| Series | EJB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | EJB24050-R |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated, Common Trip |
Product FAQs
5 answersIs the EJB24050 compatible with Square D QO or NQ panelboards?
No. The EJB24050 is an E-frame bolt-on breaker designed specifically for Square D NF series panelboards. It will not fit QO, NQ, or I-Line panelboards.
Can the EJB24050 replace an EDB24050 or EGB24050 breaker?
Yes. The EJB24050 shares the exact same physical dimensions and bolt-on mounting as the EDB24050 and EGB24050. The EJB series simply provides a higher interrupting rating (65kA at 480Y/277VAC) for systems requiring higher fault current protection.
What are the lug torque specifications for the EJB24050?

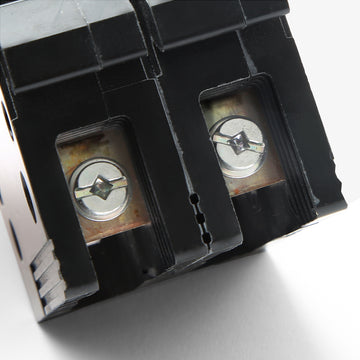

For the standard lugs, tighten 14 to 10 AWG wire to 34.5 lb-in, and 8 to 2/0 AWG wire to 49.6 lb-in. The lugs accept both copper and aluminum conductors.
Does the EJB24050 feature a trip indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears, allowing for quick identification of the faulted circuit.
Is the EJB24050 suitable for HVAC and lighting applications?
Yes, the EJB24050 is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also HID rated, making it suitable for switching High Intensity Discharge lighting loads.
