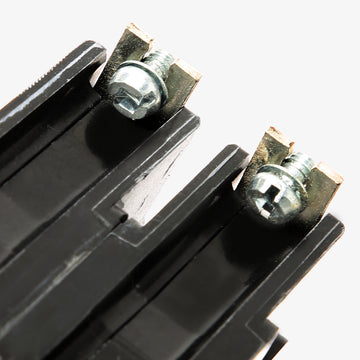

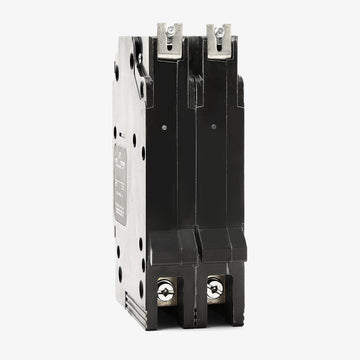

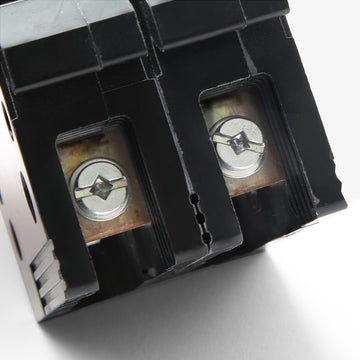

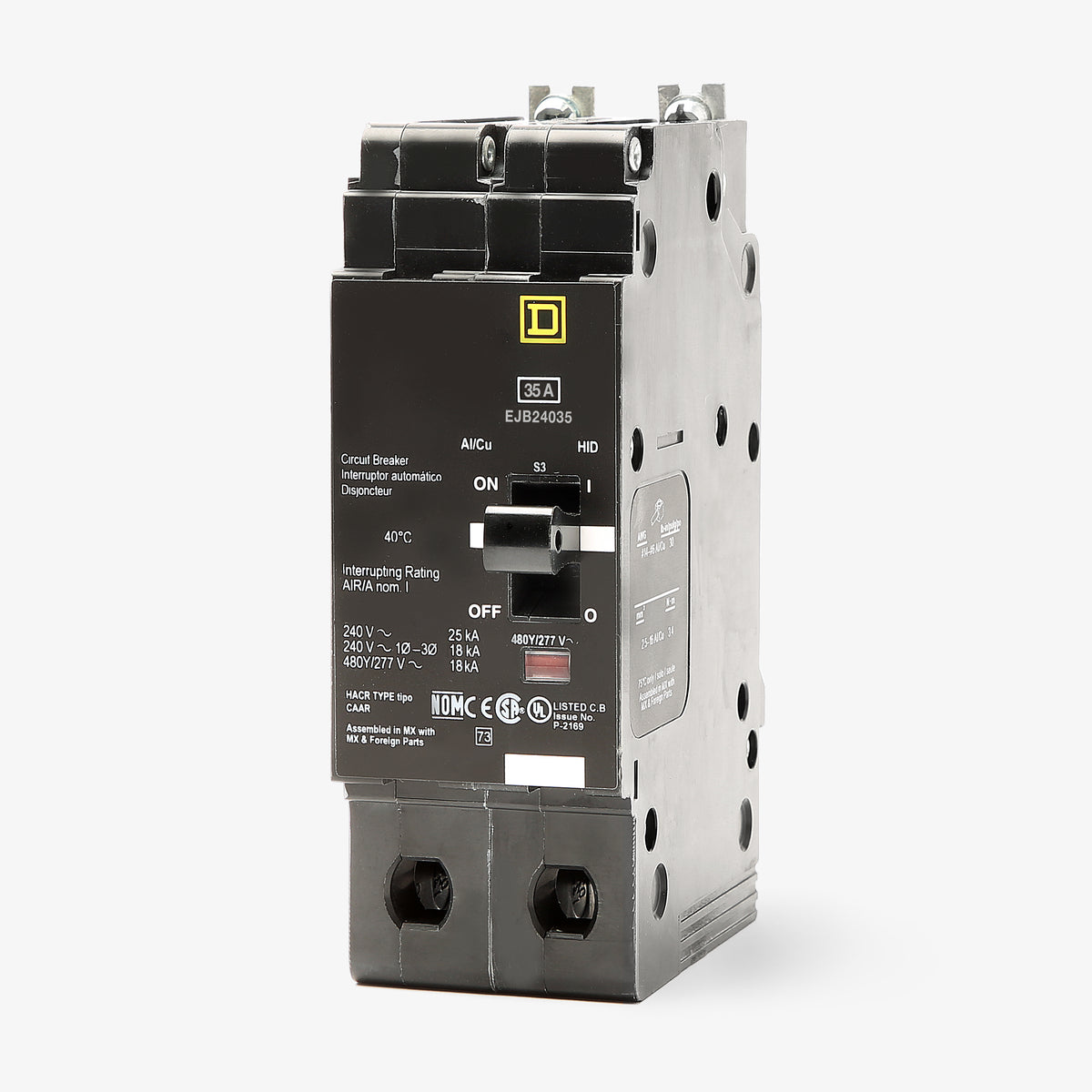

Square D EJB24035 Miniature Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Square D
EJB24035
Miniature Circuit Breaker
Brand
Square D
SKU
EJB24035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB24035 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
45A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Delivering 65 kAIC at 480Y/277V, this 35-amp Square D circuit breaker is engineered for heavy-duty commercial electrical systems. The EJB24035 utilizes thermal-magnetic trip technology to protect against overcurrents and short circuits. It fastens securely into NF series panelboards via a bolt-on mounting style, ensuring a stable connection. Along with its high interrupting rating, the breaker features a Visi-Trip visual indicator to help maintenance personnel quickly locate tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB24035 |
| Series | EJB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, HID Rated, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Square D EJB24035 circuit breaker?
The EJB24035 is an E-frame breaker designed specifically for use in Square D NF series panelboards. It is a bolt-on breaker and will not fit in QO, NQ, or I-Line panels.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
The primary difference is their interrupting capacity at 480Y/277VAC. EDB breakers are rated at 18kA, EGB breakers at 35kA, and EJB breakers provide the highest rating at 65kA. They share the same physical dimensions and fit the same NF panelboards.
Does the EJB24035 require a mounting bracket or DIN rail for installation?
No. This is a bolt-on circuit breaker that mounts directly to the busbar of a Square D NF panelboard using mounting screws. It is not designed for DIN rail or plug-on installation.
Can I use the EJB24035 to replace an older EDB24035 or EGB24035 breaker?
Yes. Because the EJB24035 has a higher interrupting rating of 65kA at 480Y/277VAC, it can safely replace EDB or EGB breakers of the same 35A rating and 2-pole configuration in NF panelboards, provided the higher rating meets or exceeds your system requirements.
Is the Square D EJB24035 suitable for reverse feeding?
Yes. Square D E-frame circuit breakers, including the EJB series, do not have a line or load designation printed on the terminals, making them suitable for reverse feed applications.
How can I tell if the EJB24035 has tripped?
The EJB24035 features a visual trip indicator. When the breaker trips due to an overload or short circuit, the handle moves to a center position and a red Visi-Trip indicator appears, making it easy to identify the tripped breaker in a crowded NF panelboard.
Are the trip settings on the EJB24035 adjustable?
No. The EJB24035 features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
