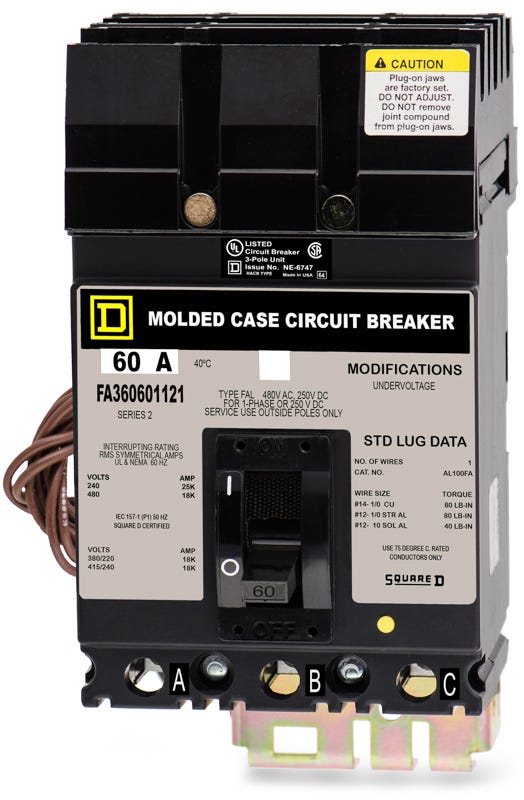

Square D FA36060-1121 Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Square D
FA36060-1121
Molded Case Circuit Breaker
Brand
Square D
SKU
FA36060-1121
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA36060-1121 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D FA36060-1121 is a 3-pole, 60A molded case circuit breaker. It delivers reliable thermal-magnetic protection for demanding electrical systems. This unit installs into Square D I-Line panelboards. As part of the legacy F-Frame family, it serves as a replacement for older installations, though it is superseded by the HDA36060UA. Equipped with a 120VAC undervoltage release, it automatically trips upon voltage drop.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA36060-1121-R |
| Series | FA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Undervoltage Release (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1121 suffix indicate on this catalog number?
The -1121 suffix signifies that the breaker includes a factory-installed 120VAC Undervoltage Release (UVR) accessory.
How does the Undervoltage Release (UVR) affect breaker operation?
The UVR coil must be continuously energized with 120VAC to allow the breaker to close. If the control voltage drops below a predetermined safe level, the UVR will automatically trip the breaker to protect the circuit.
Which panelboards are compatible with the FA36060-1121?
This plug-in molded case circuit breaker is designed exclusively for installation in Square D I-Line panelboards and switchboards.
What are the lug wire size requirements for this breaker?
The standard factory-installed lugs on this breaker accept conductor sizes from 14 AWG up to 1/0 AWG. They are dual-rated for use with either copper or aluminum wire.
Are the trip settings adjustable on the FA36060-1121?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. The trip points cannot be adjusted in the field.
Is this breaker suitable for DC voltage applications?
Yes, it is rated for use in DC electrical systems up to 250VDC, where it provides a maximum interrupting capacity of 10kA.
