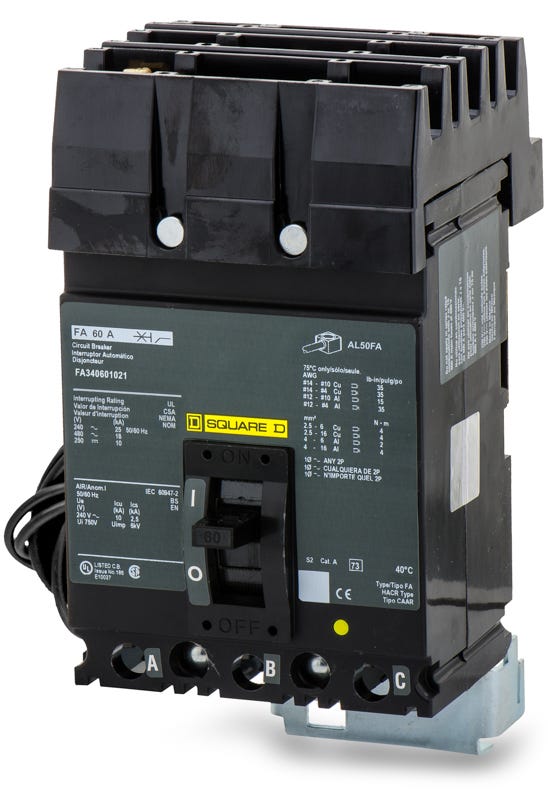

Square D FA340601021 Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Square D
FA340601021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA340601021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA340601021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA340601021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA340601021 |
| Series | FA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FA340601021 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for specialized industrial control schemes, this 60-amp F-Frame breaker includes a factory-integrated 120VAC shunt trip mechanism for remote power disconnection. The device mounts into standard Square D I-Line panelboards and switchboards, utilizing a plug-on phase connection. For facilities updating their infrastructure, this legacy component crosses over to the PowerPact H-Frame HDA36060SA. It provides thermal-magnetic LI protection with an 18kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA340601021 |
| Series | FA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the 1021 suffix indicate on the FA340601021 breaker?
The 1021 catalog suffix designates a factory-installed 120VAC shunt trip mechanism. This feature allows external control systems, relays, or emergency stop circuits to remotely trip the breaker and disconnect power.
Which panelboards accept the FA340601021 circuit breaker?
This F-Frame molded case circuit breaker is designed specifically for Square D I-Line panelboards and switchboards. It uses an I-Line plug-on connection to attach directly to the phase busbars, with standard mechanical lugs on the load side.
What is the modern PowerPact replacement for this legacy FA-frame breaker?
The legacy FA series has been superseded by the Square D PowerPact H-Frame series. The direct functional equivalent for a 60A I-Line application requiring a factory-installed 120VAC shunt trip is the PowerPact HDA36060SA.
What wire sizes are supported by the load side terminals on this breaker?
The factory-installed mechanical lugs are rated to accept 14 AWG to 1/0 AWG copper conductors, or 12 AWG to 1/0 AWG aluminum conductors.
Is the FA340601021 rated for direct current (DC) applications?
Yes, in addition to its AC interrupt ratings, this thermal-magnetic breaker carries a DC interrupting capacity of 10kA at 250VDC. This makes it suitable for integration into DC control and distribution schemes.
Are the thermal and magnetic trip elements adjustable on this 60A breaker?
No, the FA340601021 features a standard long-time and instantaneous (LI) trip unit with fixed thermal and fixed magnetic protection thresholds. It does not include field-adjustable trip dials.
