Square D FC34060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Square D
FC34060
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FC34060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34060 |
| Series | FC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Quantity
Square D FC34060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34060-R |
| Series | FC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Similar Items
45A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description

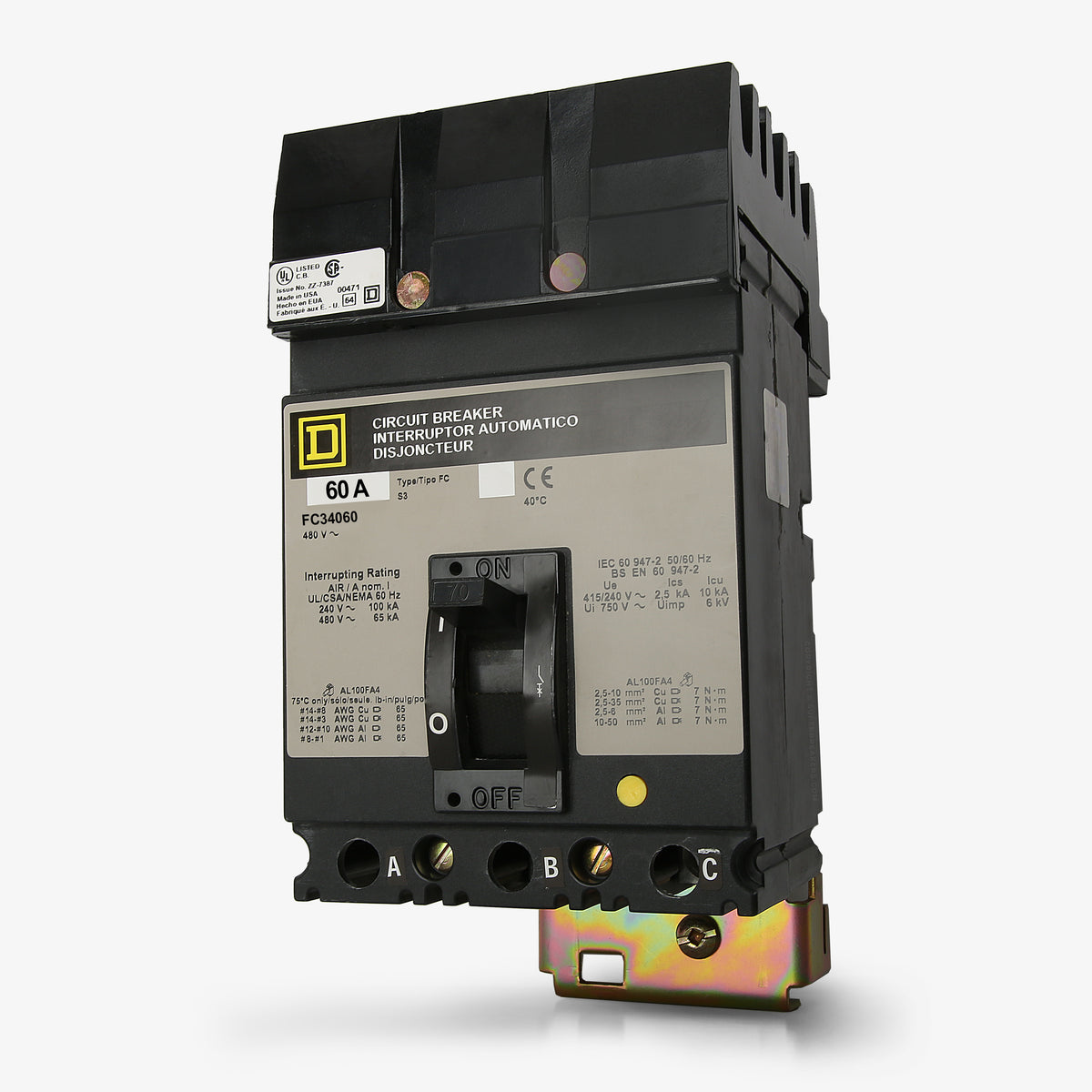

Engineered for commercial applications, the Square D FC34060 is a 3-pole, 60A F-frame molded case circuit breaker. It provides dependable long-time and instantaneous (LI) thermal-magnetic protection. This unit mounts into Square D I-Line panelboards using a secure plug-on connection. For infrastructure upgrades, it is replaced by the PowerPact HJA36060. Rated 65kAIC at 480VAC, it features a Visi-Trip indicator for rapid fault identification and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34060 |
| Series | FC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards accept the FC34060 circuit breaker?
This breaker is specifically designed for installation in Square D I-Line panelboards and switchboards. It is not compatible with standard bolt-on or QO style load centers.
How is the FC34060 installed into the panelboard?

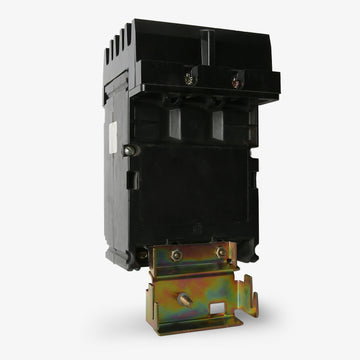

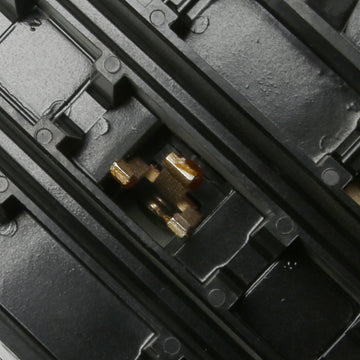

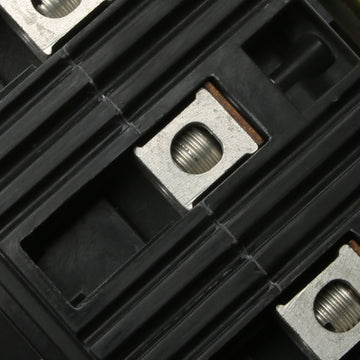

It utilizes an I-Line style plug-in connection. The line side of the breaker features jaws that press directly onto the panelboard bus assembly, while the load side uses standard mechanical lugs for wire termination.
Is the Square D FC34060 still manufactured?
The FC frame is a legacy product that has been phased out of active production by Schneider Electric. For new infrastructure upgrades, it is typically replaced by the PowerPact H-frame series, such as the HJA36060, though the FC34060 remains available for maintaining existing I-Line systems.
What does the C in the FC frame designation represent?
In Square D F-frame breakers, the second letter indicates the interrupting capacity. The C in FC designates a high interrupting rating, providing 65kAIC at 480VAC, which is higher than standard FA or FH frame breakers.
What type of protection does the LI trip function provide?
The LI designation means the thermal-magnetic trip unit includes Long-time and Instantaneous functions. The long-time thermal element protects against sustained overloads, while the instantaneous magnetic element responds immediately to high-level short circuits.
