Square D HJL36060SA Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Square D
HJL36060SA
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36060SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

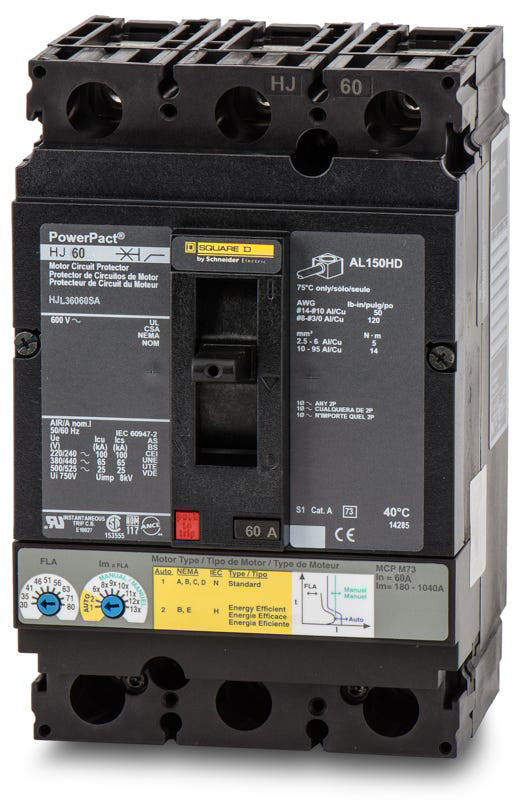

Square D HJL36060SA - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Providing reliable long-time and instantaneous (LI) protection, this 60-amp PowerPacT H-frame breaker comes equipped with a 120VAC shunt trip for remote tripping capabilities. It serves as a seamless upgrade for legacy F-frame FH360601021 breakers, mounting effortlessly into Square D NQ panelboards, NF panelboards, and industrial control panels. Rated for 65kA at 480VAC, the thermal-magnetic unit features a Visi-Trip indicator to quickly identify tripped circuits during routine maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36060SA |
| Series | HJL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQ Panelboards, Square D NF Panelboards, Square D Switchboards, Industrial Control Panels |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Mercury Free, PVC Free, Visual Trip Indicator, Interchangeable Trip Unit |
Product FAQs
8 answersWhat panelboards and switchboards are compatible with the HJL36060SA?
The HJL36060SA is designed for use in Square D NQ and NF panelboards, Square D switchboards, and industrial control panels.
What does the SA suffix indicate on the HJL36060SA?
The SA suffix means this breaker comes factory-equipped with a 120VAC shunt trip (rated 100 to 130VAC or 125VDC), allowing for remote tripping of the circuit breaker.
Is the HJL36060SA rated for DC applications?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with an interrupting capacity of 20kA.
Does the HJL36060SA offer adjustable trip settings?
No, it features a fixed thermal and fixed magnetic trip unit. If your application requires adjustable long-time or instantaneous settings, you will need a breaker equipped with a Micrologic electronic trip unit instead.
How does the HJL36060SA mount into a system?
This is a unit-mount, feed-thru breaker. It bolts directly to the mounting surface and uses cable-in and cable-out lug connections on both the line and load sides, rather than plugging into an I-Line bus.
Can I use aluminum wire with the HJL36060SA?
Yes, the factory-installed lugs on this breaker are dual-rated for both aluminum and copper wire, accepting sizes from 14 AWG to 3/0 AWG.
Can the HJL36060SA be reverse fed?
Yes, this PowerPacT H-frame breaker can be reverse fed (back-fed) in applications that require it, as it does not have restrictive line and load markings.
Can the HJL36060SA replace an older Square D F-frame breaker?
The PowerPacT H-frame is the modern replacement for legacy Square D F-frame breakers, such as the FAL or FHL series. However, because the physical dimensions and mounting footprints differ, you may need retrofit hardware or a new mounting bracket when upgrading.
