Square D QO380VH Miniature Circuit Breaker
- 80A
- 3 Pole
- Plug-On
Square D
QO380VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO380VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

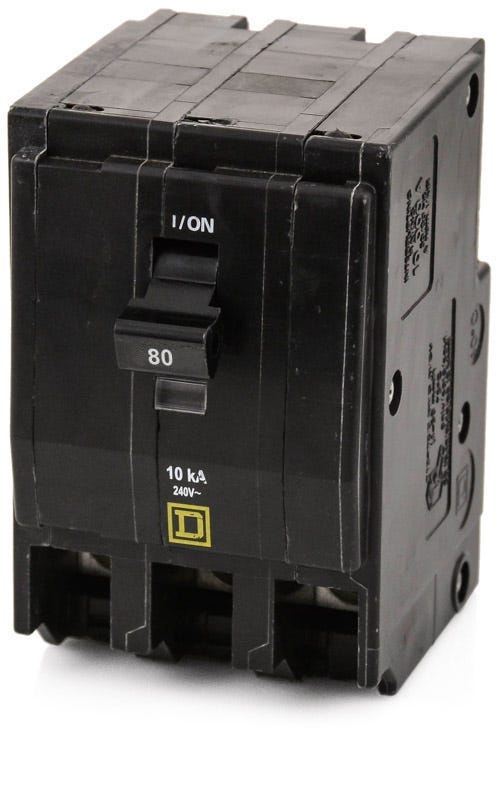

Square D QO380VH - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Engineered for systems with higher fault currents, the Square D QO380VH is a high-interrupting capacity circuit breaker. This three-pole, 80-amp unit utilizes proven thermal-magnetic technology to protect electrical circuits. The plug-on design allows for quick installation. It is fully compatible with Square D QO load centers, NQ panelboards, and Speed-D switchboards. Boasting an upgraded 22kAIC rating at 240VAC, this breaker features the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO380VH |
| Series | QO |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, Speed-D Switchboards |
| Wire Gauge | 4 AWG-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity, Common Trip |
Product FAQs
6 answersWhat does the "VH" in the QO380VH catalog number indicate?
The "VH" designates a very high interrupting rating. This breaker provides a 22kAIC rating at 120/240VAC and 240VAC, which is higher than the 10kAIC rating found on standard QO breakers.
Can I install the QO380VH in a Square D Homeline panel?
No. QO and Homeline breakers are not interchangeable. The QO380VH is designed exclusively for Square D QO load centers, NQ panelboards, and Speed-D switchboards.
How many panel spaces does the QO380VH require?
As a 3-pole breaker, it requires three standard 3/4-inch spaces in a compatible QO load center or NQ panelboard.
Is there a bolt-on version of this 80A breaker available for NQOD or NQ panelboards?
Yes. If your panelboard requires a bolt-on connection rather than a plug-on type, the correct catalog number is QOB380VH.
Does the QO380VH feature a tripped circuit indicator?
Yes. This breaker includes the Square D Visi-Trip indicator, which displays a highly visible red flag when the breaker has tripped, making it easy to identify the faulted circuit in a crowded panel.
What wire sizes are accepted by the box lugs on the QO380VH?
The box lugs on this 80A breaker accept 4 AWG to 2/0 AWG aluminum or copper wire. Always ensure the connections are torqued to the manufacturer specifications printed on the breaker label.
