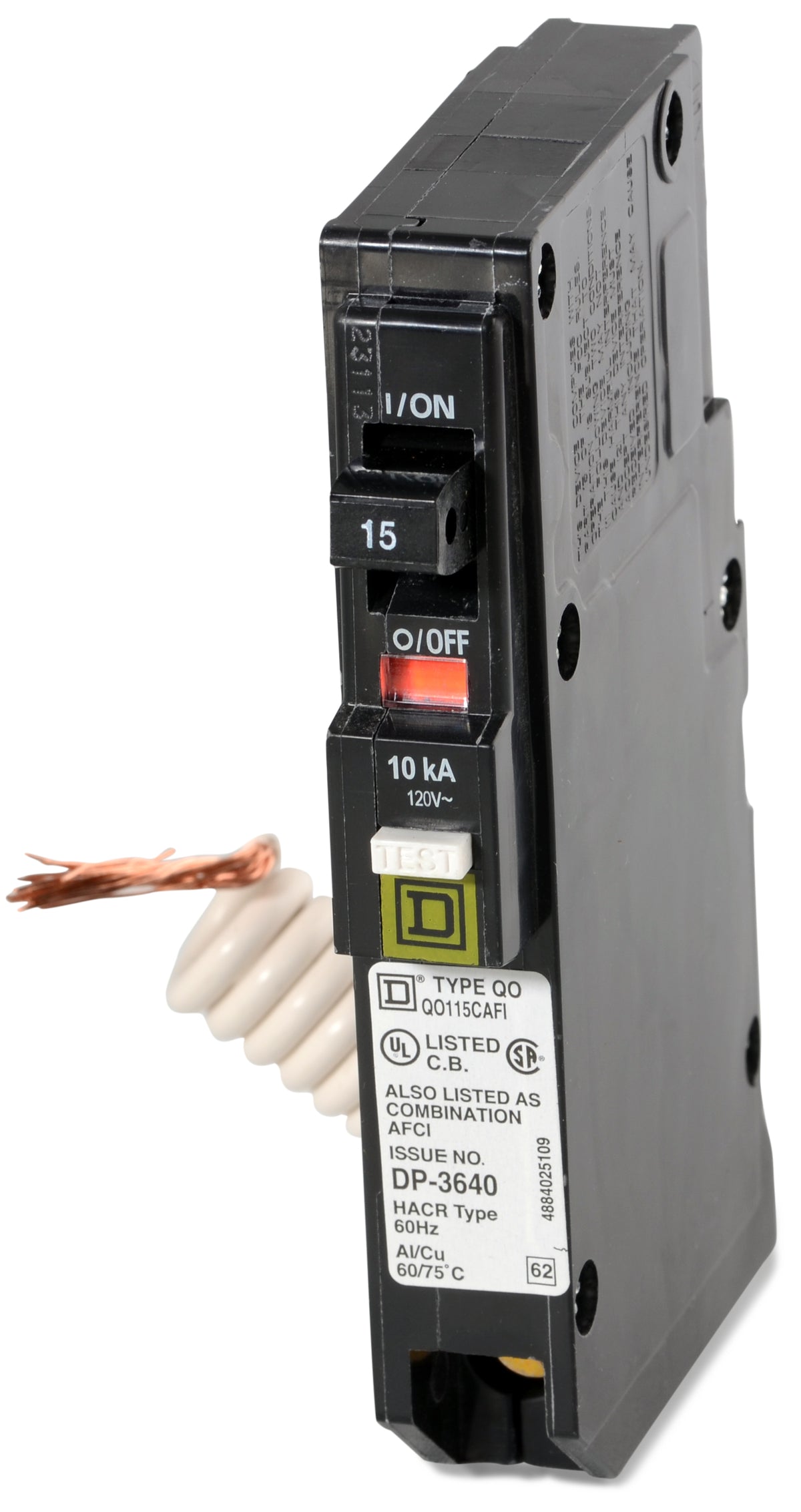

Square D QO115CAFIC AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Square D
QO115CAFIC
AFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO115CAFIC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO115CAFIC - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Supplied in clamshell packaging, the Square D QO115CAFIC is a 15A single-pole combination arc-fault circuit interrupter. It is engineered for residential and commercial use to detect dangerous arcing. This breaker installs into QO load centers, NQ, and NQOD panelboards. It utilizes a plug-on mounting style and requires a pigtail neutral connection to the panel. Delivering a 10kAIC rating at 120V, it includes a Visi-Trip indicator and Time-Saver Diagnostics for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO115CAFIC |
| Series | QO |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, CSA C22.2 No. 5, HACR, RoHS, REACh |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersCan I install this pigtail neutral breaker in a Plug-on Neutral (PON) QO load center?
Yes. You can use a pigtail neutral breaker in a Plug-on Neutral panel by connecting the coiled white pigtail wire directly to the neutral bus bar.
Is there a Plug-on Neutral equivalent for this breaker?
Yes. If you are installing in a Plug-on Neutral (PON) QO load center and want to eliminate the pigtail connection, use catalog number QO115PCAFI.
What does Combination Arc Fault (CAFCI) mean compared to older AFCI breakers?
Combination Arc Fault breakers detect both series and parallel arcing faults. Older branch feeder AFCI models only detected parallel arcs. CAFCI protection is required by modern NEC standards for most residential living spaces.
Will the QO115CAFIC fit in a Square D Homeline panel?
No. Square D QO and Homeline series are not interchangeable. This breaker is designed exclusively for QO load centers, NQ panelboards, and NQOD panelboards.
Does the QO115CAFIC provide ground fault (GFCI) protection?
No. This is a Combination Arc Fault (CAFCI) breaker only. If the circuit requires both arc fault and ground fault protection, you must use a Dual Function (DF) breaker or pair this breaker with a GFCI receptacle.
What is the purpose of the white pigtail wire on the QO115CAFIC?
The pigtail wire connects to the neutral bus bar in the panel. It powers the internal electronics required for arc fault detection and provides the neutral return path for the branch circuit.
Does this breaker include diagnostic features for troubleshooting?
Yes. The QO115CAFIC features Time-Saver Diagnostics. By following the Square D diagnostic sequence, the breaker will indicate whether it tripped due to an arc fault or a standard overload or short circuit.
