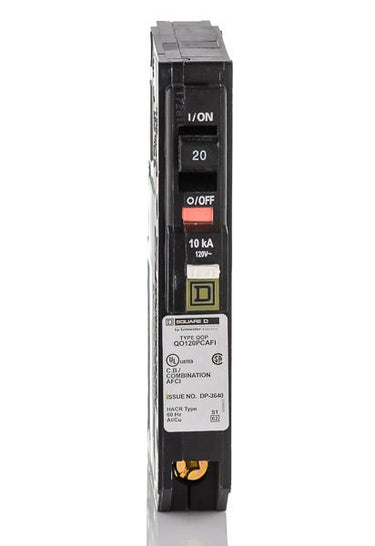

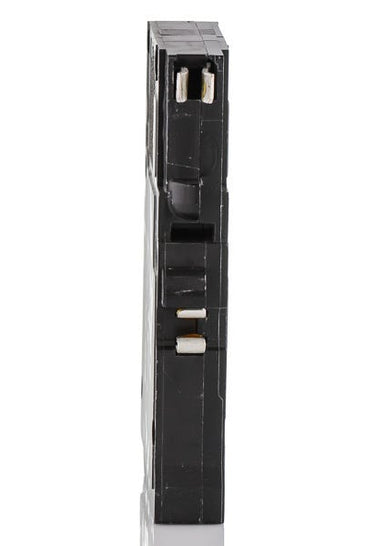

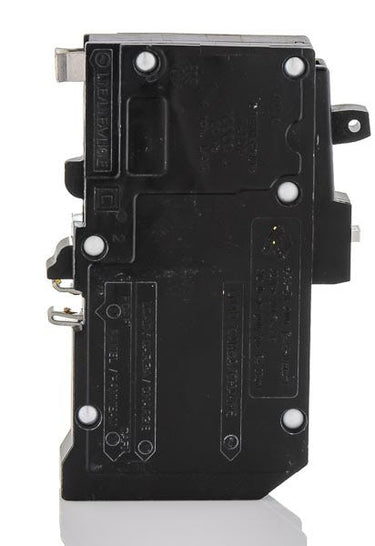

Square D QO120CAFI AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
QO120CAFI
AFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO120CAFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO120CAFI - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO120CAFI - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO120CAFI |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Square D QO120CAFI - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO120CAFI-R |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
Description
Part of the industry-leading QO series, the Square D QO120CAFI delivers comprehensive combination arc fault protection. This 1-pole, 20A miniature circuit breaker detects both series and parallel arcing conditions, offering superior defense against electrical fires in residential and commercial spaces. The plug-on format ensures a secure fit into QO load centers, NQ, and NQOD panelboards.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO120CAFI |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
8 answersDoes the QO120CAFI replace older Square D AFCI breakers?
Yes. The QO120CAFI replaces the discontinued QO120AFI [1.2.2]. The newer CAFI model provides combination arc fault protection, which detects both series and parallel arcs, meeting modern NEC requirements that older branch or feeder AFI models do not.
Will the QO120CAFI fit in a Plug-on Neutral (PON) load center?
Yes. While the QO120CAFI is a pigtail neutral breaker, it is fully compatible with Plug-on Neutral load centers. You simply connect the breaker's coiled pigtail directly to the neutral bus bar. For a breaker without a pigtail that connects directly to a PON bus, you would use the QO120PCAFI.
Can I install this breaker in a Square D Homeline panel?
No. The QO120CAFI is part of the QO series and will only fit QO load centers, NQ panelboards, and NQOD panelboards. Homeline panels utilize a different mounting format and require HOM series breakers.
How do I wire the neutral connections on the QO120CAFI?

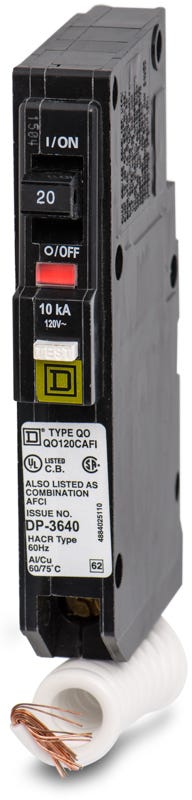

Connect the coiled white pigtail wire extending from the breaker to the panel's neutral bus bar. Then, terminate the white neutral wire coming from your branch circuit load directly into the neutral terminal located on the breaker itself.
What does CAFI stand for on this breaker?
CAFI stands for Combination Arc Fault Circuit Interrupter. Unlike older AFCI models that only detect parallel arcs, combination AFCI breakers detect both parallel arcs and low-energy series arcs to provide comprehensive fire protection for the entire circuit.
Does this breaker feature Time Saver Diagnostics?
Yes. The QO120CAFI includes Square D Time Saver Diagnostics. If the breaker trips, you can use the test button procedure to determine if the trip was caused by a ground fault, an arc fault, or a standard overload or short circuit, significantly reducing troubleshooting time.
Is the QO120CAFI a dual function breaker?
No. This breaker provides combination arc fault (CAFI) protection only. It does not provide Class A ground fault (GFCI) protection. If your circuit requires both AFCI and GFCI protection, you need a dual function breaker, such as the QO120DF.
What is the purpose of the white button on the front of the breaker?
The white button is a push-to-test feature. Once the breaker is installed and energized, pressing this button simulates an arc fault to verify that the breaker's internal electronics and tripping mechanism are functioning properly.
