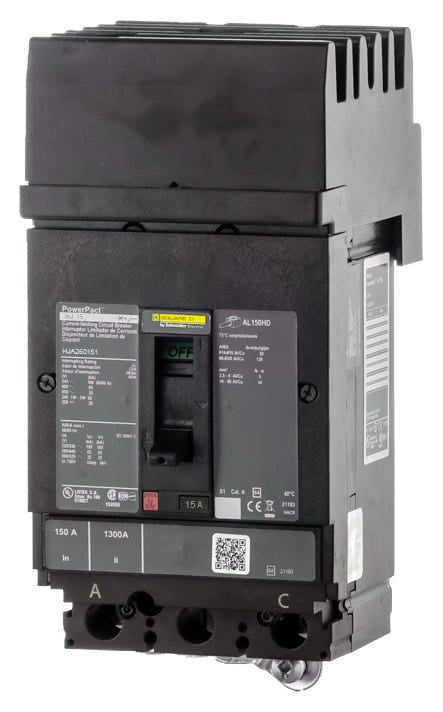

Square D HJA260151 Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
HJA260151
Molded Case Circuit Breaker
Brand
Square D
SKU
HJA260151
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJA260151 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D HJA260151 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJA260151 |
| Series | HJA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HJA260151 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJA260151 |
| Series | HJA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT H-Frame series, this 15-amp molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial electrical systems. It installs into Square D I-Line panelboards and switchboards, serving as a modern replacement for legacy FA26015AB and FH26015AB models. Featuring a factory-configured AB phase connection and a robust 100kA interrupting rating at 240V, it delivers current-limiting performance for demanding distribution networks.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJA260151 |
| Series | HJA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AB (Factory Configured) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat type of panelboards accept the HJA260151?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection and cannot be used in standard QO, Homeline, or NQ/NF unit-mount panels.
What does the trailing '1' in the HJA260151 catalog number indicate?
The trailing '1' indicates that this 2-pole breaker is factory-configured for an AB phase connection on the I-Line bus stack.
What does the 'J' in the HJA260151 part number signify?
The 'J' designates the interrupting rating level within the PowerPacT H-Frame series. For this breaker, it provides a high interrupting capacity of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.
What type of load-side terminals are included with the HJA260151?
The breaker comes with standard mechanical lugs on the load side, which accept 14 AWG to 3/0 AWG aluminum or copper wire. The line side utilizes the I-Line plug-on connection.
How does the I-Line connection work on this breaker?
The breaker features plug-on phase jaws that ratchet firmly onto the I-Line bus stack using a single retaining screw. This blow-on connection design eliminates the need to assemble separate connectors to the bus bar, saving installation time.
Can the HJA260151 replace older Square D breakers?
Yes, the PowerPacT H-Frame HJA260151 serves as a modern replacement for legacy 15A, 2-pole I-Line breakers such as the FA26015AB and FH26015AB models.
Is this breaker suitable for DC applications?
Yes, the HJA260151 is rated for use in DC systems up to 250VDC, with an interrupting rating of 20kA at 250VDC.
What type of trip unit does the HJA260151 use?
It uses a thermal-magnetic trip unit with fixed thermal (overload) and fixed magnetic (instantaneous short-circuit) sensing elements. It does not feature an adjustable electronic trip unit.
