Square D BDL26035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Unit Mount
Square D
BDL26035
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

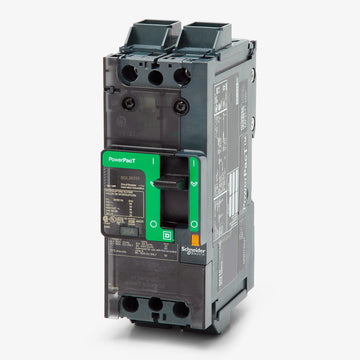

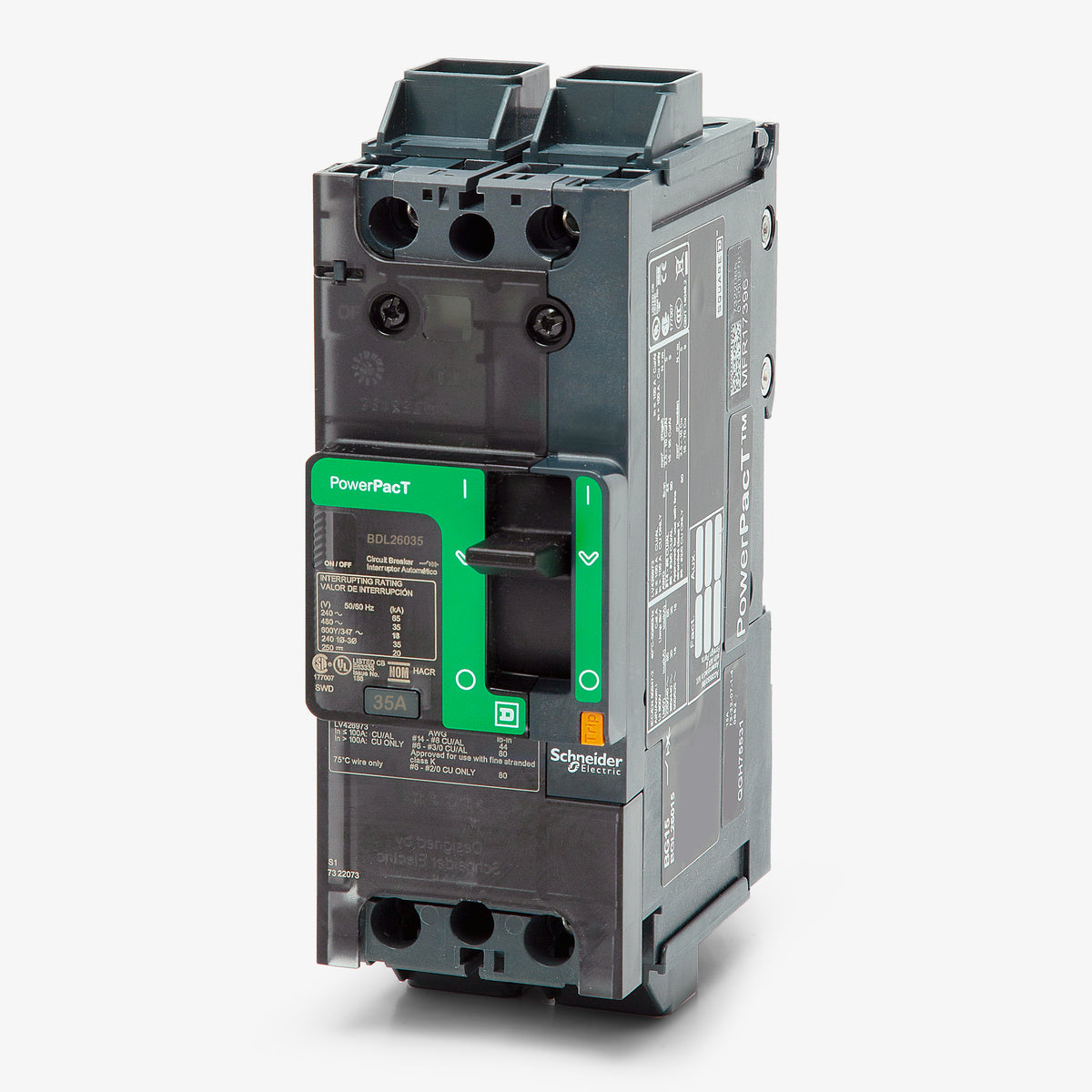

Square D BDL26035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D BDL26035 is a 2-pole, 35A molded case circuit breaker from the PowerPact B family. It provides reliable thermal-magnetic protection for control panels. This unit-mount breaker features integrated DIN rail compatibility. It serves as a drop-in replacement for discontinued FAL26035 breakers, simplifying facility upgrades. Rated 18 kAIC at 480VAC, it includes EverLink lugs that combat cable creep for a secure, long-term connection.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL26035 |
| Series | BDL |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
8 answersHow is the BDL26035 circuit breaker mounted?

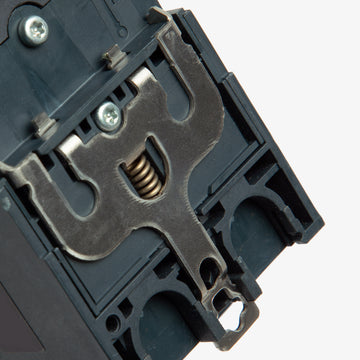

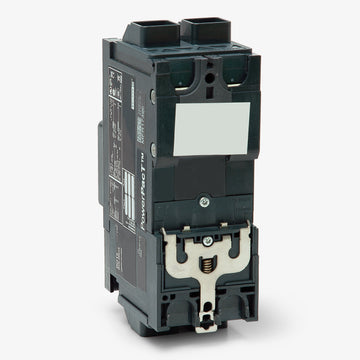

This unit-mount breaker features traditional back-pan mounting with screws, as well as integrated DIN rail compatibility for flexible installation in industrial control panels and switchboards.
Can the BDL26035 replace older Square D circuit breakers?
Yes, this PowerPacT B-frame breaker serves as a direct drop-in replacement for the discontinued FAL26035, simplifying facility upgrades without requiring major panel modifications.
What type of wire connections does this breaker use?

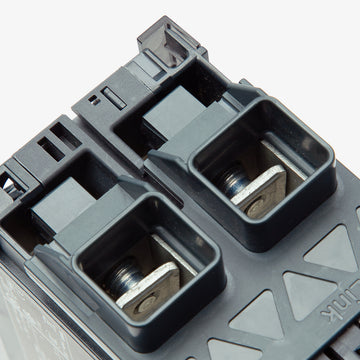

It is equipped with patented EverLink lugs on both the line and load ends. These lugs are designed to combat cable creep and reduce the loosening of cables over time, ensuring a secure connection for 14 AWG to 3/0 AWG aluminum or copper wire.
What is the recommended tightening torque for the EverLink lugs on this breaker?
For the integrated EverLink lugs, the recommended tightening torque is 44.25 lb-in (5 N.m) for 14 to 4 AWG wire, and 79.66 lb-in (9 N.m) for 3 to 3/0 AWG wire.
Is the BDL26035 suitable for reverse feeding?
Yes, PowerPacT B-frame circuit breakers have sealed trip units and can be reverse fed. They can be supplied from either the top or the bottom without any reduction in performance.
Can this breaker be used in DC applications?
Yes, the BDL26035 is rated for use in DC circuits up to 250VDC, where it provides a 10kA interrupting capacity.
Are the trip settings on the BDL26035 adjustable?
No, this breaker features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip thresholds are factory-set and cannot be field-adjusted.
Can I install the BDL26035 in an I-Line panelboard?
No, the BDL26035 is a unit-mount breaker designed for back-pan or DIN rail installation. For I-Line panelboards, you will need a B-frame breaker with an I-Line plug-on connection, such as a BDA or BGA frame.
