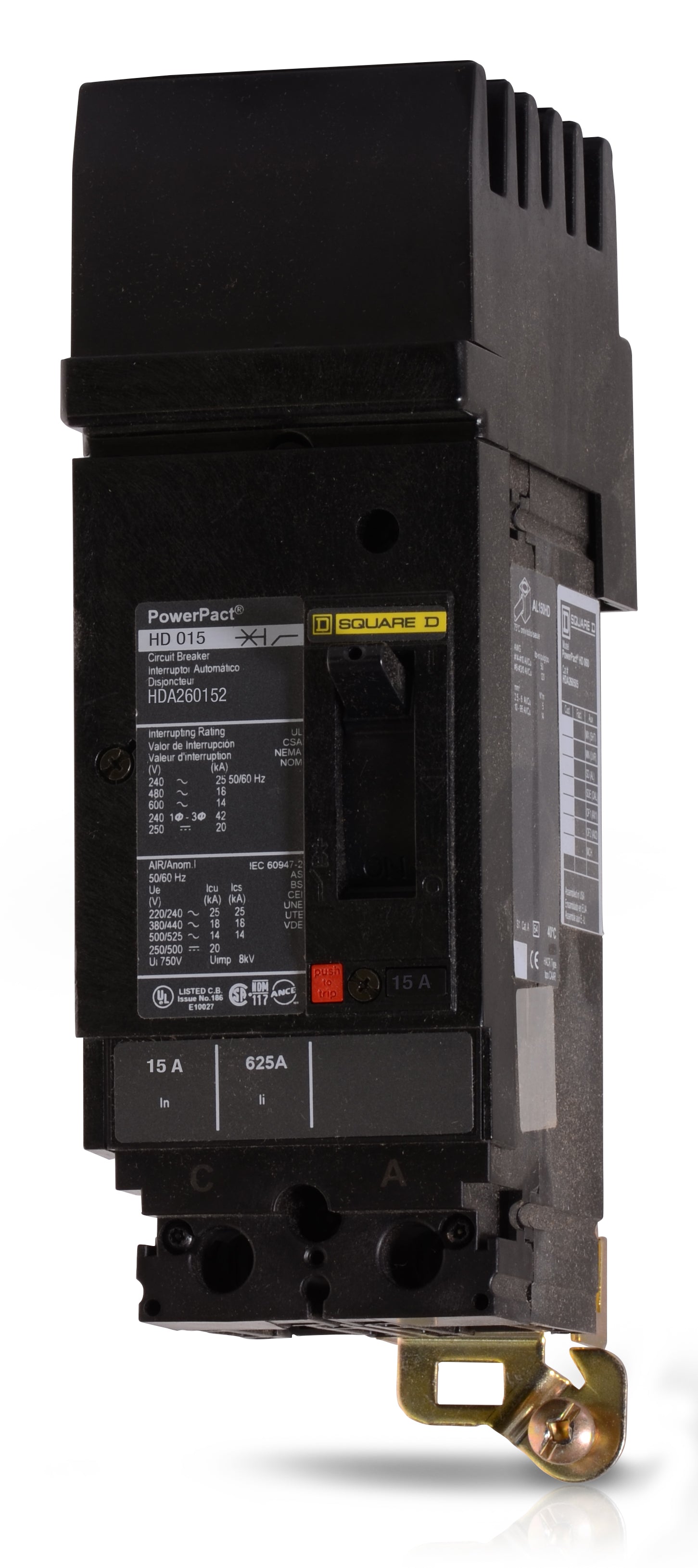

Square D HDA260152 Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
HDA260152
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA260152
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA260152 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust electrical systems, the Square D HDA260152 provides 15A of thermal-magnetic protection in a 2-pole configuration. As part of the PowerPacT H-Frame series, it utilizes long-time and instantaneous (LI) trip functions to handle overloads and short circuits. This breaker is built for Square D I-Line panelboards and switchboards. It replaces older FA26015 models. Featuring an AC phase connection, it delivers an 18 kAIC rating at 480VAC and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | HDA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Phase Connection AC |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Phase Connection AC, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panels accept the HDA260152 circuit breaker?
This breaker mounts directly into Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-in connection for quick installation on the busbar.
Does the HDA260152 replace older Square D breakers?
Yes, this PowerPacT H-frame breaker serves as a direct, drop-in replacement for legacy 2-pole, 15-amp FA series I-Line breakers, including the FA26015.
What does the D in the HDA260152 catalog number mean?
The D designates the interrupting rating tier within the PowerPacT series. For H-frame breakers, the D-rating provides 25 kAIC at 240 VAC, 18 kAIC at 480 VAC, and 14 kAIC at 600 VAC.
What wire sizes and materials can be used with the HDA260152?
The standard mechanical lugs on this breaker accept wire gauges ranging from 14 AWG to 3/0 AWG. The terminals are dual-rated for both aluminum and copper (Al/Cu) conductors.
Are the trip settings adjustable on this breaker?
No, the HDA260152 features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions.
Can the HDA260152 be used in DC circuits?
Yes, in addition to its AC ratings, this breaker is rated for 250 VDC applications with a 20 kAIC interrupting rating.
