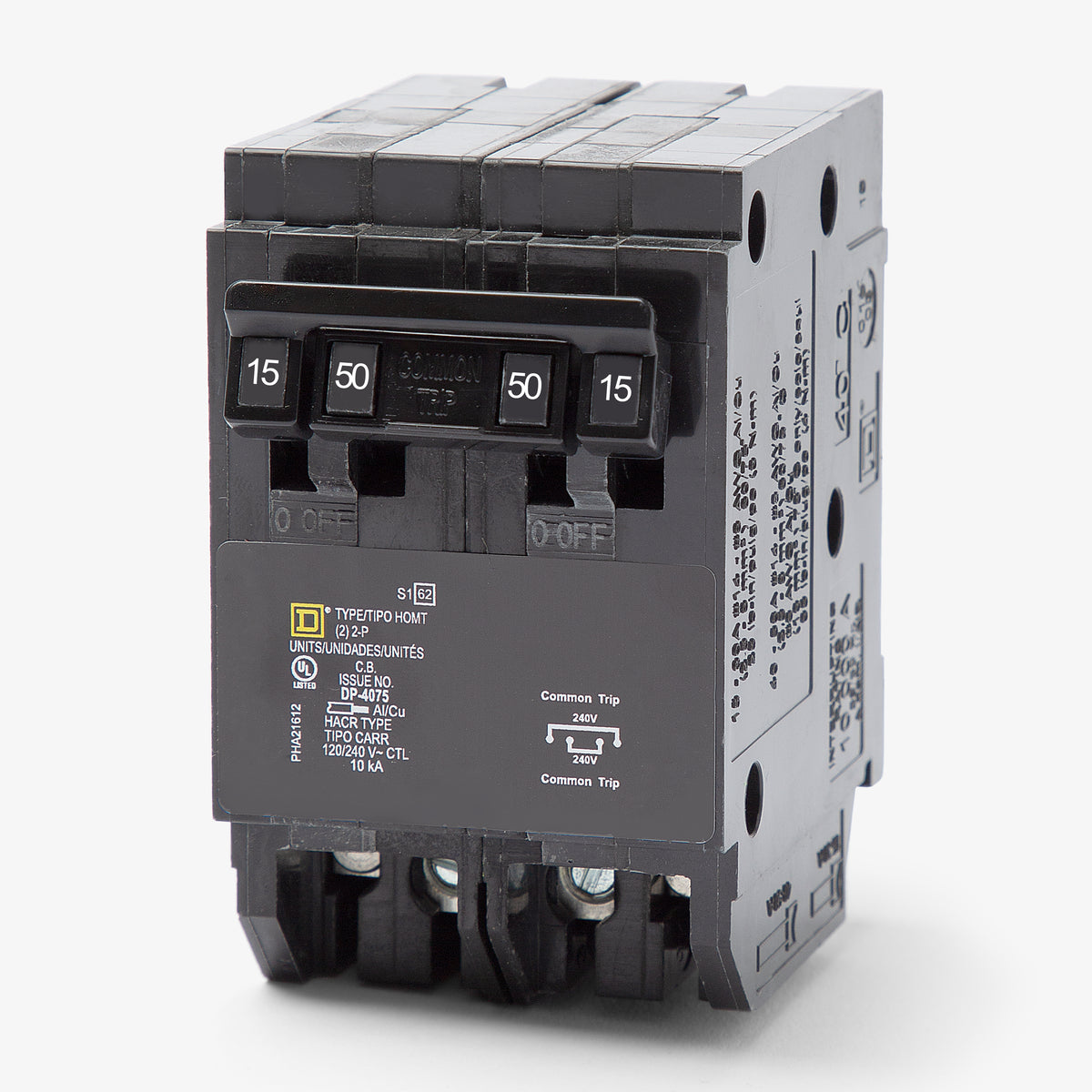

Square D HOMT215250 15/50A Quad Tandem Miniature Circuit Breaker
- 15/50A
- 4 Pole
- Plug-On
Square D
HOMT215250
15/50A Quad Tandem Miniature Circuit Breaker
Brand
Square D
SKU
HOMT215250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOMT215250 - 15/50A Quad Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
30/50A Quad Tandem Miniature Circuit Breaker
15/40A Quad Tandem Miniature Circuit Breaker
20/40A Quad Tandem Miniature Circuit Breaker
Description
Built to conserve enclosure space, the Square D HOMT215250 delivers two independent two-pole circuits in a single unit. It features a 15A section and a 50A section, requiring only two pole spaces. This plug-on breaker is engineered exclusively for Square D Homeline load centers. Terminals accommodate 14-8 AWG wire on the 15A side and 14-6 AWG on the 50A side. Delivering a 10 kAIC rating at 120/240VAC, it provides reliable thermal-magnetic protection and is HACR rated for HVAC systems.Specifications
| Brand | Square D |
|---|---|
| Series | HOMT |
| Amperage | 15/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (15A), 14-6 AWG (50A) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | Quad Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Tandem |
Product FAQs
6 answersWhat load centers are compatible with the HOMT215250 quad breaker?
This breaker is engineered exclusively for Square D Homeline load centers and Homeline Combination Service Entrance Devices (CSEDs). It cannot be installed in Square D QO panels or load centers from other manufacturers.
How many panel spaces does the HOMT215250 require?
This quad tandem breaker requires two standard 1-inch pole spaces in a Homeline panel. It provides two independent 2-pole circuits in the footprint typically required for a single 2-pole breaker.
How are the 15A and 50A circuits configured on the HOMT215250?
The HOMT215250 provides two independent 2-pole circuits. The outer poles form a 15A 2-pole circuit, while the inner poles form a 50A 2-pole circuit. Both circuits feature an integrated common trip.
Is the HOMT215250 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it compliant for use with heating, air conditioning, and refrigeration equipment that requires a HACR-marked circuit breaker.
Does the HOMT215250 provide a common trip for both circuits?
Yes, the inner 50A poles and the outer 15A poles each have an independent, integrated common trip. A fault on one leg of a circuit will trip both legs of that specific 2-pole circuit simultaneously.
Can the HOMT215250 be used to consolidate existing circuits?
Yes, this quad tandem breaker is frequently used during panel upgrades to replace two standard 2-pole Homeline breakers (one 15A and one 50A). This frees up two pole spaces, provided the load center is designed to accept tandem breakers in the target slots.
