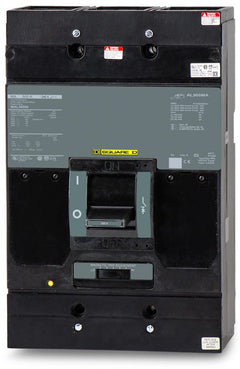

Square D MAL365001212 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Square D
MAL365001212
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL365001212
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL365001212 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

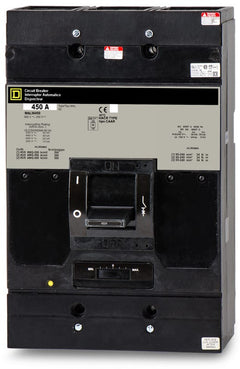

450A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
Description
Providing robust thermal-magnetic protection, the Square D MAL365001212 is a 500A, 3-pole molded case circuit breaker. It features an adjustable magnetic trip and comes equipped with a factory-installed 1A/1B auxiliary switch, denoted by the 1212 catalog suffix. This M-Frame MCCB is engineered for unit mounting in Square D switchboards, enclosures, and motor control centers. It delivers a 30kAIC interrupting rating at 480VAC. The modern equivalent is the MGL36500 with an added aux switch.Specifications
| Brand | Square D |
|---|---|
| Series | MAL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL_ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Auxiliary Switch (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat equipment is the MAL365001212 designed to be installed in?
This unit-mount breaker is compatible with Square D switchboards, motor control centers, and standalone enclosures.
What wire sizes are supported by the terminals on this 500A breaker?
The factory lugs accommodate three 3/0 AWG to 500 kcmil conductors per phase. The terminals are rated for both aluminum and copper wire.
What does the 1212 suffix indicate on the MAL365001212 catalog number?
The 1212 suffix designates a factory-installed auxiliary switch. This provides 1A/1B (one normally open and one normally closed) contacts for remote status signaling.
How does the trip unit function on the MAL365001212?
This legacy M-frame breaker uses a thermal-magnetic trip unit. It provides fixed thermal protection for long-time overloads and an adjustable magnetic trip for instantaneous short-circuit protection.
Is this Square D M-frame breaker rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is certified for use in DC systems up to 250VDC, delivering a 14kA interrupting rating.
Does this breaker mount onto an I-Line bussing system?
No, the MAL365001212 is a unit-mount, feed-thru circuit breaker. It requires bolted wire connections for both the line and load sides and cannot be plugged into an I-Line panelboard.
Is the MAL365001212 a current production PowerPact breaker?
No, the MAL frame is a legacy molded case circuit breaker from Square D. It predates the modern PowerPact M-frame series but remains available for replacing existing units in older switchboards and motor control centers.
