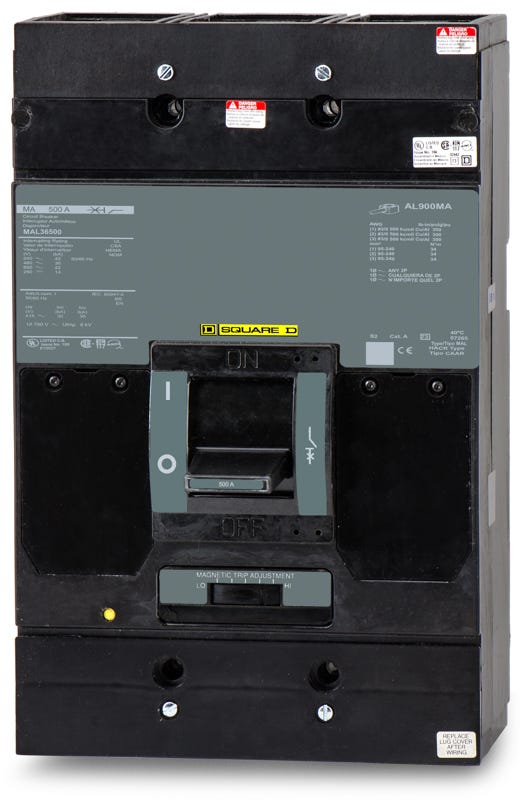

Square D MAL36500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Square D
MAL36500
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL36500
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL36500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MAL36500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL36500 |
| Series | MAL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Square D MAL36500 - 500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL36500-R |
| Series | MAL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
700A 3 Pole Molded Case Circuit Breaker
1000A 3 Pole Molded Case Circuit Breaker
Description
Serving as a high-capacity protection device, the Square D MAL36500 is a 3-pole, 500A molded case circuit breaker. It is engineered to safeguard heavy commercial circuits against overloads and short circuits. This unit mount MCCB integrates into Square D switchboards, motor control centers, and enclosures. As a legacy M-Frame component, it is replaced by the PowerPact MGL36500 for newer installations. The breaker utilizes thermal-magnetic trip technology, offering a 42kAIC rating at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL36500 |
| Series | MAL |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersIs the Square D MAL36500 circuit breaker still manufactured?
The MAL36500 is an obsolete legacy M-frame breaker. For new installations or system upgrades, Schneider Electric recommends replacing it with the PowerPact M-frame series, such as the MGL36500. Exact cross-references depend on the required fault current ratings and enclosure clearances.
What wire sizes do the factory lugs on the MAL36500 accept?
The standard AL900MA mechanical lugs accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
What is the adjustable magnetic trip range for this 500A breaker?
The instantaneous magnetic trip is adjustable from a low setting of 2500A to a high setting of 5000A. The thermal long-time trip function remains fixed at 500A.
Can the MAL36500 be installed in an I-Line panelboard?
No, this is a unit-mount, feed-thru circuit breaker designed for bolt-on installation in Square D switchboards, motor control centers, and individual enclosures. It lacks the plug-on jaw connections required for I-Line bussing.
Does the MAL36500 carry a DC voltage rating?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is rated for 250VDC applications with an interrupting capacity of 14 kAIC.
Can I upgrade the MAL36500 with a Micrologic electronic trip unit?
No, the legacy MAL frame is strictly a thermal-magnetic circuit breaker. If advanced electronic trip functions like short-time or ground-fault protection are required, the circuit must be upgraded to a newer PowerPact M or P-frame breaker.
