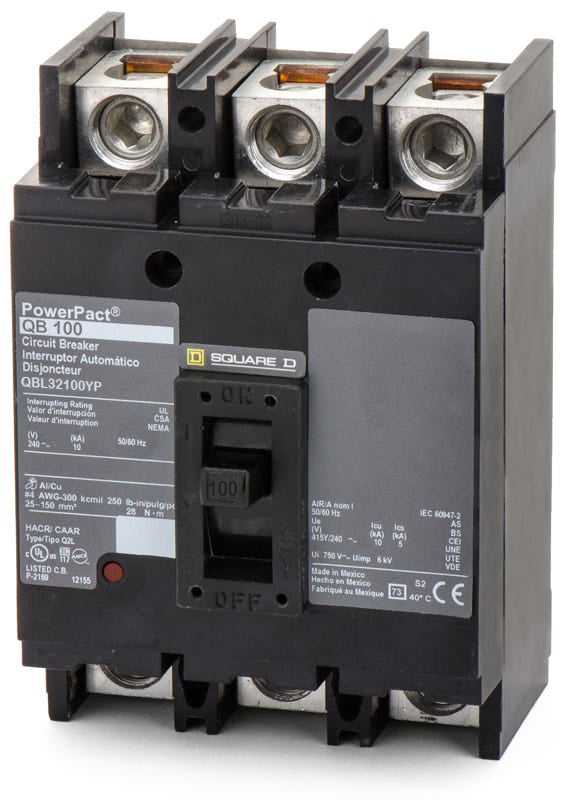

Square D QBL32100YP Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
QBL32100YP
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32100YP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32100YP - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Built for secure industrial applications, the QBL32100YP is a 3-pole, 100A MCCB that delivers reliable long-time and instantaneous (LI) thermal-magnetic protection. This unit-mount breaker is engineered for Square D Q2 enclosures, switchboards, and control panels. It easily replaces older Q23100 models in existing setups. The "YP" suffix denotes a factory-installed handle padlock attachment for safety lockouts. It provides a 10kAIC rating at 240VAC and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL32100YP |
| Series | QBL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Handle Padlock Attachment (Factory Installed) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
5 answersWhat does the YP suffix indicate on the QBL32100YP circuit breaker?
The YP suffix denotes a factory-installed handle padlock attachment. This device allows the breaker handle to be securely locked in either the ON or OFF position for lockout and tagout safety procedures.
Can the QBL32100YP replace older Square D Q2 series circuit breakers?
Yes, PowerPacT Q-frame circuit breakers are direct replacements for legacy Q2 Series devices, including the Q23100. They are designed to fit into existing Q2 enclosures, switchboards, and control panels.
Does the QBL32100YP come with lugs installed?
Yes, this feed-thru breaker includes factory-installed box lugs on both the line and load sides. The terminals accept 4 AWG to 300 kcmil aluminum or copper conductors.
Is the QBL32100YP compatible with I-Line panelboards?
No, this is a unit-mount circuit breaker designed for cabled applications or individual enclosures. It does not have the plug-on jaw configuration required for I-Line group-mounted panelboards.
What does the B in the QBL frame designation represent?
In the Square D PowerPacT Q-frame nomenclature, the B indicates the interrupting rating. A QBL breaker provides a 10 kA interrupting capacity at 240VAC, whereas QD, QG, and QJ frames offer higher fault current ratings.
